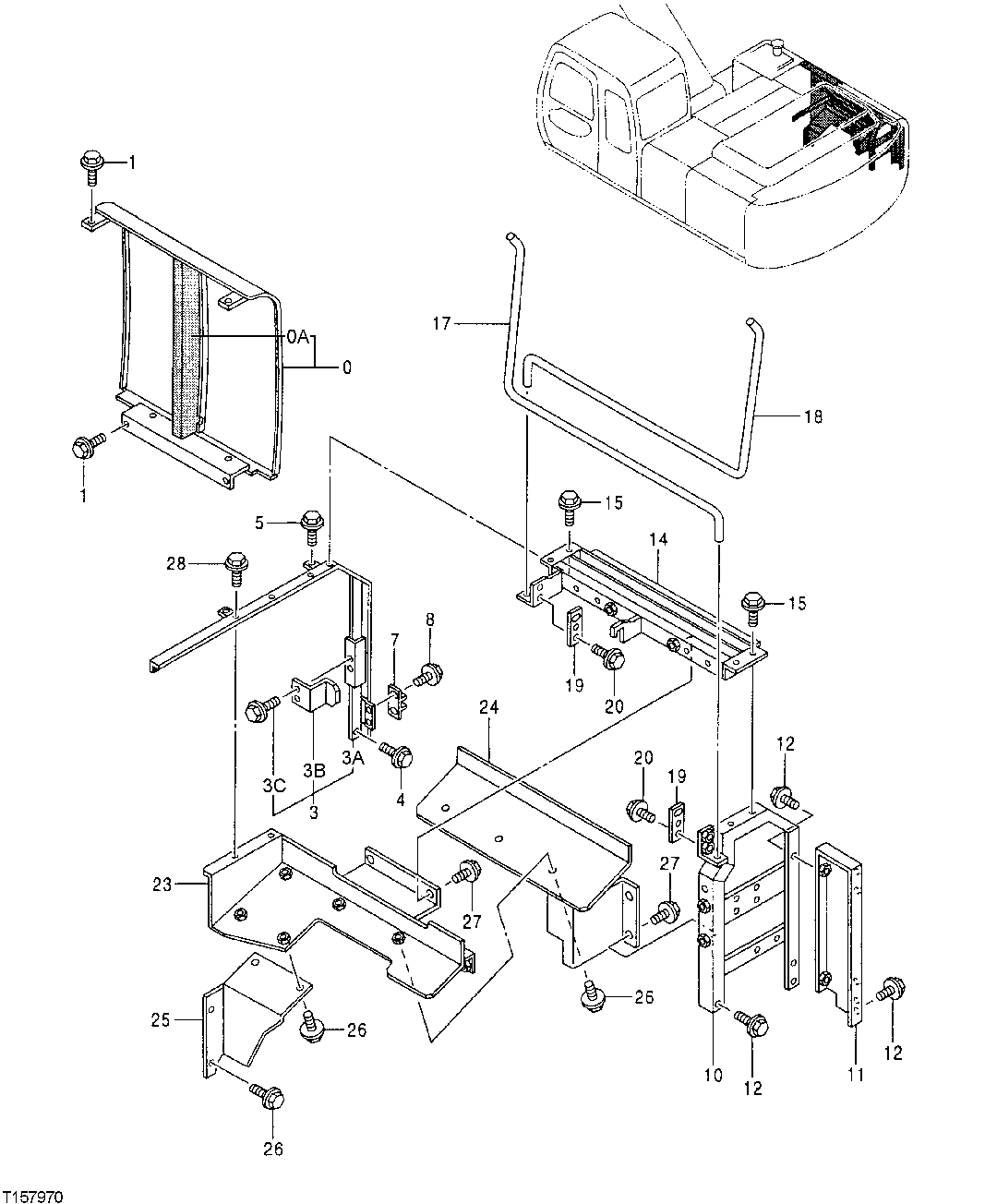

Запчасти John Deere 30LC 210 - Cover 1910 Hood Or Engine Enclosure

0

6015121J

Cover

(SUB FOR AT217847 OR 6015121)

1шт.

0A

4380805

Isolator

1шт.

1

19M7402

Cap Screw

M10 X 25

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

3

Support

1шт.

3A

7030355

Support

(SUB FOR AT217861)

1шт.

3B

4257087

Stop

(SUB FOR AT154930)

1шт.

3C

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

4

19M7662

Cap Screw

M10 X 30

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

5

19M7662

Cap Screw

M10 X 30

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

7

4175253

Bracket

(SUB FOR AT318015, AT154915)

1шт.

8

3051015

Lever

(SUB FOR AT154897)

2шт.

10

7033234

Support

(SUB FOR AT218203)

1шт.

11

7030317

Support

(SUB FOR AT217855)

1шт.

12

19M7662

Cap Screw

M10 X 30

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7028

Washer

10.500 X 20 X 2 mm

5шт.

14

7033235

Support

(SUB FOR AT218204)

1шт.

15

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

17

3052305

Bracket

(SUB FOR AT155236)

1шт.

18

3052306

Bracket

(SUB FOR AT155237)

1шт.

19

4261669

Bracket

(SUB FOR AT155284)

2шт.

20

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

23

7033733

Cover

(SUB FOR AT218205)

1шт.

24

7033741

Cover

(SUB FOR AT218206)

1шт.

25

3079129

Cover

(SUB FOR AT218207)

1шт.

26

19M7402

Cap Screw

M10 X 25

7шт.

12M7066

Lock Washer

10 mm

7шт.

24M7028

Washer

10.500 X 20 X 2 mm

7шт.

27

19M7662

Cap Screw

M10 X 30

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7028

Washer

10.500 X 20 X 2 mm

5шт.

28

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.
