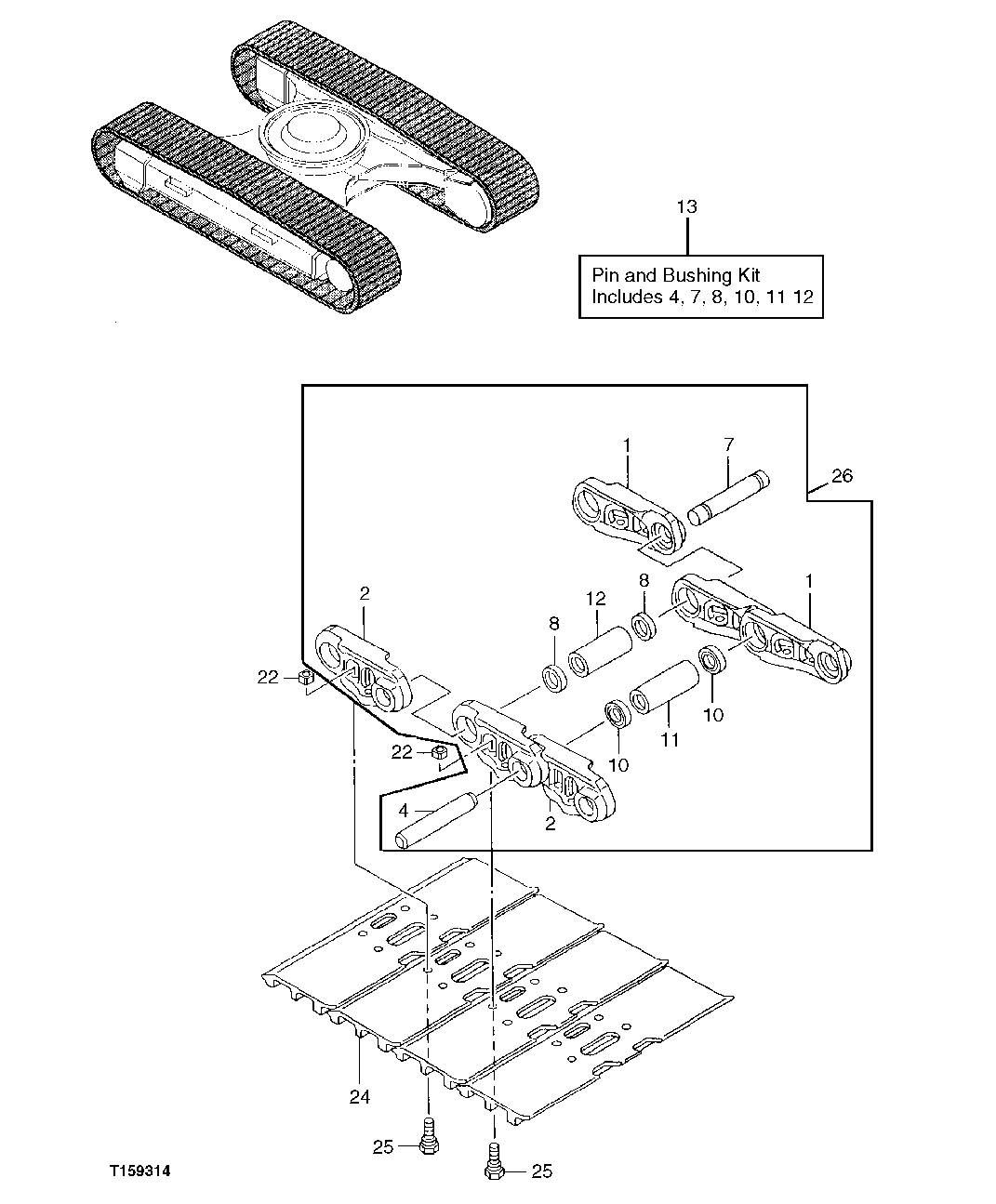

Запчасти John Deere 30LC 12 - Track Chains (600001 - ) 0130 Track Systems

1

AT219480

Strutted LINK-RH

NLA, RH, SUB 0005251R

51шт.

0005251R

Track Link

RH

51шт.

2

AT219481

Strutted LINK-LH

NLA, LH, SUB 0005252R

51шт.

0005252R

Track Link

LH

51шт.

4

AT180028

Pin Fastener

(A)

50шт.

7

AT180030

Pin Fastener

(A) Master Pin ALSO ORDER (2) AT219471 AND AT219468

1шт.

8

Spacer

Master FFSB13386 NLA, FURNISH AT219471

2шт.

AT219471

Spacer

(A) Master ALSO ORDER AT180030 AND AT219468

2шт.

10

AT180029

Seal

Dual Spring Washer

200шт.

AT186161

Seal

(A) M Seal

100шт.

11

Bushing

AT180032 NLA, FURNISH AT186162

50шт.

AT186162

Bushing

(A) ALSO ORDER (2) AT18 6161, USE W/ in.Min. SEAL

50шт.

12

Master Track Bushing

Master FFSB113387 NLA, FURNISH AT219468

1шт.

AT219468

Master Track Bushing

(A) Master ALSO ORDER ( 2) AT219471 AND AT180030

1шт.

13

AT187185

Pin & Bushing Kit

Includes Parts Marked (A)

1шт.

22

T139615

Nut

M20 Each Side Of Unit

204шт.

24

AT219482

Open Center 3 Bar Shoe

600 mm, Each Side Of Unit

51шт.

AT219483

Open Center 3 Bar Shoe

700 mm, Each Side Of Unit

51шт.

AT219484

Open Center 3 Bar Shoe

800 mm, Each Side Of Unit

51шт.

T142593

Single Bar Shoe

650 mm, Heavy Duty

51шт.

T186385

Open Center 2 Bar Shoe

700 mm, Heavy Duty

51шт.

25

T139614

Bolt

M20 X 55 Each Side Of Unit

204шт.

26

9250497R

Track Chain W/O Shoes

SUB FOR AT280815 AND AT311624, SNAP RIN G STYLE, QUANTITY OF 1 EACH SIDE OF UNIT

2шт.
