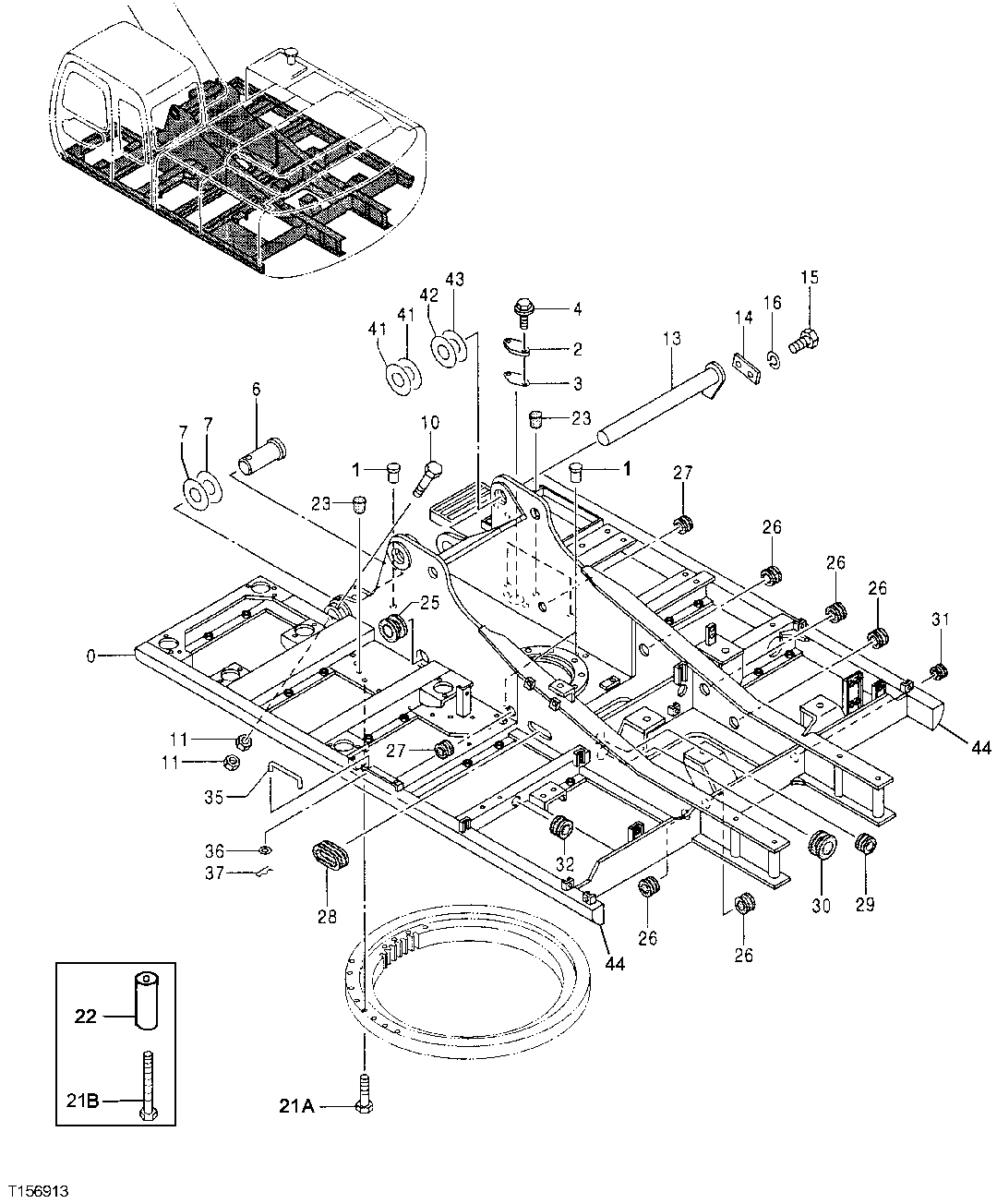

Запчасти John Deere 30LC 154 - Main Frame 1740 Frame Installation

0

AT218126

Main Frame

(CA)

1шт.

1

4355382

Pin Fastener

(SUB FOR AT217769)

3шт.

2

4255799

Cover

(SUB FOR AT154929 OR 4255799)

1шт.

3

4161735

Gasket

(SUB FOR AT130379)

1шт.

4

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

6

AT217788

Pin Fastener

2шт.

7

TH106307

Washer

4шт.

10

AT213881

Cap Screw

M20 X 165

2шт.

11

14M7277

Nut

M20

4шт.

13

AT155544

Pin

1шт.

14

4199833

Plate

(SUB FOR TH109401)

1шт.

15

19M7950

Cap Screw

M20 X 45 (SUB FOR J922045)

2шт.

16

J257220

Spring Washer

(SUB FOR AT213605)

2шт.

21A

J922203R

Cap Screw

(SUB FOR AT217706 OR J922203) (STANDAR D CAP SCREW) (SEE SERVICE NEWSLETTER 50 025) (IN SOME CASES MAY NEED AT217912)

30шт.

21B

J922212

Bolt

(SUB FOR AT217912)(SEE SERVICE NEWSLETTER 50025 FOR INFORMATI ON ON LONG CAP SCREW OR SPACER)

ARшт.

22

4381637

Spacer

(SUB FOR AT217991)(SEE SERVICE NEWSLETTER 50025 FOR INFORMATI ON ON LONG CAP SCREW AND SPACER )

ARшт.

23

99M7010

Plug

2шт.

25

4191977

Grommet

(SUB FOR TH109399)

1шт.

26

4201749

Grommet

(SUB FOR TH108205)

5шт.

27

4257181

Grommet

(SUB FOR AT155274)

2шт.

28

4275015

Bushing

(SUB FOR AT200467)

1шт.

29

4255567

Bushing

(SUB FOR AT155271, 4255530)

1шт.

30

4201986

Grommet

(SUB FOR TH109398)

1шт.

31

4210661

Grommet

(SUB FOR TH111369)

1шт.

32

4201995

Grommet

(SUB FOR TH109396)

1шт.

35

4341788

Rod

(SUB FOR AT213884 OR 4341788J)

1шт.

36

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

37

H132922

Cotter Pin

1шт.

41

4144513

Washer

105 X 200 X 1.200 mm (4.134" X 7 .874" X 3/64") (SUB FOR TH102423)

2шт.

42

4144512

Washer

105 X 200 X 2.300 mm (4.134" X 7. 874" X 0.091") (SUB FOR TH102422)

1шт.

43

4144511

Washer

105 X 200 X 3.200 mm (4.134" X 7. 874" X 0.126") (SUB FOR TH102421)

1шт.

44

4455820

Frame

1шт.
