Запчасти John Deere 30LC 141 - Instrument Panel Relays 1674 Wiring Harness And Switches

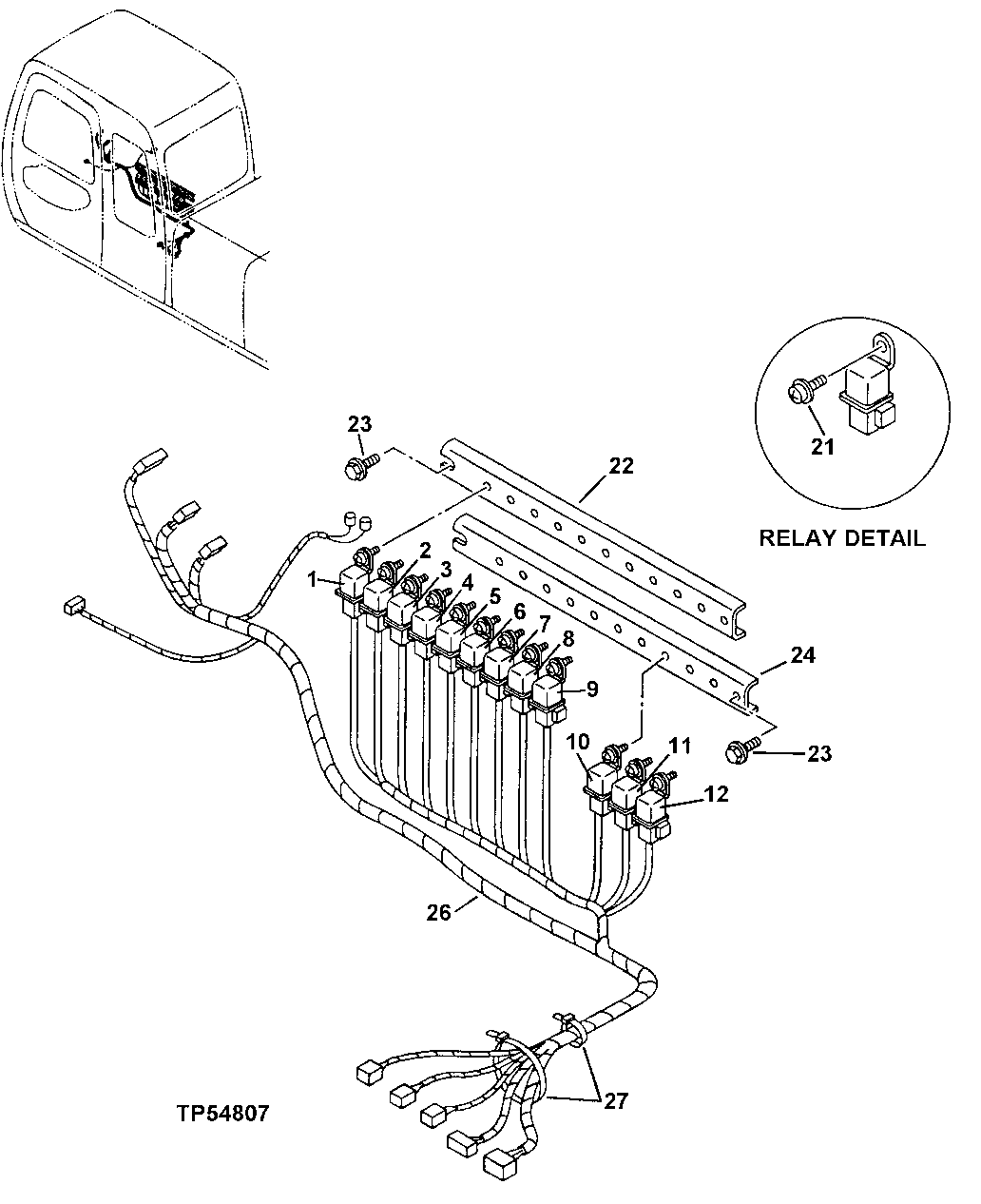

Схема запчастей John Deere 30LC - 141 - Instrument Panel Relays 1674 Wiring Harness And Switches

Артикул

Название

Примечание

Количество

1

4251588

Relay

SUB FOR AT154924 Wiper Green

1шт.

4414207

Relay

SUB FOR AT186647 Wiper Blue

1шт.

2

4251588

Relay

SUB FOR AT154924 Wiper Green

1шт.

4414207

Relay

SUB FOR AT186647 Wiper Blue

1шт.

3

4251588

Relay

SUB FOR AT154924 Wiper Green

1шт.

4414207

Relay

SUB FOR AT186647 Wiper Blue

1шт.

4

4251588

Relay

SUB FOR AT154924 Wiper Green

1шт.

4414207

Relay

SUB FOR AT186647 Wiper Blue

1шт.

5

4251588

Relay

SUB FOR AT154924 Horn Green

1шт.

4414207

Relay

SUB FOR AT186647 Horn Blue

1шт.

6

4251588

Relay

SUB FOR AT154924 Work Light Green

1шт.

4414207

Relay

SUB FOR AT186647 Work Light Blue

1шт.

7

4251588

Relay

SUB FOR AT154924 Work Light Green

1шт.

4414207

Relay

SUB FOR AT186647 Work Light Blue

1шт.

8

4251588

Relay

SUB FOR AT154924 Windshield Washer Green

1шт.

4414207

Relay

SUB FOR AT186647 Windshield Washer Blue

1шт.

9

4251588

Relay

SUB FOR AT154924 Load Dump Green

1шт.

4414207

Relay

SUB FOR AT186647 Load Dump Blue

1шт.

10

4251588

Relay

SUB FOR AT154924 Air Conditioner Green

1шт.

4414207

Relay

SUB FOR AT186647 Air Conditioner Blue

1шт.

11

4251588

Relay

SUB FOR AT154924 Air Conditioner Green

1шт.

4414207

Relay

SUB FOR AT186647 Air Conditioner Blue

1шт.

12

4251588

Relay

SUB FOR AT154924 Air Conditioner Green

1шт.

4414207

Relay

SUB FOR AT186647 Air Conditioner Blue

1шт.

21

J900614

Bolt

SUB FOR TH104056

12шт.

12M7006

Lock Washer

6 mm

12шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

12шт.

22

8073968

Bracket

SUB FOR AT214362

1шт.

23

19M7932

Cap Screw

M8 X 16

4шт.

Washer

12M7065 NLA

4шт.

24

8073968

Bracket

SUB FOR AT214372; SUB FOR AT214362

1шт.

26

0002290

Wiring Harness

SUB FOR AT215083 Use With Green Relays

1шт.

0003461

Wiring Harness

SUB FOR AT186648 Use With Blue Relays

1шт.

27

H77698

Tie Band

2шт.

Выбрано товаров: 34
