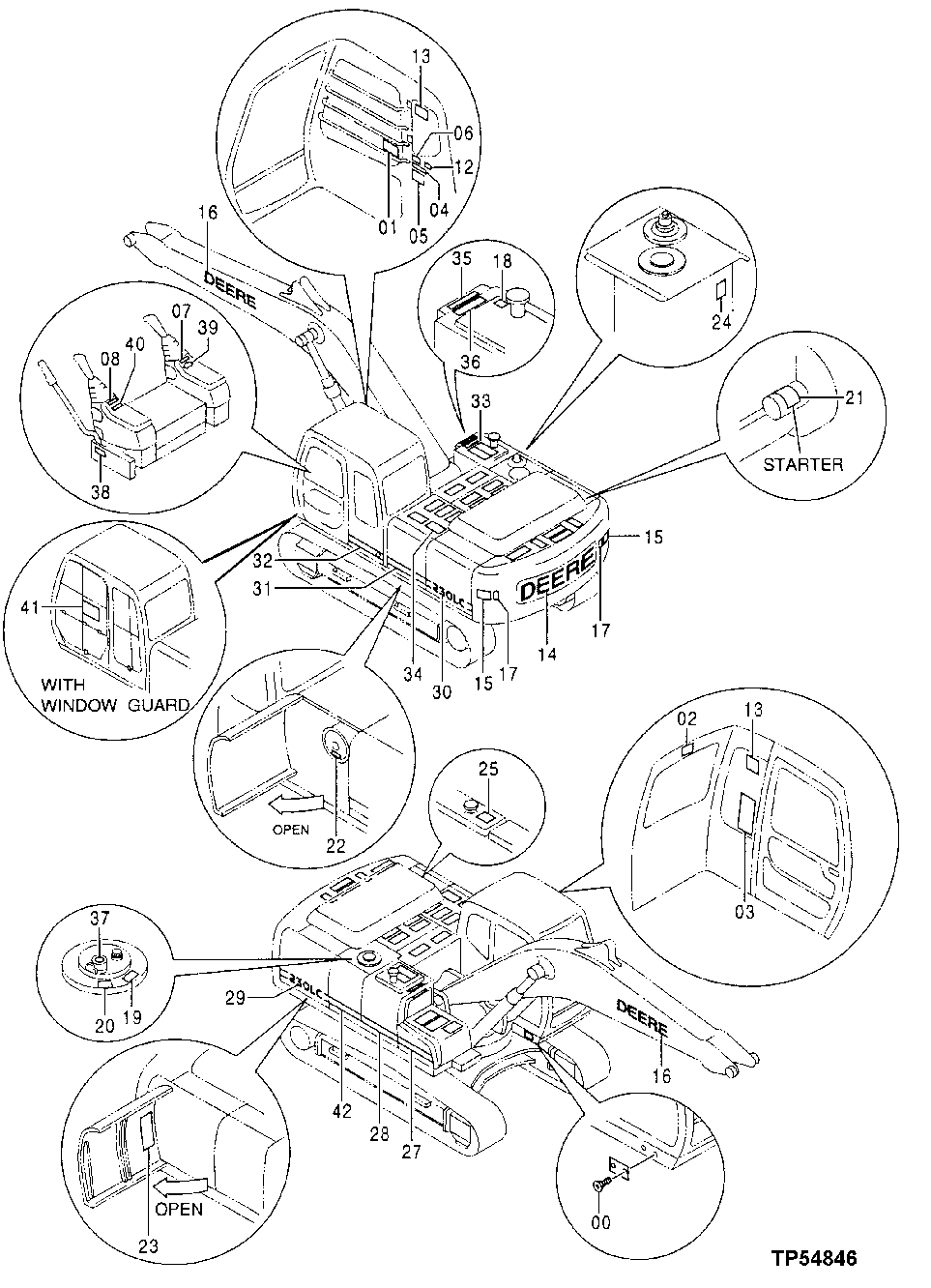

Запчасти John Deere 30LC 132 - Labels and Decals 1320 Vehicle Finish & Trim

0

37H131

Screw

0.140" X 3/8"

2шт.

1

T159888

Label

Start / Stop Operation

1шт.

2

T146664

Safety Sign

Caution - Front Window Lock

1шт.

3

Label

( T162054 NLA) (LIFT C APACITY CHART) English

1шт.

T162751

Label

(LIFT CAPACITY CHART) Spanish

1шт.

T162771

Label

(LIFT CAPACITY CHART) French

1шт.

4

T146668

Safety Sign

Warning - Avoid Crushing

1шт.

5

T159887

Safety Sign

Caution English

1шт.

T162754

Label

Caution Spanish

1шт.

T162774

Label

Caution French

1шт.

6

T146667

Safety Sign

Danger - Electrocution

1шт.

7

T159842

Label

Right Control Lever - SAE Pattern White Background

1шт.

T159843

Label

Right Control Lever - John De ere Pattern Yellow Background

1шт.

8

T159841

Label

Left Control Lever - SAE Pattern White Background

1шт.

T159844

Label

Left Control Lever - John De ere Pattern Yellow Background

1шт.

12

T190393

Label

(SUB FOR T157809) Important - Break Window For Secondary Exit

1шт.

13

T160538

Label

Leaping Deere

2шт.

14

T160684

Label

Deere - On Counterweight

1шт.

15

T145893

Safety Sign

Stay Clear

2шт.

16

T162041

Label

Deere - On Boom

2шт.

17

JD5909

Reflector

(SUB FOR TH101411) Red Reflector Tape

2шт.

18

T79632

Label

Diesel Only

1шт.

19

T101942

Label

Hydraulic Oil

1шт.

20

P63448

Label

(SUB FOR AT155733) Pump Bleed Information

1шт.

21

T146102

Label

Bypass Start

1шт.

22

R56902

Label

Dry Air Cleaner

1шт.

23

T162033

Label

Periodic Maintenance Chart English

1шт.

T163620

Label

Periodic Maintenance Chart Spanish

1шт.

T163604

Label

Periodic Maintenance Chart French

1шт.

24

T149983

Label

Important - Oil Level

1шт.

25

T152657

Safety Sign

Caution - Radiator

1шт.

27

T160711

Label

(BLACK STRIPE - FRONT RIGHT SIDE)

1шт.

28

T161920

Label

Stripe - Right Side

1шт.

29

T161917

Label

(MODEL DESIGNATION STRIPE - RIGHT REAR)

1шт.

30

T161916

Label

(MODEL DESIGNATION STRIPE - LEFT REAR)

1шт.

31

T161918

Label

Stripe - Left Side

1шт.

32

T161536

Label

Stripe - Left Side

1шт.

33

H21259

Mat

Anti-Skid

21шт.

34

H21259

Mat

Anti-Skid

1шт.

35

H21259

Mat

Anti-Skid

1шт.

36

H21259

Mat

(SUB FOR TH110224) Anti-Skid

1шт.

37

T147009

Label

Hydraulic Reservoir Compartment Cover

1шт.

38

4299059

Label

(SUB FOR T138886) Hydra ulic Control Lever Lock

1шт.

39

4264805

Label

(SUB FOR AT155730) Ignition Key Switch

1шт.

40

4288971

Label

(SUB FOR AT155729) Eth er Aid / Motion Cancel

1шт.

41

T163979

Label

(SUB FOR T161729) Window Guard Installation

1шт.

42

T161919

Label

Stripe - Right Side

1шт.
