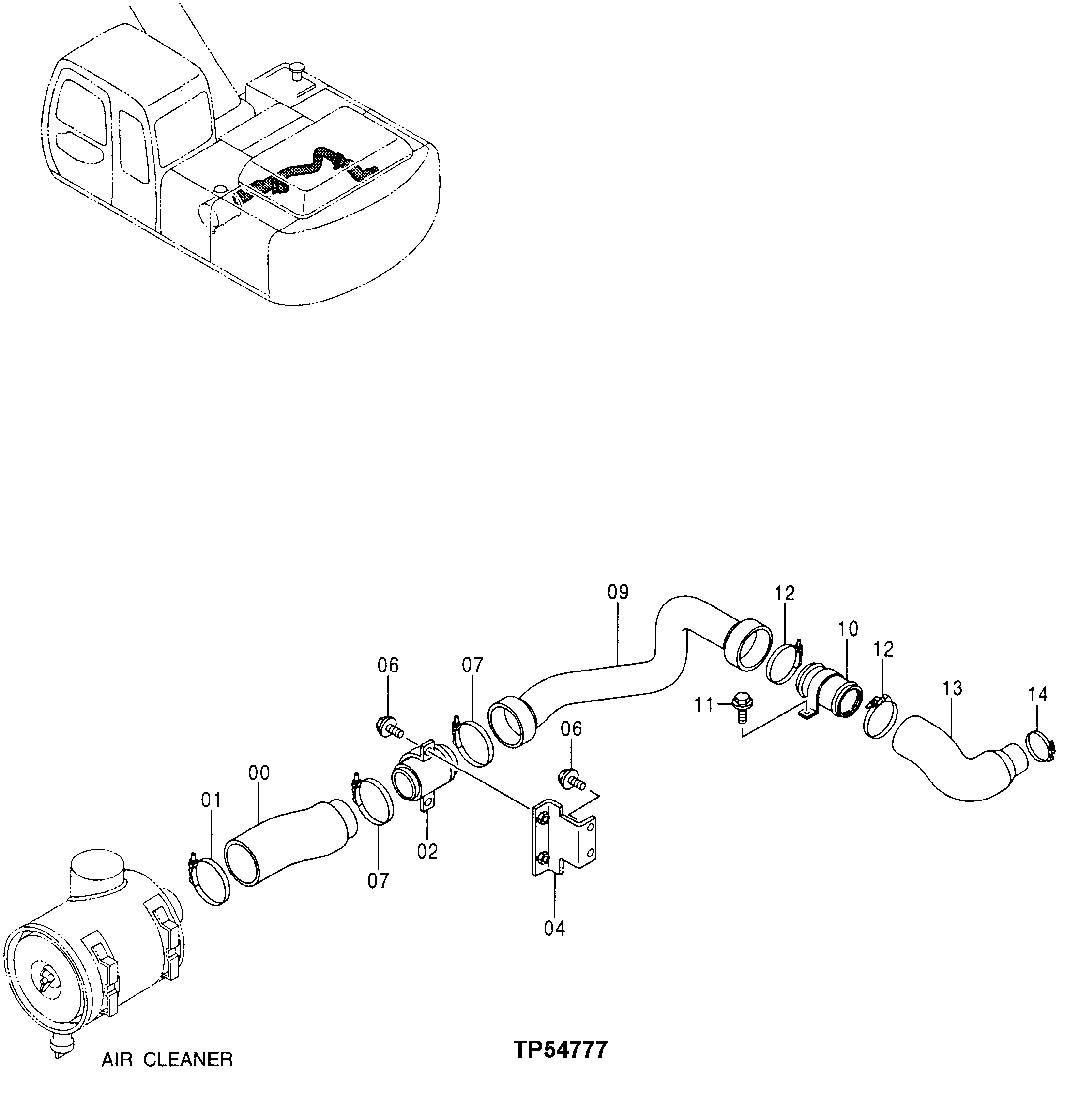

Запчасти John Deere 30LC 126 - Air Cleaner Support 0520 Intake System

0

3078760

Hose

(SUB FOR AT218155)

1шт.

1

AT39390

Hose Clamp

(SUB FOR AT53439)

1шт.

2

8068938

Line

(SUB FOR AT218156)

1шт.

4

9747996

Bracket

(SUB FOR AT218157)

1шт.

6

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

7

RE19429

Clamp

2шт.

9

2040762

Hose

(SUB FOR AT218158)

1шт.

10

8067675

Line

(SUB FOR AT215120)

1шт.

11

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12

4282489

Hose Clamp

(SUB FOR AT215499)

2шт.

13

3079135

Hose

(SUB FOR AT218159)

1шт.

14

AT50923

Hose Clamp

1шт.
