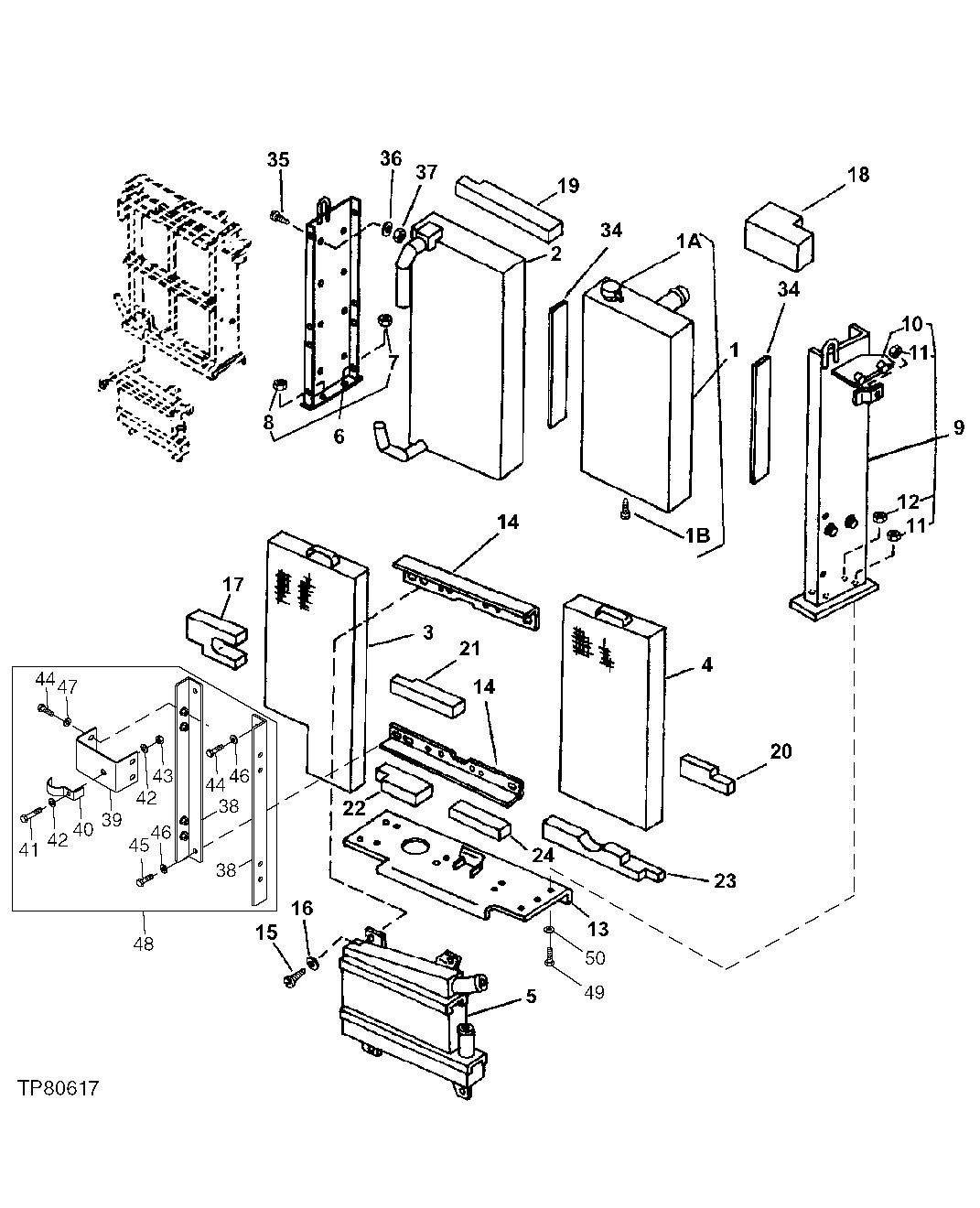

Запчасти John Deere 30LC 118 - Radiator 0510 Engine Cooling Systems

1

AT191239

Radiator

(SUB FOR AT176947)

1шт.

1A

AT173610

Filler Cap

1шт.

1B

AT13740

Drain Valve

1шт.

2

AT191088

Oil Cooler

(SUB FOR AT176948) (ALSO ORDER AT19 1195) (USE IF AVAILABLE) (IF AT17694 8 NOT AVAILABLE, THEN SUB AT191088)

1шт.

AT191088

Oil Cooler

1шт.

3

AT177463

Screen

1шт.

4

AT177464

Screen

1шт.

5

AT176949

Heat Exchanger

1шт.

6

AT177467

Support

1шт.

7

14M7275

Nut

M12

1шт.

8

14M7276

Nut

M16

2шт.

9

AT177468

Support

1шт.

10

T72414

Bushing

2шт.

11

14M7276

Nut

M16

3шт.

12

14M7275

Nut

M12

2шт.

13

AT177486

Channel

1шт.

14

AT177469

Angle

2шт.

15

19M7784

Screw

M10 X 20

4шт.

16

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

17

T160102

Isolator

1шт.

18

T160103

Isolator

1шт.

19

T160104

Isolator

1шт.

20

T160105

Isolator

1шт.

21

T160106

Isolator

1шт.

22

T160600

Pad

1шт.

23

T160598

Pad

1шт.

24

T160599

Pad

1шт.

25

T166733

Channel

1шт.

34

Weatherstrip

Furnish ( AT66778 CTL) Bulk Material

2шт.

35

19M7881

Screw

M8 X 20

8шт.

36

24M7238

Washer

8.700 X 17 X 2 mm

8шт.

37

14M7273

Nut

M8

8шт.

38

AT186840

Angle

2шт.

39

T166733

Channel

(NOT REQUIRED W/ AT191088) Oil Cooler

1шт.

40

4053698

Clamp

(SUB FOR TH101936)

1шт.

41

19M8088

Cap Screw

M12 X 75

1шт.

42

24M7240

Washer

13 X 25 X 3 mm

2шт.

43

14M7319

Lock Nut

M12

1шт.

44

19M7784

Screw

M10 X 20

6шт.

45

19M7785

Screw

M10 X 25

2шт.

46

24M7239

Washer

10.700 X 21 X 2.500 mm

4шт.

47

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

48

Kit

Oil Cooler (FURNISH AT191195)

1шт.

Oil Cooler

Oil Cooler ( AT191195 NLA)

1шт.

49

19M7789

Screw

M12 X 30

7шт.

50

24M7240

Washer

13 X 25 X 3 mm

7шт.
