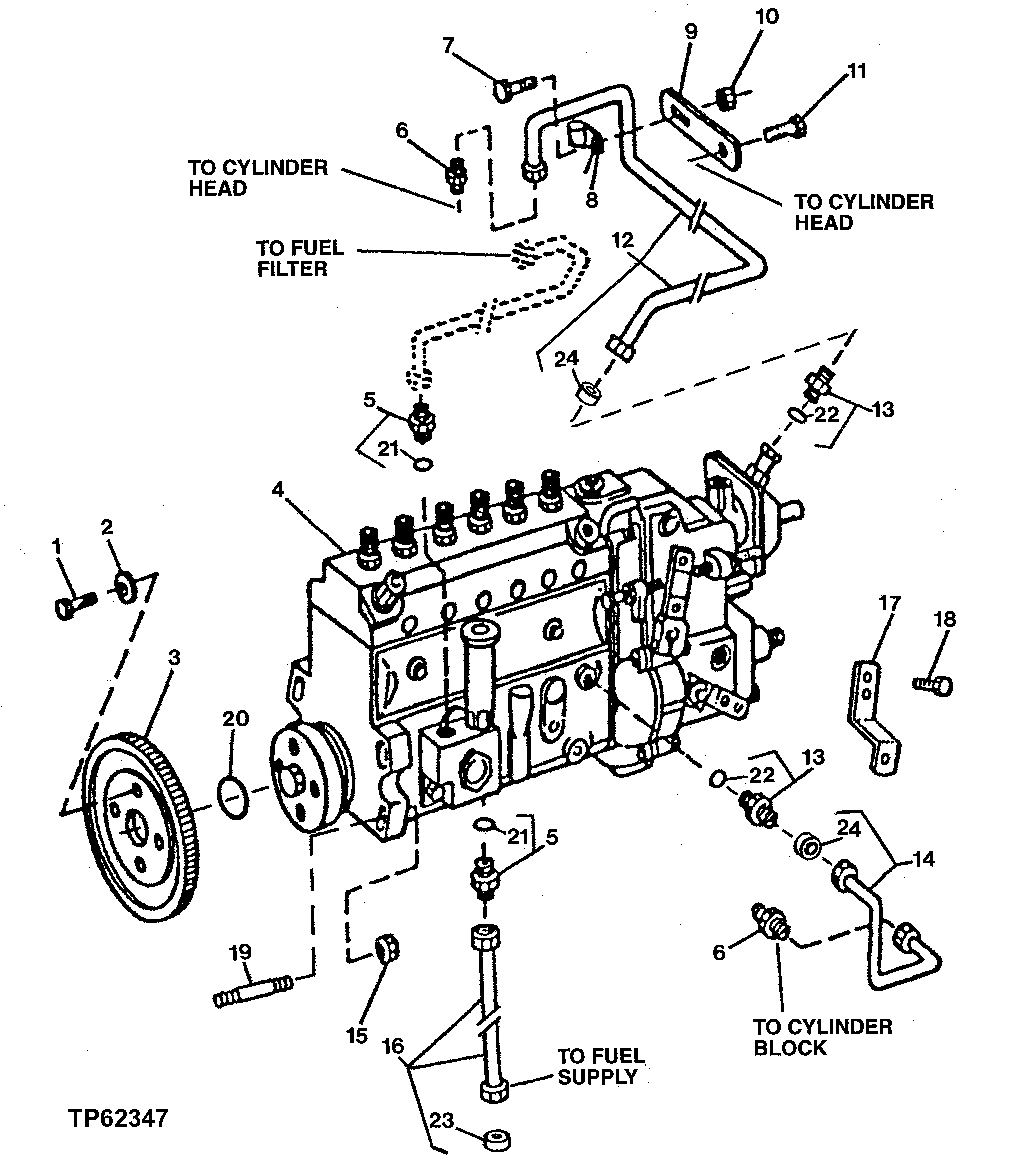

Запчасти John Deere 30LC 91 - Fuel Injection Pump / Lines ( - 829272) 0413B Fuel Injection System PE6068HT051 PE6068HT051

1

19H3336

Screw

3/8" X 7/8"

4шт.

2

R63845

Washer

10.500 X 17.500 X 3 mm ( 0.413" X 0.689" X 0.118")

4шт.

3

R500084

Gear

60 TEETH

1шт.

4

RE59945

Fuel Injection Pump

( AS2500) (DENSO 24-VOLT)

1шт.

SE500843

Fuel Injection Pump Reman

(REMAN FOR RE59945)

1шт.

5

RE60031

Fitting

2шт.

6

R63604

Fitting

2шт.

7

19M7865

Screw

M8 X 16

1шт.

8

T74410

Clamp

1шт.

9

R56588

Strap

1шт.

10

14M7298

Flange Nut

M8

1шт.

11

19M8324

Cap Screw

M10 X 16

1шт.

12

RE60194

Aneroid Line

1шт.

RE70285

Aneroid Line

1шт.

RE506237

Aneroid Line

1шт.

13

RE60028

Fitting

2шт.

14

RE60064

Oil Line

Lube

1шт.

15

14M7296

Flange Nut

M10

4шт.

16

RE44843

Fuel Line

1шт.

R67092

Sealing Washer

1шт.

17

R133025

Lever

1шт.

18

19M8826

Screw

M6 X 16

2шт.

19

R134212

Stud

4шт.

20

R73864

O-Ring

75 X 3 mm (2-61/64" X 0.118")

1шт.

21

51M7041

O-Ring

11.300 X 2.200 mm

2шт.

22

51M7039

O-Ring

8.100 X 1.600 mm

2шт.

23

R67092

Sealing Washer

2шт.

24

R51936

Sealing Washer

4шт.
