Запчасти John Deere 30LC 69 - Engine Major Overhaul Gasket Set and Engine Overhaul Kit (046291 - ) 0452A Gasket Replacement Kits TO6068HT051 TO6068HT051

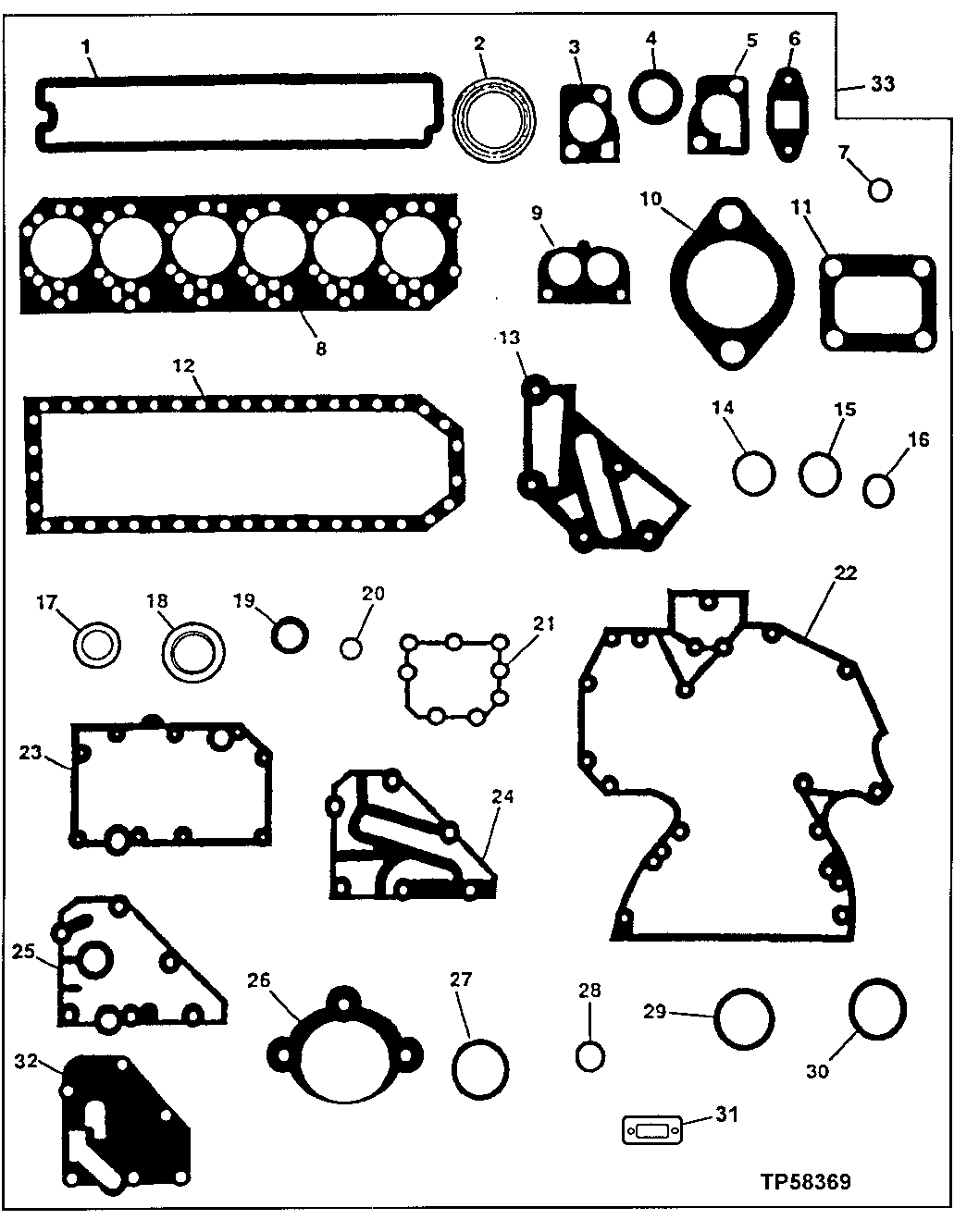

Схема запчастей John Deere 30LC - 69 - Engine Major Overhaul Gasket Set and Engine Overhaul Kit (046291 - ) 0452A Gasket Replacement Kits TO6068HT051 TO6068HT051

Артикул

Название

Примечание

Количество

1

R123543

Gasket

Rocker Arm Cover Gasket

1шт.

RE520540

Gasket Kit

High Temperature Gasket

1шт.

2

R90658

Gasket

Exhaust Manifold

6шт.

3

R502814

Gasket

(SUB FOR R135896) Thermostat Cover

1шт.

4

R123226

Gasket

Water Bypass Tube

2шт.

5

R123345

Gasket

Thermostat Housing

1шт.

6

R123570

Gasket

Turbocharger Oil Outlet Tube

1шт.

7

R123575

Gasket

Rocker Arm Cover Hold Down Stud

4шт.

8

R116516

Gasket

Cylinder Head

1шт.

9

R501373

Gasket

Thermostat Cover

1шт.

10

R81275

Gasket

Air Inlet

1шт.

11

R123572

Gasket

Turbocharger To Exhaust Manifold

1шт.

12

R123354

Gasket

Engine Oil Pan

1шт.

13

R501428

Gasket

Coolant Passage Adapter

1шт.

14

R75892

O-Ring

Oil Pump Tube Connector

1шт.

15

R97185

O-Ring

Oil Pump Outlet Tube To Cover

2шт.

16

R61871

O-Ring

Oil Pump Intake Tube

1шт.

17

A4827R

Washer

Oil Pressure Regulator Plug

1шт.

18

RE44574

Seal

Rear Oil Seal

1шт.

19

RE516340

Seal Kit

Front Oil Seal (MARKED RE52346 OR RE505515) (SUB FOR RE59810)

1шт.

20

R123273

O-Ring

Fuel Transfer Pump

1шт.

21

R123417

Gasket

Water Pump

1шт.

22

R136515

Gasket

Timing Gear Cover

1шт.

23

R123501

Gasket

Oil Cooler Housing

1шт.

24

R123504

Gasket

Remote Oil Filter Adapter

1шт.

25

R123525

Gasket

Oil Filter Header

ARшт.

26

R53108

Gasket

Starter Motor

1шт.

27

R72328

O-Ring

Remote Oil Filter Tubes

4шт.

28

R89944

O-Ring

Water Pump Inlet

1шт.

29

R61105

O-Ring

Connector Tube To Timing Gear Cover

2шт.

30

T122075

O-Ring

Oil Cooler To Housing

2шт.

31

R136495

Gasket

Oil Fill Cover

2шт.

32

R500374

Gasket

Oil Filter Header

1шт.

33

RE501456

Gasket Kit

Engine Major Overhaul

1шт.

RE515749

Engine Overhaul Kit

Not Illustrated (SUB FOR RE66097 (INCL UDES ENGINE MAJOR OVERHAUL GASKET SET, ENGINE CONNECTING ROD BEARINGS, ENGINE MAIN BEARINGS, AND PISTON AND CYLINDER LINER KITS) (ORDER ONE KIT PER ENGINE))

1шт.

Выбрано товаров: 35
