Запчасти John Deere 30CLC 67 - 9901 ENGINE GASKET SET, OVERHAUL 0400 Engine 6068HT054-RE507967 6068HT054

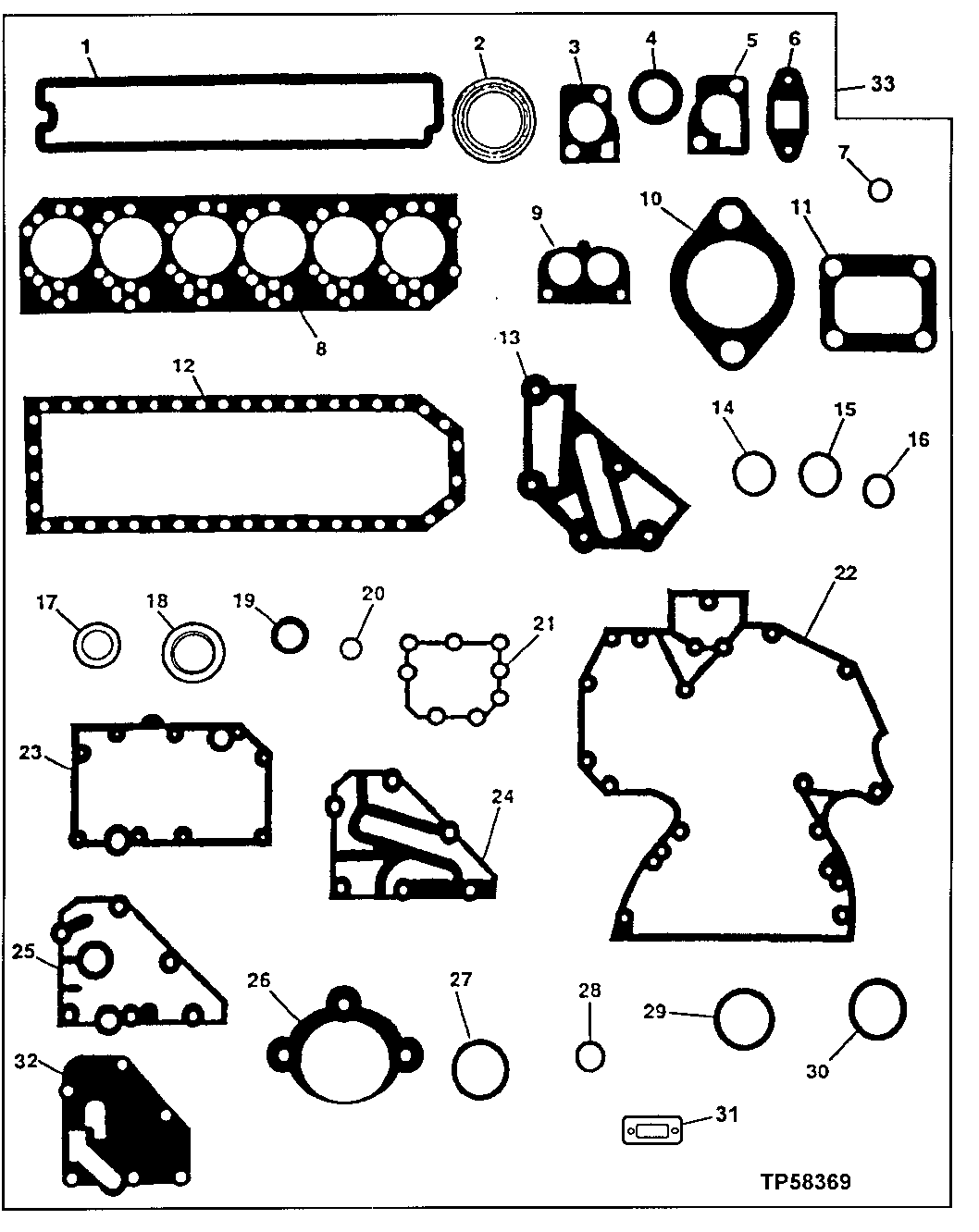

Схема запчастей John Deere 30CLC - 67 - 9901 ENGINE GASKET SET, OVERHAUL 0400 Engine 6068HT054-RE507967 6068HT054

Артикул

Название

Примечание

Количество

1

R123543

Gasket

ROCKER ARM COVER

1шт.

RE520540

Gasket Kit

HIGH TEMPERATURE

1шт.

2

R90658

Gasket

EXHAUST MANIFOLD

6шт.

3

R502814

Gasket

(SUB FOR R135896)THERMOSTAT COVER

1шт.

4

R123226

Seal

WATER BY-PASS TUBE

2шт.

5

R123345

Gasket

THERMOSTAT HOUSING

1шт.

6

R123570

Gasket

TURBOCHARGER OIL OUTLET TUBE

1шт.

7

R123575

O-Ring

ROCKER ARM COVER HOLD DOWN STUD

4шт.

8

R116516

Engine Cylinder Head Gasket

CYLINDER HEAD

1шт.

9

R501373

Gasket

(SUB FOR R54638)THERMOSTAT COVER

1шт.

10

R81275

Gasket

AIR INLET

1шт.

11

R123572

Gasket

TURBOCHARGER TO EXHAUST MANIFOLD

1шт.

12

R123354

Gasket

ENGINE OIL PAN

1шт.

13

R501428

Gasket

(SUB FOR R123502)COOLANT PASSAGE ADAPTER

1шт.

14

R75892

O-Ring

OIL PUMP TUBE CONNECTOR

1шт.

15

R97185

O-Ring

OIL PUMP OUTLET TUBE TO COVER

1шт.

16

R61871

O-Ring

OIL PUMP INTAKE TUBE

1шт.

17

A4827R

Washer

OIL PRESSURE REGULATOR PLUG

1шт.

18

RE44574

Seal

REAR OIL SEAL

1шт.

19

RE516340

Seal

(MARKED RE52346 OR RE505515 ) (SUB FOR RE59810)FRONT OIL SEAL

1шт.

20

R123273

O-Ring

FUEL TRANSFER PUMP

1шт.

21

R123417

Gasket

WATER PUMP

1шт.

22

R136516

Gasket

TIMING GEAR COVER

1шт.

R136515

Gasket

TIMING GEAR COVER FOR AUXILLARY DRIVE . NOT I (SUB FOR R123425 AND R134533)

1шт.

23

R123501

Gasket

OIL COOLER HOUSING

1шт.

24

R502864

Gasket

REMOTE OIL FILTER ADAPTER

1шт.

25

R123525

Gasket

OIL FILTER HEADER

ARшт.

26

R53108

Gasket

STARTING MOTOR

1шт.

27

R72328

O-Ring

REMOTE OIL FILTER TUBES

4шт.

28

R89944

O-Ring

WATER PUMP INLET

1шт.

29

R61105

O-Ring

CONNECTOR TUBE TO TIMIONG GEAR COVER

2шт.

30

T122075

O-Ring

OIL COOLER TO HOUSING

2шт.

31

R136495

Gasket

OIL FILL COVER

2шт.

32

R500374

Gasket

OIL FILTER HEAD

1шт.

33

RE501456

Gasket Kit

(SUB FOR RE66087)ENGINE MAJOR OVERHAUL

1шт.

RE507864

Engine Overhaul Kit

(NOT ILLUSTRATED) (ORDER ONE KIT PER ENGINE) INCLUDES ENGIN E MAJOR OVERHAUL GASKET SET, C O

1шт.

Выбрано товаров: 36
