Запчасти John Deere 30CLC 308 - Two Solenoid Auxiliary Control (Use w/ Hand Controller) 3363 Lines, Hoses & Fittings

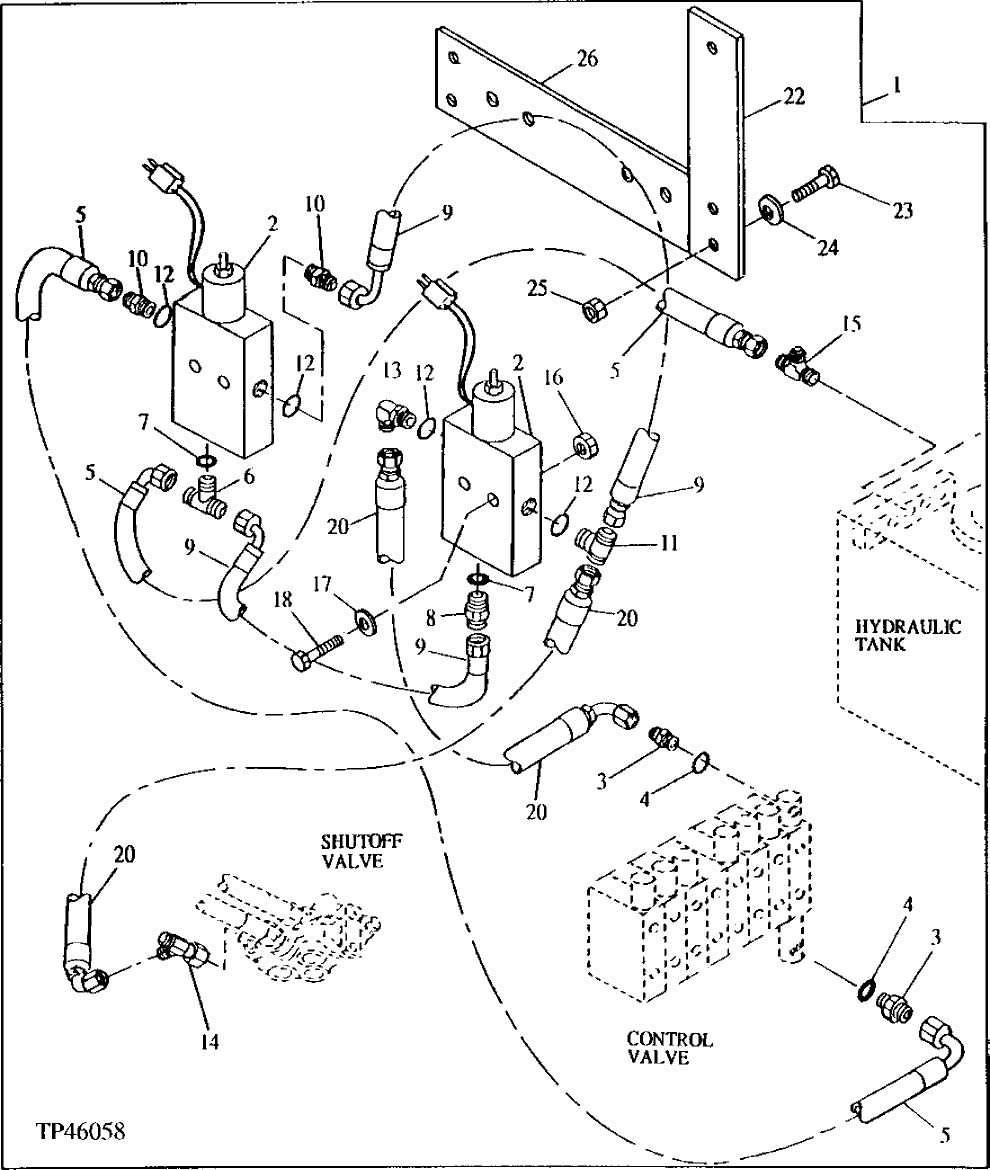

Схема запчастей John Deere 30CLC - 308 - Two Solenoid Auxiliary Control (Use w/ Hand Controller) 3363 Lines, Hoses & Fittings

Артикул

Название

Примечание

Количество

1

AT165026

Control

NLA, WHOLE GOODS

1шт.

2

AT306723

Elec.Proportional Valve

(SUB FOR AT115437, AT116486, AT 140041) Includes Electrical Coil

2шт.

3

AT131445

Adapter Fitting

2шт.

4

CH11570

O-Ring

2шт.

5

AT71732

Hydraulic Hose

9/16" X 1422 mm (56") X 9/16"

2шт.

6

AT42939

Tee Fitting

1шт.

7

R26375

O-Ring

16.358 X 2.210 mm (0.644" X 0.087")

2шт.

8

R36426

Fitting

1шт.

9

AT58849

Hydraulic Hose

9/16" X 406 mm (16") X 9/16"

2шт.

10

R27212

Fitting

2шт.

11

AT36465

Tee Fitting

1шт.

12

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

4шт.

13

AT35121

Elbow Fitting

1шт.

14

AT36921

Tee Fitting

1шт.

15

AT36921

Tee Fitting

1шт.

16

14M7167

Lock Nut

M10

4шт.

17

24M7346

Washer

11 X 20 X 2 mm

4шт.

18

19M7808

Screw

M10 X 65

4шт.

19

R44302

Tie Band

(USE WHERE REQUIRED)

6шт.

20

AT71737

Hydraulic Hose

9/16" X 1612 mm (63-1/2") X 9/16"

1шт.

22

T146100

Support

1шт.

23

19M7881

Screw

M8 X 20

5шт.

24

24M7336

Washer

9 X 16 X 1.600 mm

5шт.

25

14M7273

Nut

M8

5шт.

26

T149117

Strap

1шт.

90

AT172037

Clamp

NLA, WHOLE GOODS Hydraulic Thumb Kit Contains All Components On This Page A dditional Components On Separate Pages

1шт.

Выбрано товаров: 26
