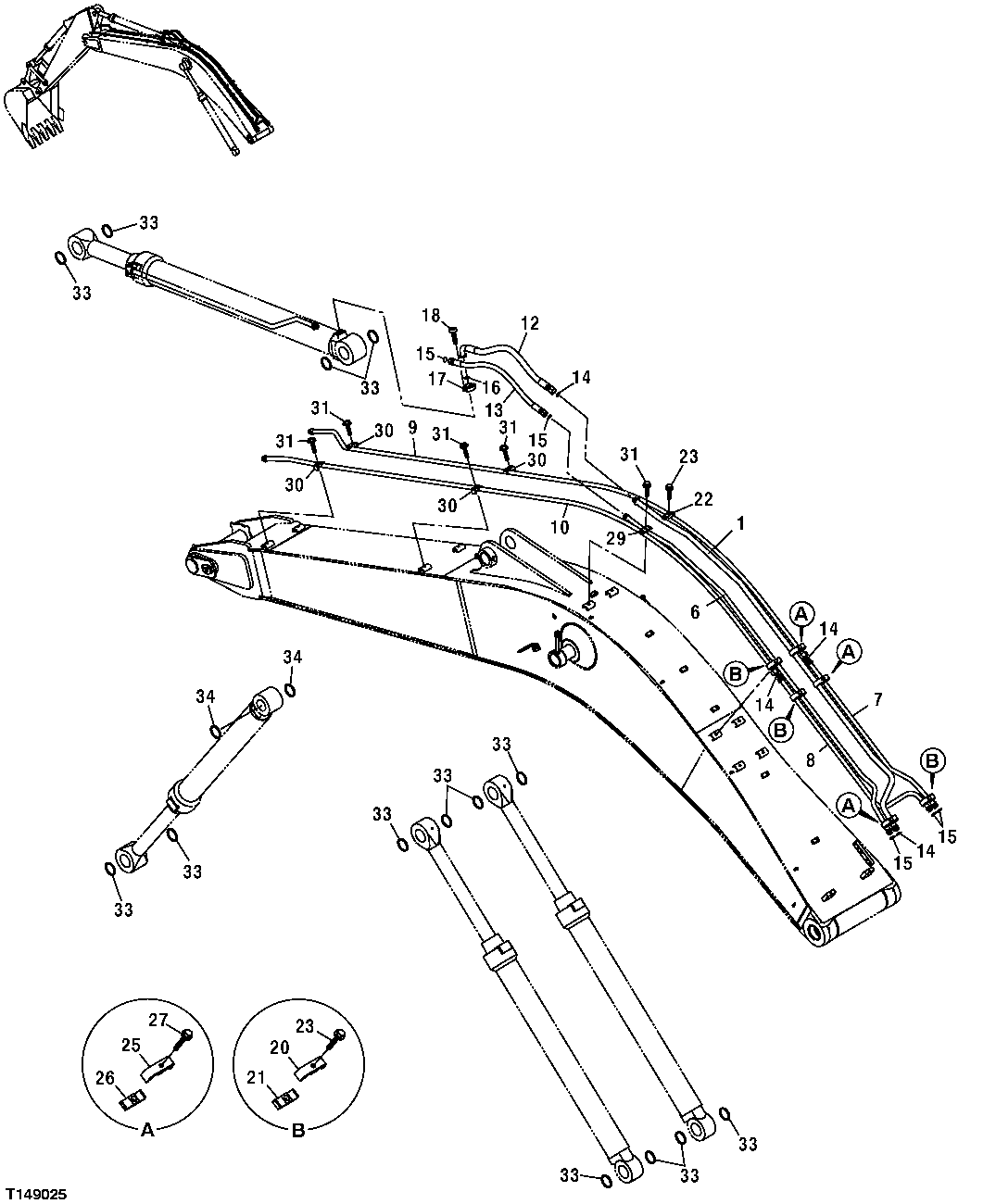

Запчасти John Deere 30CLC 299 - BOOM HYDRAULIC PLUMBING 3363 Lines, Hoses & Fittings

1

8063070

Oil Tube

SUB FOR AT217879

1шт.

6

8063068

Oil Tube

SUB FOR AT217878

1шт.

7

9744879G

Oil Line

SUB FOR AT217908 OR 9744879

1шт.

8

9744880

Oil Tube

SUB FOR AT217909

1шт.

9

8063077G

Oil Line

SUB FOR AT217880 OR 8063077

1шт.

10

8063078G

Oil Line

SUB FOR AT217881 OR 8063078

1шт.

12

AT131302

Hydraulic Hose

1" X 920 mm (36-1/4") X 36.5252"

1шт.

13

AT131303

Hydraulic Hose

30.1752" X 900 mm (35-1/2") X 30.1752"

1шт.

14

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

15

T77858

O-Ring

5шт.

16

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

17

4085560

Flange Fitting

SUB FOR TH101960

2шт.

18

19M9163

Screw

M12 X 40 SUB FOR J781240

4шт.

20

Clamp

4285723 NLA; ORDER 4189859 Rubber

3шт.

4189859

Clamp

Steel

3шт.

21

AT318021

Clamp

SUB FOR 4285722 OR AT155739

3шт.

23

19M7753

Cap Screw

M12 X 70

4шт.

25

4153488

Clamp

SUB FOR 4285725 OR AT155351

3шт.

26

AT309596

Clamp

SUB FOR AT155350 OR 4285724

3шт.

27

19M8088

Cap Screw

M12 X 75

3шт.

29

Clamp

4285723 NLA; ORDER 4189859 Rubber

1шт.

4189859

Clamp

Steel

1шт.

30

4190126

Clamp

SUB FOR TH109830

4шт.

31

19M7363

Cap Screw

M12 X 60

5шт.

33

TH102445

Seal

14шт.

34

TH102446

Seal

2шт.
