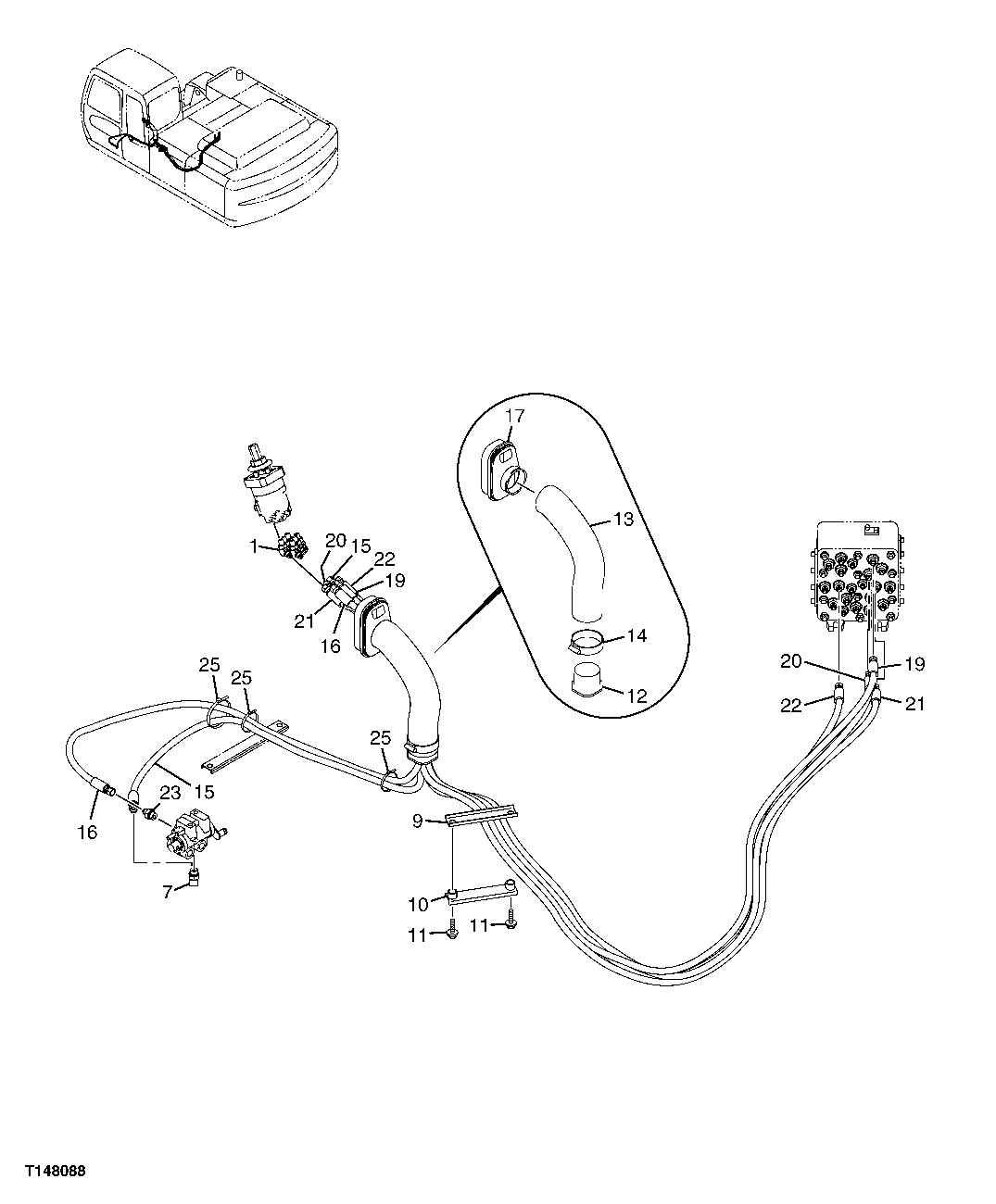

Запчасти John Deere 30CLC 294 - PILOT HYDRAULIC LINES 3363 Lines, Hoses & Fittings

1

A852223

Elbow Fitting

(SUB FOR THA852223)

6шт.

M800650

Packing

1шт.

7

P67989

Elbow Fitting

1шт.

CH11570

O-Ring

1шт.

9

4412666

Clamp

(SUB FOR TH4412666)

1шт.

10

9751787

Clamp

(SUB FOR TH9751787)

1шт.

11

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

12

3079728

Bushing

(SUB FOR AT250589)

1шт.

13

4351175

Hose

(SUB FOR AT213957)

1шт.

14

4351774

Clamp

(SUB FOR AT213962)

1шт.

15

4438288

Hydraulic Hose

(SUB FOR TH4438288) Fabricate

1шт.

16

4438290

Hydraulic Hose

(SUB FOR TH4438290)

1шт.

17

2045998

Bushing

(SUB FOR TH2045998)

1шт.

19

TH4443896

Hydraulic Hose

1шт.

20

4446841

Hydraulic Hose

(SUB FOR TH4443902 OR 4443902) Fabricate

1шт.

21

4446841

Hydraulic Hose

(SUB FOR TH4444719 OR 4444719 ) (SUB FOR TH4444719) Fabricate

1шт.

22

4713989

Hose

(SUB FOR TH4444720, 4444720, 4438258, 4448668 OR 4437088)

1шт.

23

4261938

Fitting

(SUB FOR AT154285)

1шт.

CH11570

O-Ring

1шт.

25

H77698

Tie Band

3шт.
