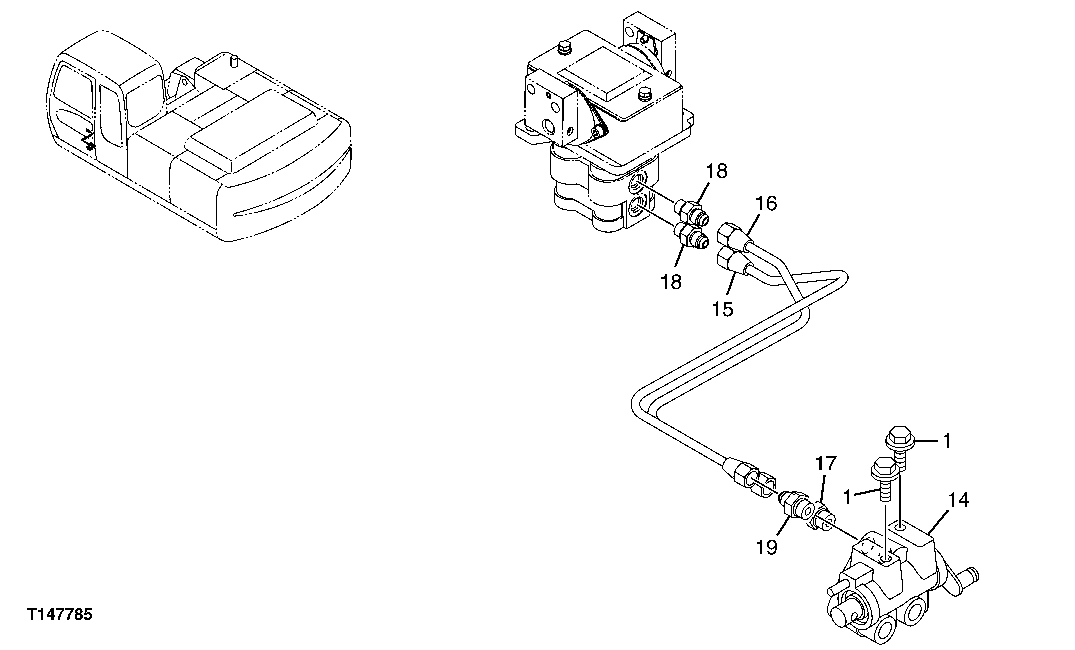

Запчасти John Deere 30CLC 293 - PILOT HYDRAULIC LINES 3363 Lines, Hoses & Fittings

1

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

14

4407253

Flow Control Hyd. Valve

1шт.

15

4452052

Oil Line

1шт.

4607398

Oil Line

1шт.

16

4452053

Oil Line

1шт.

4607399

Oil Line

1шт.

17

4255305

Fitting

(SUB FOR AT213809)

1шт.

CH11570

O-Ring

1шт.

18

4255304

Fitting

(SUB FOR AT155270)

2шт.

M800650

Packing

1шт.

19

4452326

Filter

1шт.

CH11570

O-Ring

1шт.
