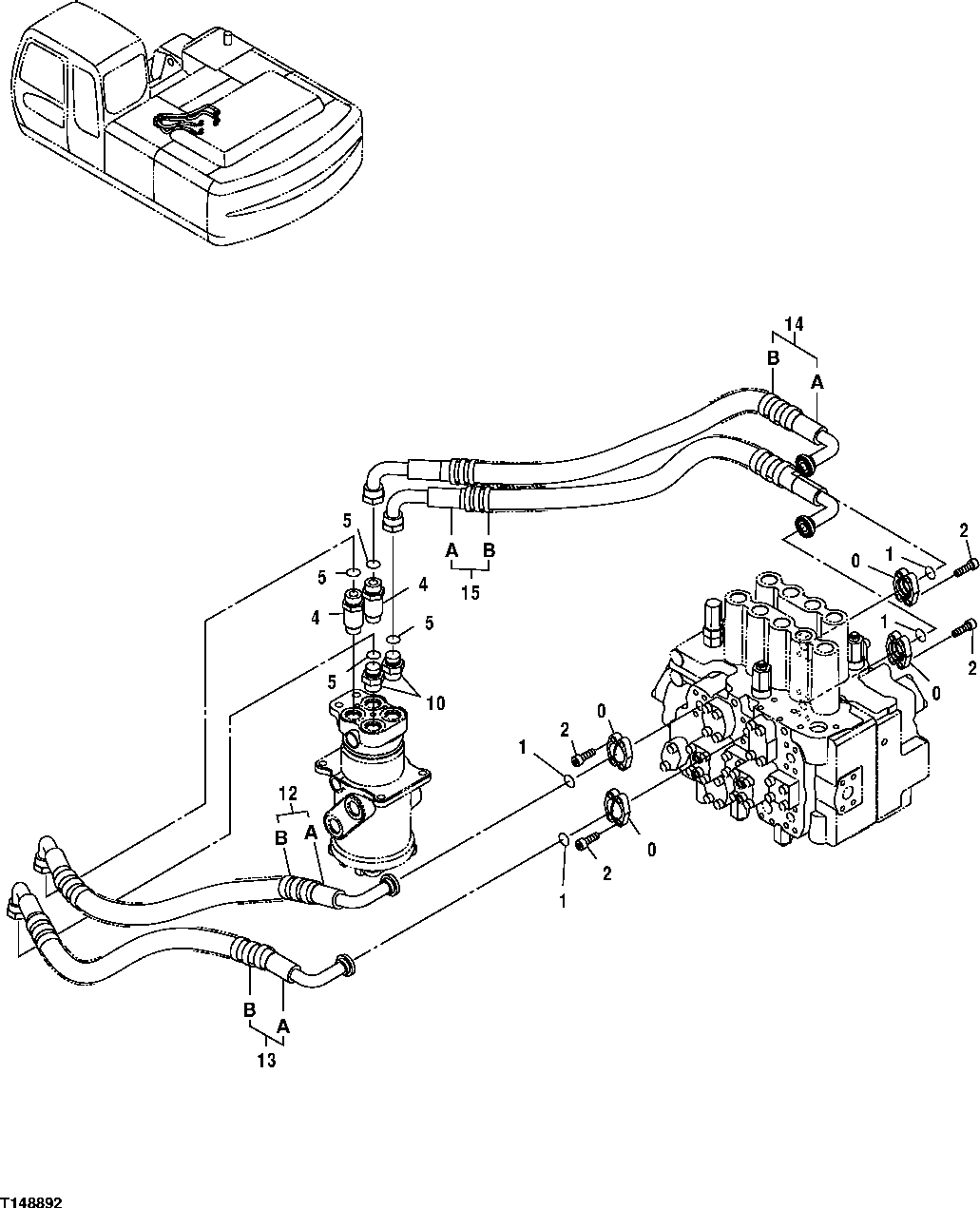

Запчасти John Deere 30CLC 280 - MAIN LINES (CONTROL VALVE TO CENTER JOINT) 3363 Lines, Hoses & Fittings

0

R29424

Flange Fitting

8шт.

1

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

4шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

16шт.

4

4189539

Adapter Fitting

(SUB FOR AT107393)

2шт.

4A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

2шт.

5

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

4шт.

10

A853166

Adapter Fitting

(SUB FOR THA853166)

2шт.

10A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

2шт.

12A

4442770

Hydraulic Hose

1шт.

12B

Hose Guard

(MAKE FROM XHG-075 , CTL) (SU B FOR AT213832 ( 4327294 NLA))

2шт.

13A

4425880

Hydraulic Hose

(SUB FOR TH4425880)

1шт.

13B

Hose Guard

(CUT TO LENGTH) (MAKE FROM XHG-07 5 ) (SUB FOR AT213832 OR 4327294)

2шт.

14A

4466483

Hydraulic Hose

1шт.

14B

Hose Guard

(MAKE FROM XHG-075 , CTL) (SU B FOR AT213832 ( 4327294 NLA))

2шт.

15A

4425857

Hydraulic Hose

(SUB FOR TH4425857)

1шт.

15B

Hose Guard

(MAKE FROM XHG-075 , CTL) (SU B FOR AT213832 ( 4327294 NLA))

2шт.
