Запчасти John Deere 30CLC 279 - SWING MOTOR PLUMBING FROM CONTROL VALVE 3363 Lines, Hoses & Fittings

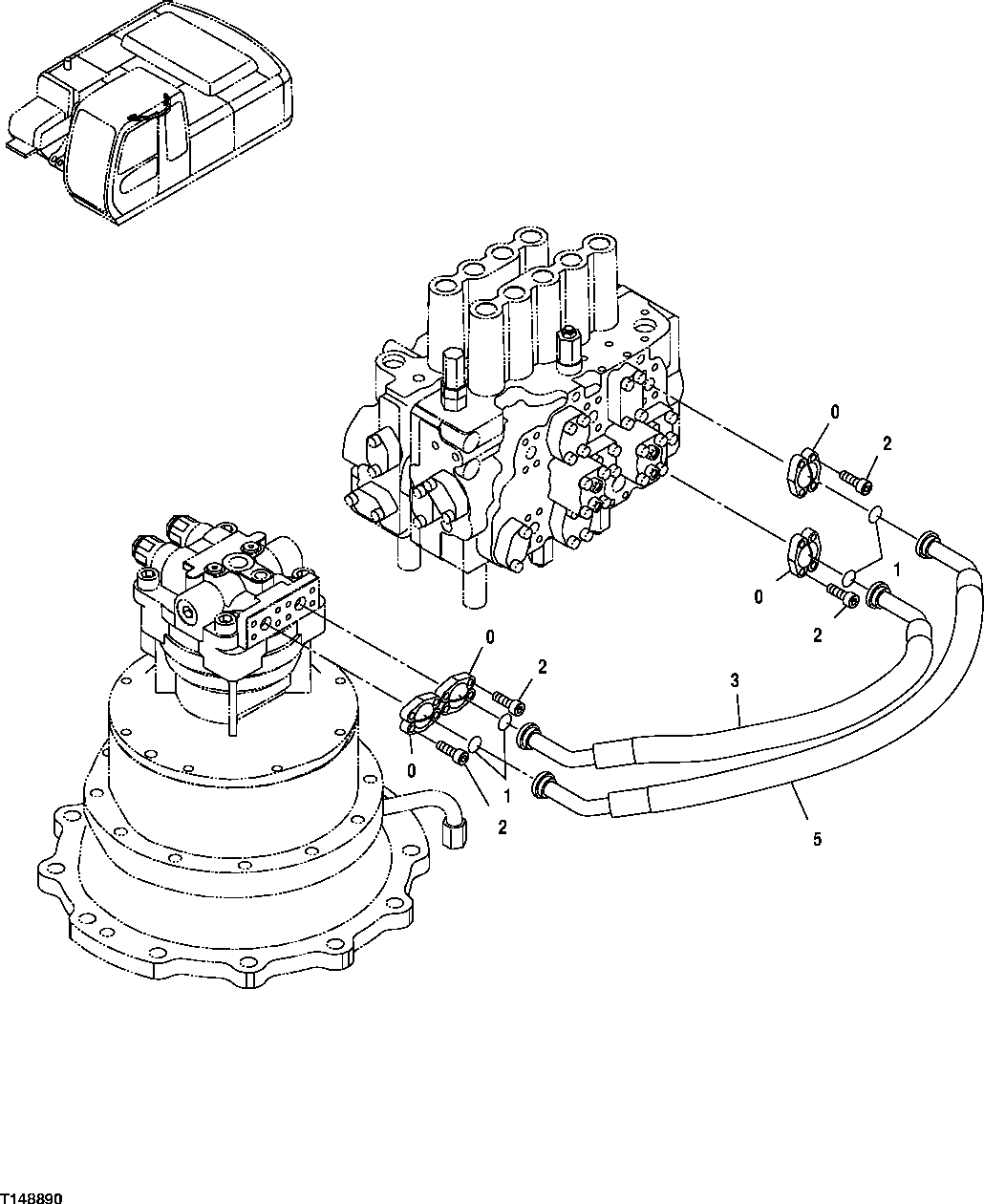

Схема запчастей John Deere 30CLC - 279 - SWING MOTOR PLUMBING FROM CONTROL VALVE 3363 Lines, Hoses & Fittings

Артикул

Название

Примечание

Количество

0

R29424

Flange Fitting

8шт.

1

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

4шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

16шт.

3

4437697

Hose

1шт.

5

4656795

Hose

(SUB FOR TH4442841 AND 4442841)

1шт.

Выбрано товаров: 5
