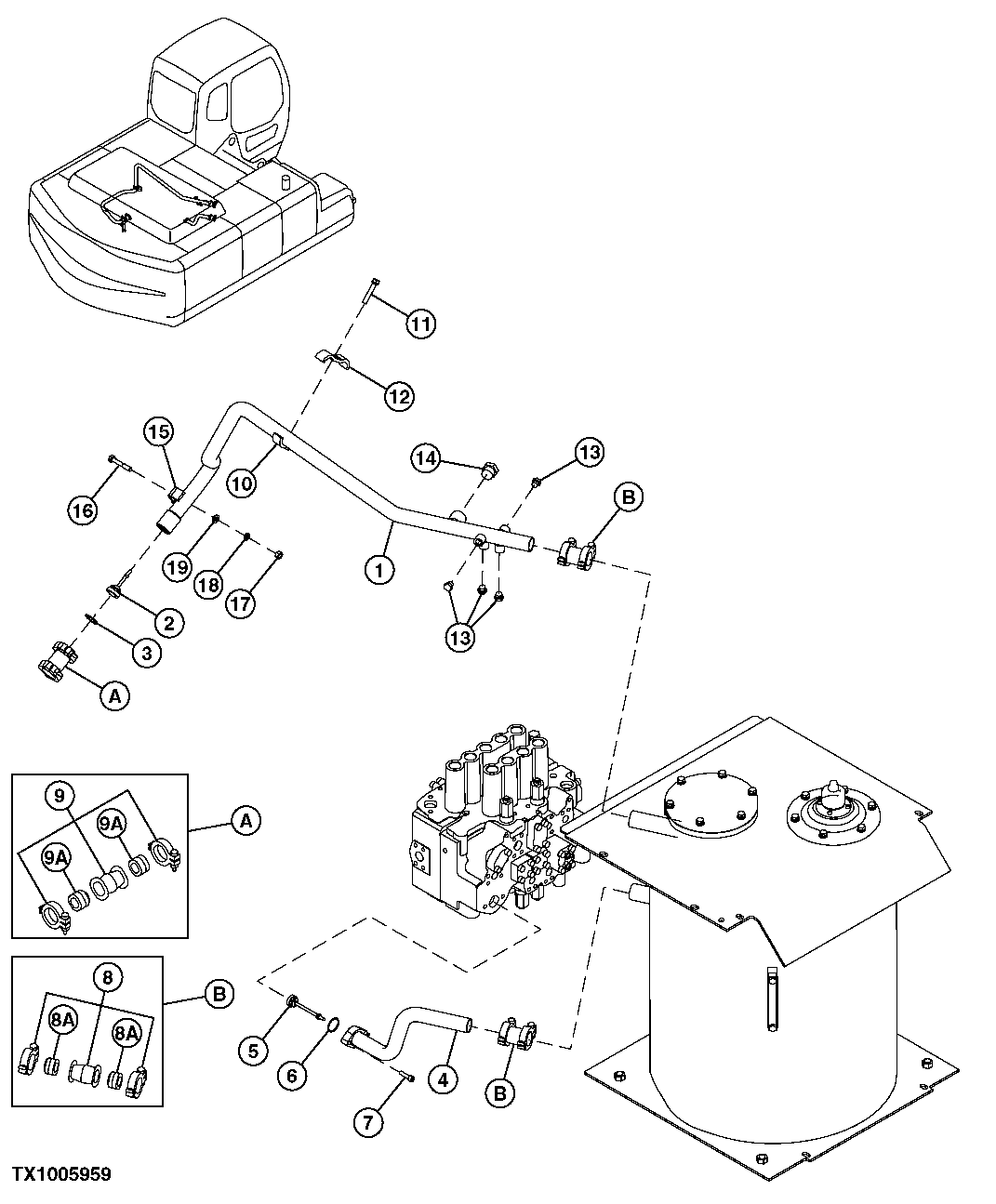

Запчасти John Deere 30CLC 274 - RETURN LINES 3363 Lines, Hoses & Fittings

1

DH700033

Line

1шт.

2

4276584

Flow Control Hyd. Valve

SUB FOR AT154331

1шт.

3

40M7225

Snap Ring

1шт.

4

8079530

Line

SUB FOR TH8079530

1шт.

5

4484198

Valve

SUB FOR AT155303; SUB FOR 4272164, THIS APPLICATION

1шт.

6

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") SUB FOR TH102992

1шт.

7

L159272

Screw

SUB FOR AT213615 OR L159272

2шт.

8

4069801

Coupling

SUB FOR TH101915, 4712341, 4196259

2шт.

8A

4196259

Seal

NLA, ORDER 4069801, SUB FOR TH106966

2шт.

9

4067834

Coupling

SUB FOR TH102945

1шт.

9A

4196260

Seal

NLA, ORDER 4067834

2шт.

10

9756186

Clamp

SUB FOR TH9752698, 9752698

1шт.

11

19M7753

Cap Screw

M12 X 70

1шт.

12H301

Lock Washer

1/2"

1шт.

12

4053696

Clamp

SUB FOR TH102946

1шт.

13

15M7036

Drain Plug

SUB FOR TH109285 OR 0309805

4шт.

14

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

1шт.

15

4053698

Clamp

SUB FOR TH101936

1шт.

16

19M8088

Cap Screw

M12 X 75

1шт.

17

14M7275

Nut

M12

1шт.

18

12H301

Lock Washer

1/2"

1шт.

19

24M7047

Washer

13 X 24 X 2.500 mm

1шт.
