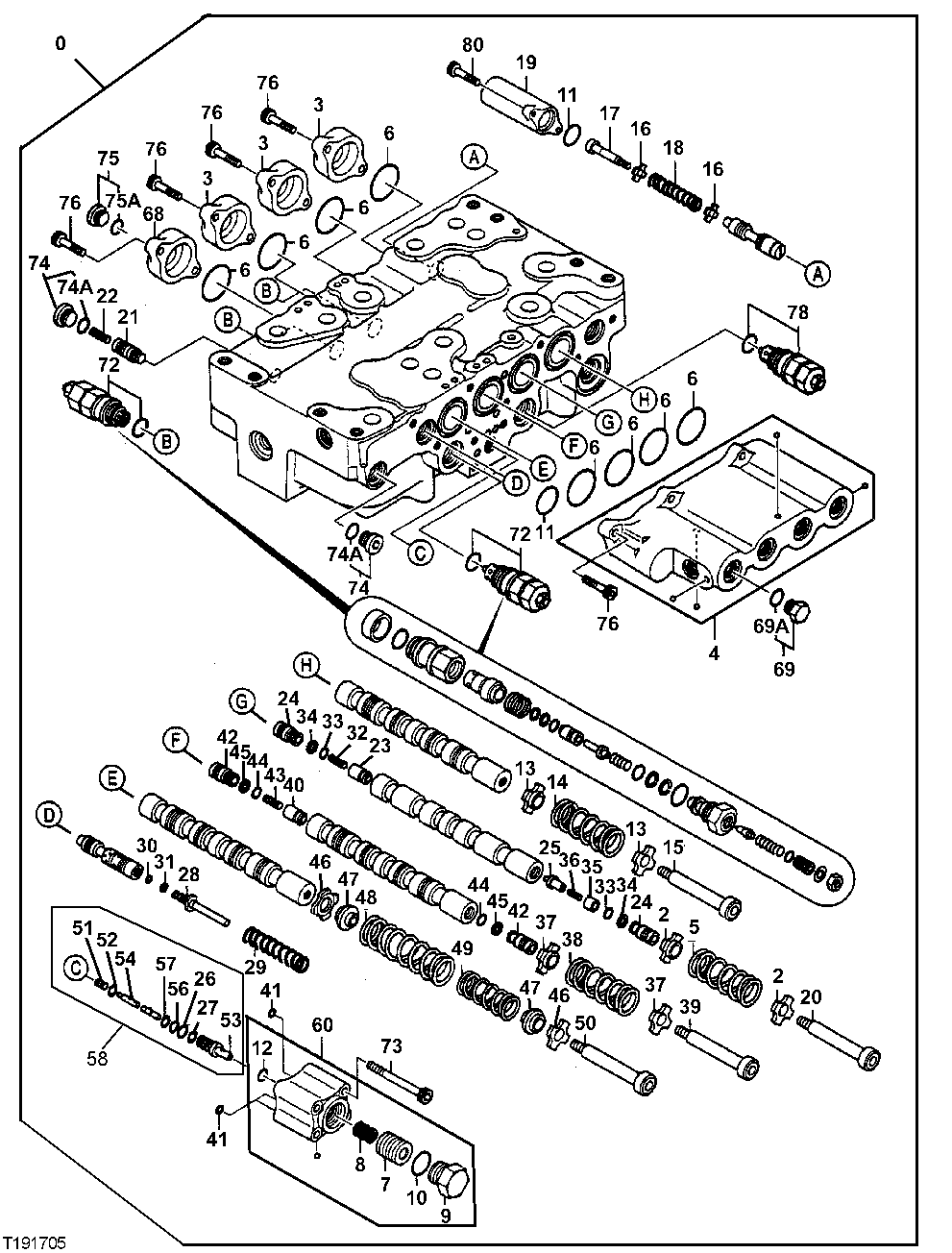

Запчасти John Deere 30CLC 260 - CONTROL VALVE (4-SPOOL) (CONTINUED) 3362 CONTROL & LOAD HOLDING VALVES

0

4436897

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAG E - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

50

0791815

Stop

(SUB FOR TH0791815)

1шт.

51

0791808

Spring

(SUB FOR TH0791808)

1шт.

52

0791809

Valve Seat

(SUB FOR TH0791809)

1шт.

53

Sleeve

( 0791810 NLA)

1шт.

54

Poppet

( 0791811 NLA)

1шт.

56

CH11560

Packing

1шт.

57

4105067

Back-Up Ring

(SUB FOR AT130859)

1шт.

58

0791818

Valve

(ASSY)

1шт.

60

4454198

Flow Control Hyd. Valve

1шт.

68

0791816

Cap

(SUB FOR TH0791816)

1шт.

69

0332914

Drain Plug

(SUB FOR TH110315)

1шт.

69A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

72

4372039

Pressure Relief Valve

(SUB FOR AT214285)

3шт.

73

0791622

Bolt

(SUB FOR TH0791622)

4шт.

74

0695007

Fitting Plug

(SUB FOR AT250518)

2шт.

74A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

75

0689405

Fitting Plug

(SUB FOR AT250517)

1шт.

75A

M800650

Packing

1шт.

76

0459541

Bolt

(SUB FOR AT200931)

14шт.

78

4358914

Pressure Relief Valve

(SUB FOR AT213982)

1шт.

80

12M7006

Lock Washer

6 mm

2шт.

19M7603

Screw

M6 X 20

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.
