Запчасти John Deere 30CLC 257 - CONTROL VALVE (FOUR-SPOOL SIDE) 3362 CONTROL & LOAD HOLDING VALVES

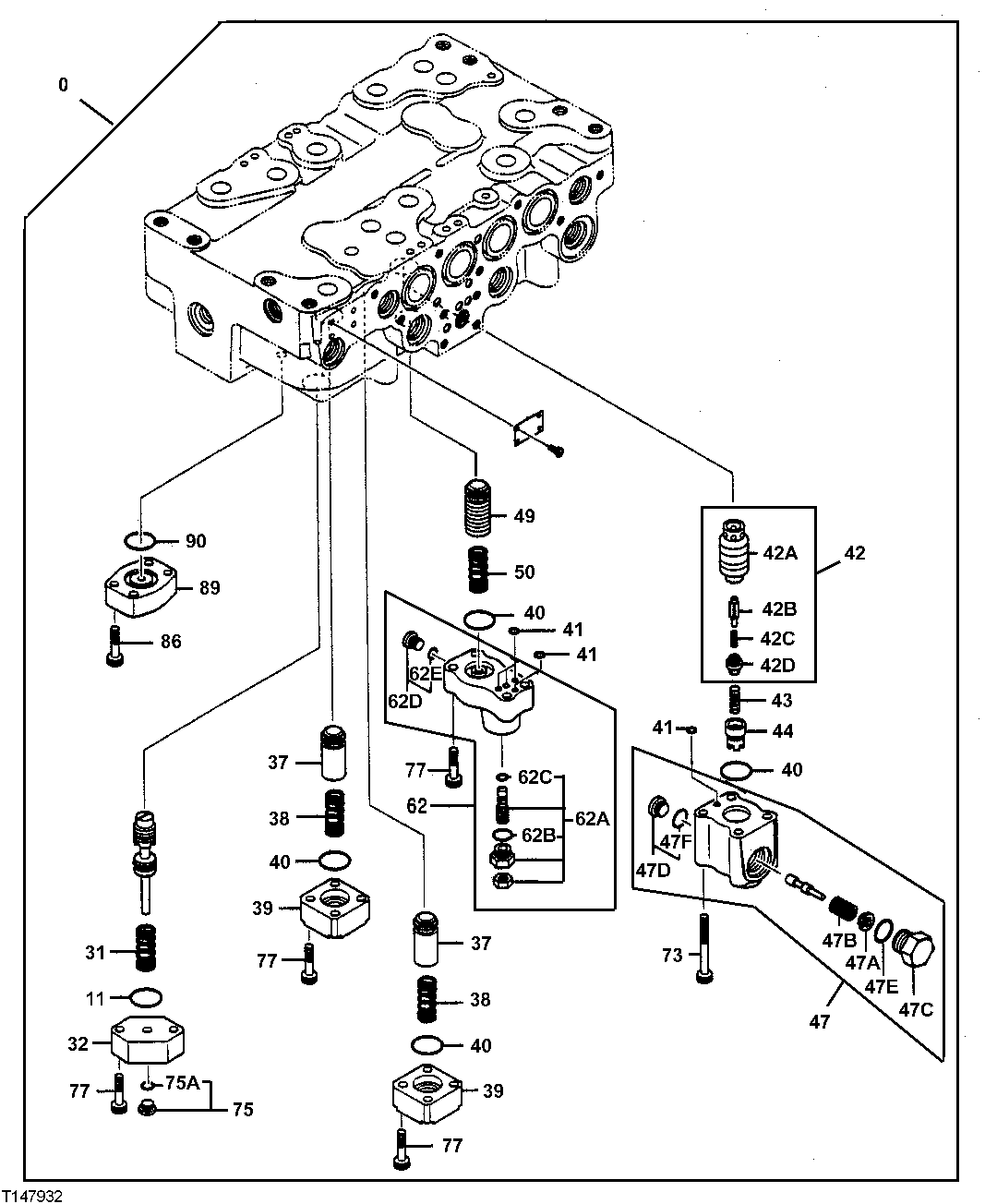

Схема запчастей John Deere 30CLC - 257 - CONTROL VALVE (FOUR-SPOOL SIDE) 3362 CONTROL & LOAD HOLDING VALVES

Артикул

Название

Примечание

Количество

0

4436897

Hyd Actuated Control Valve

Contains All Items On This Page - Additi onal Components Listed On Separate Pages

1шт.

11

CH17886

Packing

(SUB FOR TH111690 ) (SUB FOR 4509182)

1шт.

31

0791701

Spring

(SUB FOR TH0791701)

1шт.

32

0791702

Flange

(SUB FOR TH0791702)

1шт.

37

0791603

Poppet

(SUB FOR TH0791603)

2шт.

38

0791604

Spring

(SUB FOR TH0791604)

2шт.

39

0791605

Flange

(SUB FOR TH0791605)

2шт.

40

985098

O-Ring

31.700 X 3.500 mm (1.248" X 0.138") (SUB FOR TH102528)

4шт.

41

4506406

O-Ring

5.800 X 1.900 mm (0.228" X 0.075") (SUB FOR TH104587)

5шт.

42

4454193

Poppet

(SUB FOR TH4454193)

1шт.

42A

Poppet

( TH0791704 NLA)

1шт.

42B

Poppet

( TH0791610 NLA)

1шт.

42C

Spring

( TH0791611 NLA)

1шт.

42D

Pipe Plug

( TH0791612 NLA)

1шт.

43

0791606

Spring

(SUB FOR TH0791606)

1шт.

44

0791607

Spacer

(SUB FOR TH0791607)

1шт.

47

4454196

Flow Control Hyd. Valve

1шт.

47A

Valve Seat

( TH0791616 NLA)

1шт.

47B

Spring

( TH0791706 NLA)

1шт.

47C

Pipe Plug

( TH0791618 NLA)

1шт.

47D

0667817

Fitting Plug

(SUB FOR AT213675)

1шт.

47E

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

47F

M800650

Packing

1шт.

49

0791619

Poppet

(SUB FOR TH0791619)

1шт.

50

0791620

Spring

(SUB FOR TH0791620)

1шт.

62

4454200

Flow Control Hyd. Valve

1шт.

62A

Valve

( TH0791708 NLA)

1шт.

62B

M800650

Packing

1шт.

62C

4032996

O-Ring

1шт.

62D

0667713

Fitting Plug

(SUB FOR AT213660)

1шт.

62E

4506408

O-Ring

(SUB FOR TH101490)

1шт.

73

0791622

Bolt

(SUB FOR TH0791622)

4шт.

75

0689405

Fitting Plug

(SUB FOR AT250517)

1шт.

75A

M800650

Packing

1шт.

77

0413909

Bolt

(SUB FOR AT154619)

14шт.

86

0413619

Bolt

(SUB FOR AT154591)

4шт.

89

AT154604

Cap

1шт.

90

A4730R

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

1шт.

Выбрано товаров: 38
