Запчасти John Deere 30CLC 252 - MAIN HYDRAULIC PUMP RIGHT HAND REGULATOR 3361 HYDRAULIC PUMP

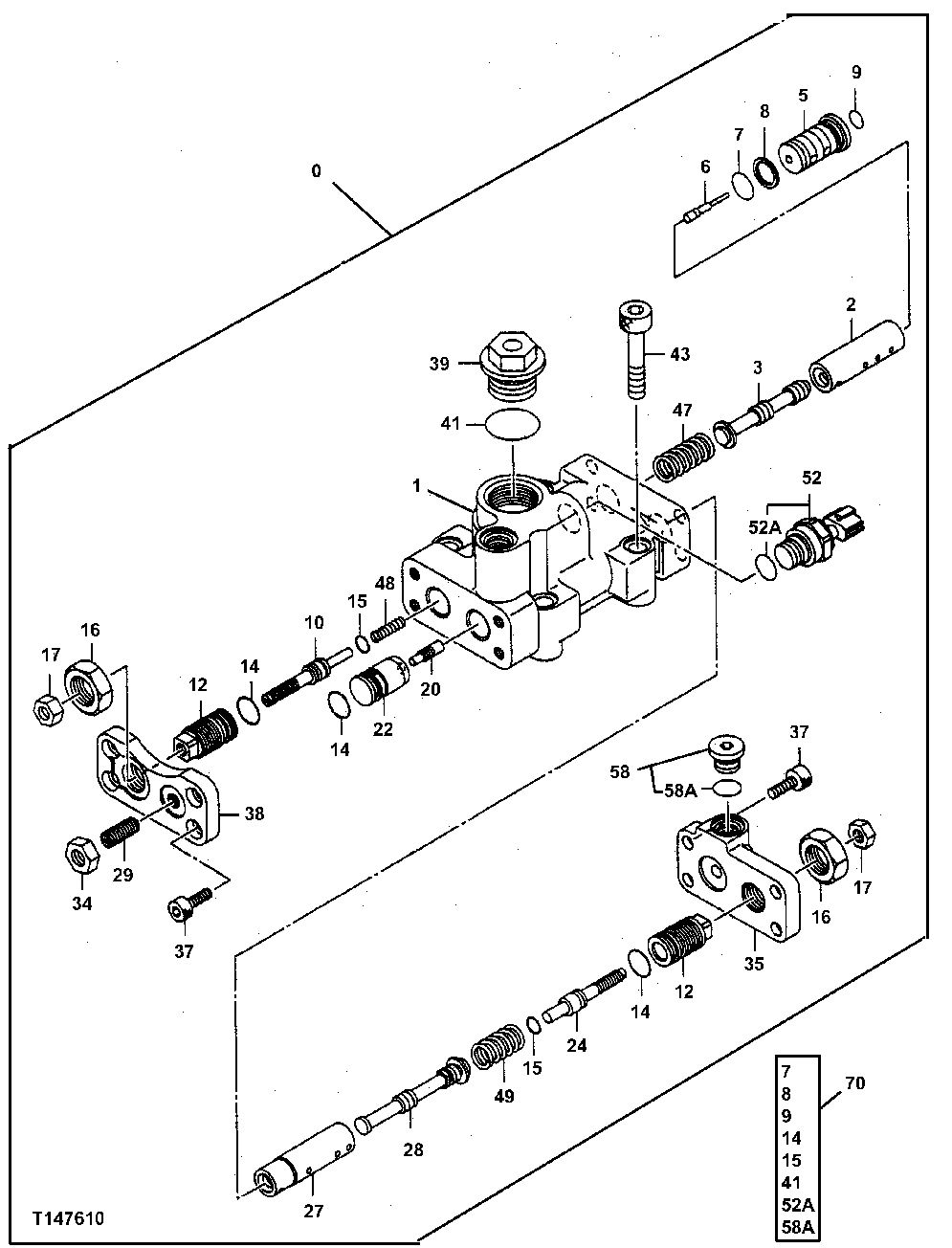

Схема запчастей John Deere 30CLC - 252 - MAIN HYDRAULIC PUMP RIGHT HAND REGULATOR 3361 HYDRAULIC PUMP

Артикул

Название

Примечание

Количество

0

9207259

Regulator

SUB FOR TH9207259

1шт.

1

Housing

TH1027149 NLA

1шт.

2

4179155

Sleeve

SUB FOR TH109892

1шт.

3

4179156

Spool

SUB FOR TH109893

1шт.

5

4435025

Piston

SUB FOR TH4435025

1шт.

6

4435024

Flow Control Hyd. Valve

NEEDLE VALVE

1шт.

7

TH102560

O-Ring

(K) 15.800 X 2.400 mm (0.622" X 3/32")

1шт.

8

4085607

Back-Up Ring

(K) SUB FOR TH102562

1шт.

9

CH11560

Packing

(K)

1шт.

10

4368619

Stop

SUB FOR AT214045

1шт.

12

4179161

Stop

SUB FOR TH109898

2шт.

14

4342843

O-Ring

(K) SUB FOR AT213892

3шт.

15

4342841

O-Ring

(K) SUB FOR AT213891

2шт.

16

4068898

Nut

M20 SUB FOR TH102567

2шт.

17

14M7273

Nut

M8

2шт.

20

4179171

Piston

SUB FOR TH109911

1шт.

22

4451498

Piston

SUB FOR TH4451498

1шт.

24

4347107

Stop

SUB FOR AT213917

1шт.

27

4346522

Sleeve

SUB FOR AT213913

1шт.

28

4346521

Valve Spool

SUB FOR AT213912

1шт.

29

22M7098

Set Screw

M10 X 25 SUB FOR AT201005 OR 4265964

1шт.

34

14M7274

Nut

M10

1шт.

35

3075775

End Plate

SUB FOR AT213794

1шт.

37

19M8446

Screw

M8 X 20

8шт.

38

4433327

Cover

SUB FOR AT192511

1шт.

39

4724232

Plug

SUB FOR TH4447264 AND 4447264

1шт.

41

4342846

O-Ring

(K) SUB FOR AT213893 OR 4153108, SUB FOR 0818007, THIS APPLICATION

1шт.

43

19M8339

Screw

M10 X 55

4шт.

47

4194176

Compression Spring

SUB FOR TH111263

1шт.

48

4423345

Spring

SUB FOR TH4423345

1шт.

49

4350928

Compression Spring

SUB FOR AT213951

1шт.

52

4436536

Sensor

SUB FOR TH4436536

1шт.

52A

CH11570

O-Ring

(K) 13.800 X 2.400 mm (0.543" X 3/32")

1шт.

58

9134110

Fitting

SUB FOR AT203649

1шт.

58A

M800650

Packing

(K)

1шт.

70

4455719

Seal Kit

SUB FOR (1) TH4455719, CO NTAINS ALL PARTS MARKED K

1шт.

Выбрано товаров: 36
