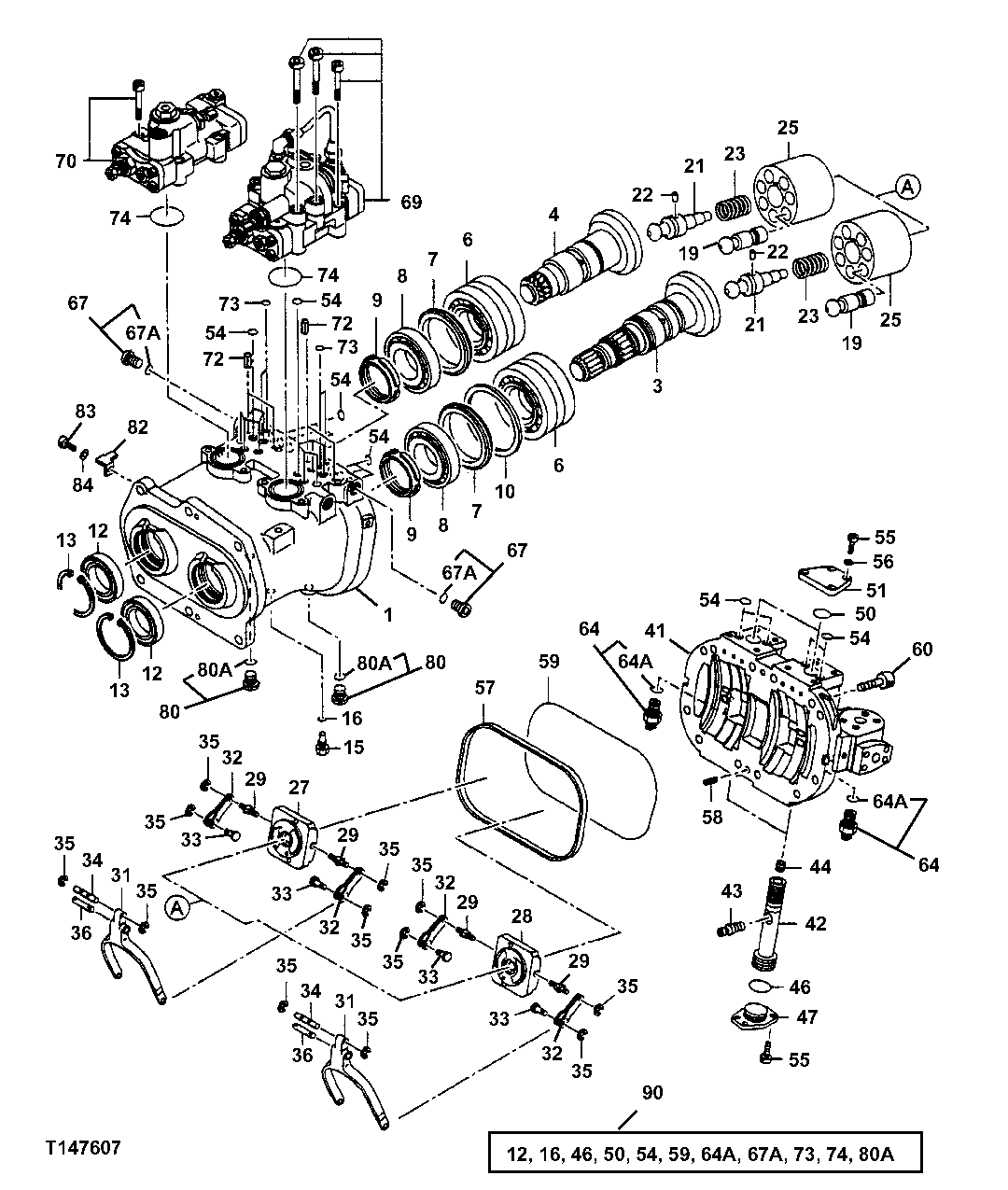

1
Gear Case
( 1026679 NLA) (ORDER 1032319, 2043207, 2043 211, 4410050 (2), 4339171 (2), 4622945 (2) )
1шт.
1032319
Housing
1шт.
3
2036807
Disk
(SUB FOR AT213734)
1шт.
2043207
Drive Disk
1шт.
4
2036808
Disk
(SUB FOR AT213735)
1шт.
2043211
Drive Disk
1шт.
6
4337419
Cylindrical Roller Bearing
(I.D. 65MM) (SUB FOR AT213873)
2шт.
4410050
Spherical Roller Bearing
(I.D. 60MM)
2шт.
7
4348182
Ring
(SUB FOR AT213920)
2шт.
4339171
Ring
2шт.
8
4337483
Cylindrical Roller Bearing
(SUB FOR AT213874)
2шт.
4622945
Spherical Roller Bearing
2шт.
9
4178173
Nut
M60 (SUB FOR T107755)
2шт.
10
4330054
Thrust Washer
115 X 130 X 3 mm (4.528" X 5.118" X 0.118 ") (SUB FOR AT202466 ) (SUB FOR AT170630)
1шт.
12
T225266
Seal
(K) (SUB FOR AT213847 OR 4333170)
2шт.
13
4116290
Snap Ring
(SUB FOR TH111929)
2шт.
15
4233165
Fitting
(SUB FOR AT154164)
1шт.
16
M800650
Packing
(K)
1шт.
19
8059452
Piston
(SUB FOR AT214351)
14шт.
21
4337035
Shaft
(SUB FOR AT213871)
2шт.
22
4198956
Pin Fastener
5 X 10 mm (0.197" X 0. 394") (SUB FOR T107766)
2шт.
23
4179181
Compression Spring
(SUB FOR T107767)
2шт.
25
2036744
Rotor
(SUB FOR AT213730)
2шт.
27
2036795
Flow Control Hyd. Valve
(SUB FOR AT213733)
1шт.
28
2036786
Flow Control Hyd. Valve
(SUB FOR AT213732)
1шт.
29
4179179
Dowel Pin
(SUB FOR TH109874)
4шт.
31
3075674
Link
(SUB FOR AT213793)
2шт.
32
9724756
Lever
(SUB FOR TH109873)
4шт.
33
4179177
Dowel Pin
6 X 10 mm (0.236" X 0.3 94") (SUB FOR TH109875)
4шт.
34
4179176
Dowel Pin
6 X 44 mm (0.236" X 1.7 32") (SUB FOR TH109876)
2шт.
35
CH17951
Ring
12шт.
