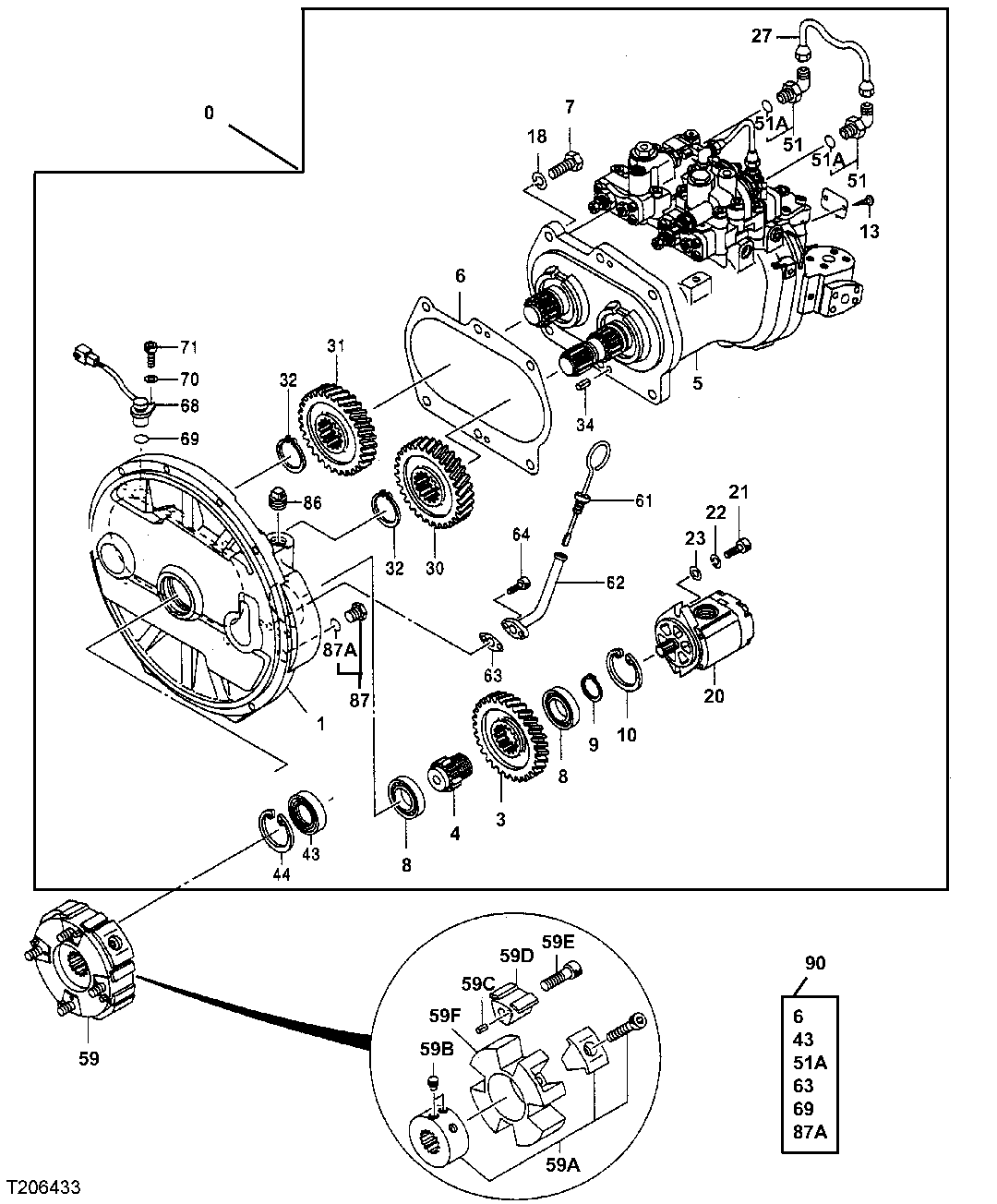

Запчасти John Deere 30CLC 249 - MAIN HYDRAULIC PUMP 3361 HYDRAULIC PUMP

0

9195236

Pump

(SUB FOR TH9195236), NLA, (ORDER 9195236EX)

1шт.

9195236EX

Hydraulic Pump Reman

(REMAN FOR 9195236)

1шт.

1

Housing

(SUB FOR TH1027184)( 1027184 NLA)

1шт.

3

3063840

Gear

(SUB FOR AT202414)

1шт.

4

3055594

Shaft

(SUB FOR AT202412)

1шт.

5

Housing

(PUMP UNIT) (SEE FOLLOW ING PAGE FOR COMPONENTS)

1шт.

6

8058352

Gasket

(K) (SUB FOR AT214350)

1шт.

7

19M7489

Cap Screw

M16 X 45

6шт.

8

JD8514

Ball Bearing

2шт.

9

962002

Snap Ring

(SUB FOR TH100483)

1шт.

10

40M7090

Snap Ring

1шт.

13

37H99

Screw

0.100" X 1/4"

2шт.

18

12H294

Lock Washer

5/8"

6шт.

20

4276918

Pump

(SUB FOR AT202122)

1шт.

21

19M8337

Screw

M10 X 30

2шт.

22

12M7135

Lock Washer

10 mm (SUB FOR 12M6791)

2шт.

23

4114402

Washer

10.500 X 22 X 3.200 mm (0.413" X 0 .866" X 0.126") (SUB FOR TH102181)

2шт.

27

4369148

Oil Line

(SUB FOR AT214046)

1шт.

30

3063842

Gear

(SUB FOR AT202415)

1шт.

31

3063843

Gear

(SUB FOR AT202416)

1шт.

32

AT152406

Snap Ring

(SUB FOR AT203647 ) (SUB FOR 4274552)

2шт.

34

34M7061

Spring Pin

8 X 20 mm

2шт.

43

4310055

Seal

(K) (SUB FOR AT202443)

1шт.

44

40M7090

Snap Ring

1шт.

51

4293950

Fitting

(SUB FOR AT160584)

2шт.

51A

M800650

Packing

(K)

1шт.

59

FYB00000114

Coupling

(SUB FOR 4416605)

1шт.

59A

4702172

Hub

(SUB FOR 4463992 OR 4687331 ) (ALSO ORDER (2) 4702173)

1шт.

59B

Set Screw

(USE WITH 4463992 OR 4687331 ) (SUB 4702 173 ) (ALSO ORDER 4702172)( 4334899 NLA)

2шт.

4702173

Set Screw

(USE WITH 4702172)

2шт.

59C

34M7117

Spring Pin

5 X 10 mm

4шт.

59D

4463993

Insert

(SUB FOR TH4463993)

4шт.

59E

4334894

Bolt

(SUB FOR TH4334894)

4шт.

59F

Housing

1шт.

61

4438059

Dipstick

(SUB FOR TH4438059)

1шт.

62

9743977

Dipstick Tube

(SUB FOR AT214406)

1шт.

63

9742779

Gasket

(K) (SUB FOR AT214401)

1шт.

64

19M7647

Screw

M8 X 16 (SUB FOR AT217709)

2шт.

68

4265372

Sensor

(SUB FOR AT154297)

1шт.

69

4306888

O-Ring

(K) 18.771 X 1.778 mm (0.739 " X 0.070") (SUB FOR AT154310)

1шт.

70

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

71

19M8553

Screw

M6 X 16

1шт.

86

4234782

Plug

(SUB FOR AT200990)

1шт.

87

15M7036

Drain Plug

(SUB FOR 0309805 ) (SUB FOR 4092534 AND CH11570)

1шт.

87A

CH11570

O-Ring

(K) 13.800 X 2.400 mm (0.543" X 3/32")

1шт.

90

4451036

Seal Kit

(SUB FOR TH4451036)

1шт.
