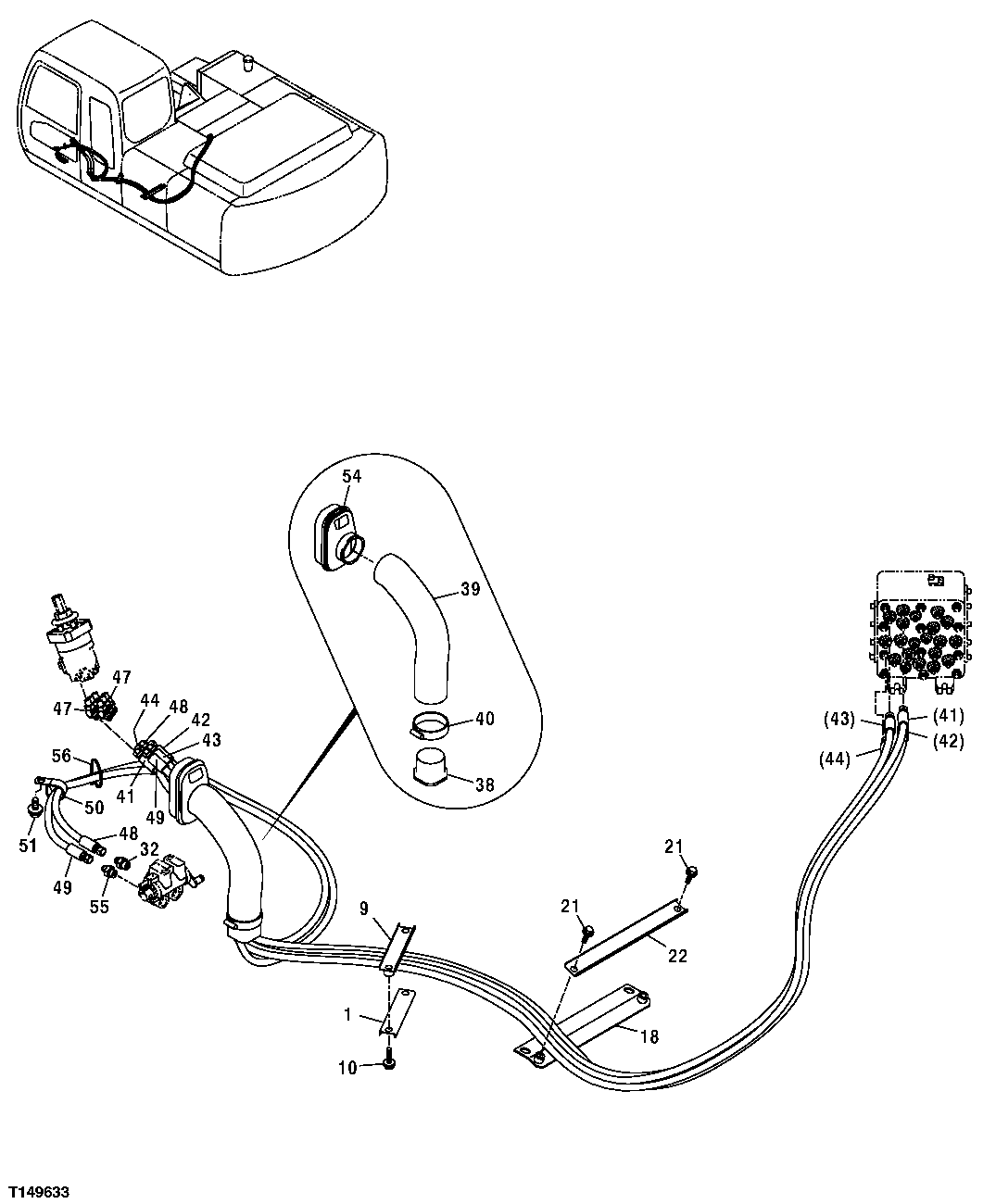

Запчасти John Deere 30CLC 242 - HYDRAULIC HOSES (LEFT PILOT CONTROLLER) 3360 HYDRAULIC SYSTEM

1

4412666

Clamp

1шт.

9

9751787

Clamp

1шт.

10

19M7358

Cap Screw

M10 X 40

2шт.

18

8077444

Bracket

1шт.

21

19M7402

Cap Screw

M10 X 25

2шт.

22

4425177

Channel

1шт.

32

A852133

Adapter Fitting

1шт.

32A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

38

3079728

Bushing

1шт.

39

4351175

Hose

1шт.

40

4351774

Clamp

1шт.

41

4484016

Hydraulic Hose

(SUB FOR TH4444732 OR 4459260)

1шт.

42

4437634

Hydraulic Hose

(SUB FOR TH4437634)

1шт.

43

4484016

Hydraulic Hose

(SUB FOR TH4437636)

1шт.

44

4437637

Hydraulic Hose

(SUB FOR TH4437637)

1шт.

47

A852223

Elbow Fitting

6шт.

47A

M800650

Packing

6шт.

48

4437653

Hydraulic Hose

1шт.

49

4437656

Hydraulic Hose

Fabricate

1шт.

50

XCL-29

Hose Clamp

(SUB FOR 4190264 OR 4193848)

1шт.

51

19M7938

Cap Screw

M10 X 20

1шт.

54

2045998

Bushing

1шт.

55

4261938

Fitting

(SUB FOR AT154285)

1шт.

55A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

56

H77698

Clip

1шт.
