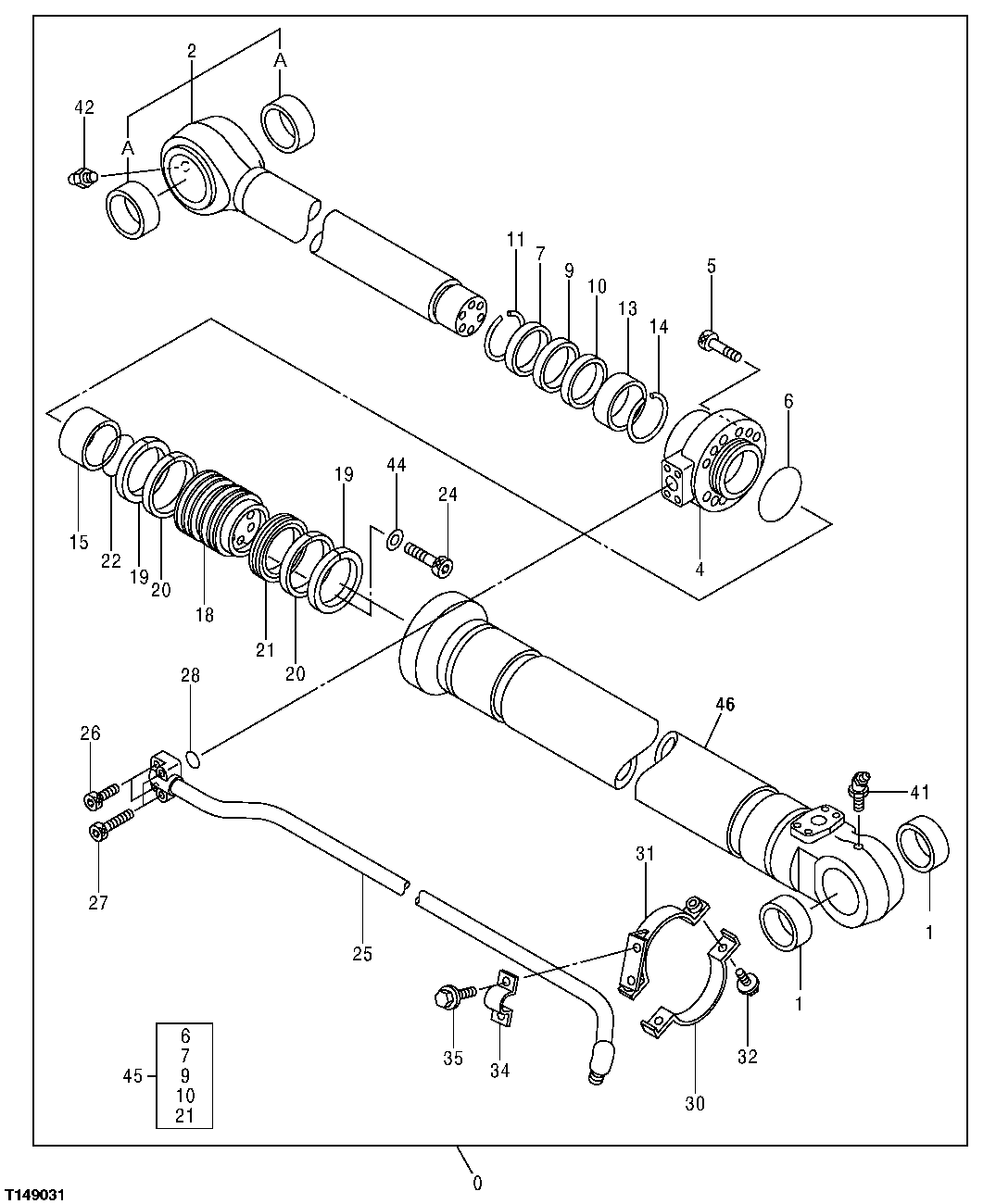

Запчасти John Deere 30CLC 238 - BUCKET CYLINDER COMPONENTS (SN -603533) 3360 HYDRAULIC SYSTEM

0

Cylinder

SUB FOR (1) TH9205255; SUB (1) 9234732J; 9205255Y NLA

1шт.

1

4332285

Bushing

SUB FOR AT217750

2шт.

2

7037631

Rod

Piston

1шт.

2A

4358100

Bushing

SUB FOR AT217787

2шт.

4

1027961

Cylinder Head

SUB FOR TH1027961

1шт.

5

19M8913

Screw

M18 X 80

12шт.

6

4432448

O-Ring

For Heat Problems See DTAC Solution SUB FOR TH4432448

1шт.

4641828

O-Ring

Heat Resistant

1шт.

7

T204375

Seal

SUB FOR AT181238 AND AT264293

1шт.

9

AT264395

Seal

SUB FOR TH110018

1шт.

10

Ring

AT154733 NLA

1шт.

11

4369507

Ring

SUB FOR AT181239

1шт.

13

AT264321

Bushing

SUB FOR AT154779 OR AT264273

1шт.

14

4264983

Snap Ring

SUB FOR AT131251

1шт.

15

3090718

Ring

SUB FOR TH3090718

1шт.

18

3088182

Piston

SUB FOR TH3088182

1шт.

19

4431272

Ring

SUB FOR TH4431272

2шт.

20

4431329

Ring

SUB FOR TH4431329

2шт.

21

4431328

Seal

SUB FOR TH4431328

1шт.

22

CH17854

Packing

1шт.

24

4440216

Bolt

SUB FOR TH4440216

6шт.

25

8079015

Line

SUB FOR TH8079015

1шт.

26

19M8341

Screw

M12 X 45

2шт.

27

19M8444

Screw

M12 X 60

2шт.

28

AT264324

O-Ring

SUB FOR TH100044

1шт.

30

3088453

Clamp

SUB FOR TH3088453

1шт.

31

8079055

Clamp

SUB FOR TH8079055

1шт.

32

19M7550

Cap Screw

M10 X 35

2шт.

34

4194152

Clamp

SUB FOR TH110029

1шт.

35

19M7402

Cap Screw

M10 X 25

2шт.

41

T116334

Lubrication Fitting

1шт.

42

TH100074

Lubrication Fitting

1шт.

44

TH4451000

Washer

6шт.

45

4485614

Seal Kit

For Heat Problems See DTAC Solut ion SUB FOR TH9207060 OR 9207060

1шт.

Seal Kit

9257549 NLA; HEAT RESISTANT

1шт.

46

9207057

Hydraulic Cylinder Barrel

1шт.
