Запчасти John Deere 30CLC 235 - Arm Cylinder Components ( - 603582) 3360 HYDRAULIC SYSTEM

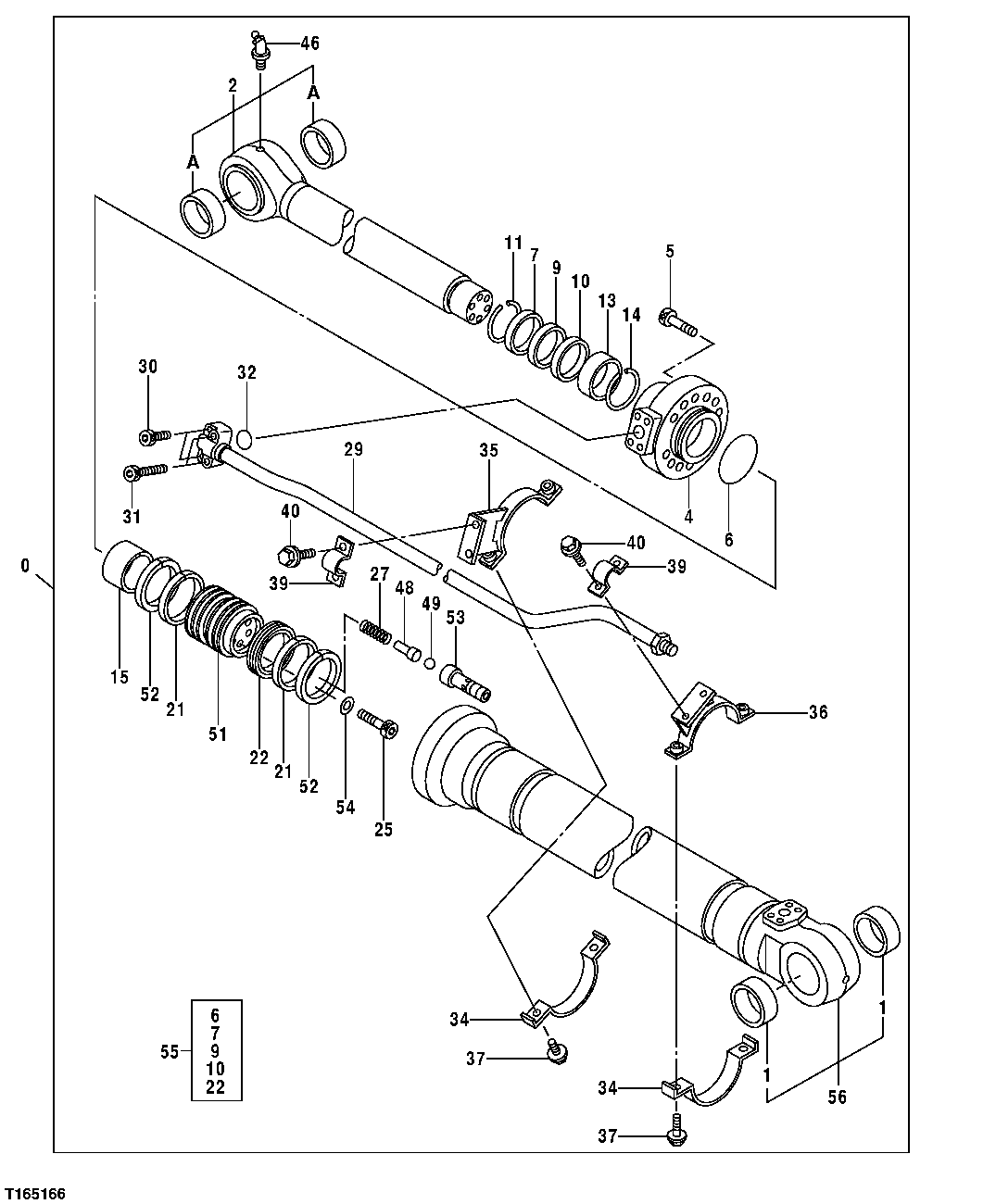

Схема запчастей John Deere 30CLC - 235 - Arm Cylinder Components ( - 603582) 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

Hydraulic Cylinder

ORDER (1) 9234731J; SUB FOR (1) TH92052 54; PAINTED PART - YELLOW; 9205254Y NLA

1шт.

1

4397790

Bushing

SUB FOR TH4397790

2шт.

2

7042288

Rod

SUB FOR TH7037630 OR 7037630; USE WIT H 3095080, (6) 4469687 AND (6) 4467407

1шт.

2A

4397790

Bushing

SUB FOR TH4397790

2шт.

4

1027923

Cylinder Head

SUB FOR TH1027923

1шт.

5

19M8913

Screw

M18 X 80

14шт.

6

AT264295

O-Ring

For Heat Problems See DTAC Sol ution SUB FOR AT217990, 4380144

1шт.

7

AT264298

Seal

SUB FOR AT219685, 4351498

1шт.

9

AT333702

Seal

ALSO ORDER AT280445; SUB FOR TH111838, 4171485 OR 4411660

1шт.

10

AT264414

Seal

SUB FOR TH111839, 4171487 OR 4411655

1шт.

11

4383089

Snap Ring

SUB FOR AT250038

1шт.

13

4432450

Bushing

SUB FOR TH4432450

1шт.

14

4268206

Snap Ring

SUB FOR AT130834

1шт.

15

3090716

Ring

SUB FOR TH3090716

1шт.

21

4414671

Ring

SUB FOR TH4414671

2шт.

22

4414670

Seal

SUB FOR TH4414670

1шт.

25

Bolt

4440217 NLA USE WITH 70 37630; SUB FOR TH4440217

6шт.

4469687

Bolt

USE WITH 7042288

6шт.

27

4431827

Spring

SUB FOR TH4431827

1шт.

29

8079014

Line

SUB FOR TH8079014

1шт.

30

19M8341

Screw

M12 X 45

2шт.

31

19M8444

Screw

M12 X 60

2шт.

32

AT264324

O-Ring

SUB FOR TH100044

1шт.

34

3088454

Clamp

SUB FOR TH3088454

2шт.

35

3088453

Clamp

SUB FOR TH3088453

1шт.

36

8079054

Clamp

SUB FOR TH8079054

1шт.

37

19M7550

Cap Screw

M10 X 35

4шт.

39

4194152

Clamp

SUB FOR TH110029

2шт.

40

19M7402

Cap Screw

M10 X 25

4шт.

46

T116334

Lubrication Fitting

1шт.

48

4450961

Stop

SUB FOR TH4450961

1шт.

49

4450962

Ball

SUB FOR TH4450962

1шт.

51

Piston

3095080 NLA USE WITH 7037630 ) (SUB FOR TH3092204, 3092204

1шт.

3095080

Piston

USE WITH 7042288

1шт.

52

4168233

Ring

SUB FOR TH4168233

2шт.

53

4455121

Plunger

SUB FOR TH4455121

1шт.

54

Washer

4451001 NLA USE WITH 70 37630; SUB FOR TH4451001

6шт.

4467407

Washer

USE WITH 7042288

6шт.

55

9207059

Seal Kit

SUB FOR TH9207059

1шт.

56

4645989

Hydraulic Cylinder Barrel

SUB FOR 9207056

1шт.

4645989

Hydraulic Cylinder Barrel

SUB FOR PG201327

1шт.

Выбрано товаров: 41
