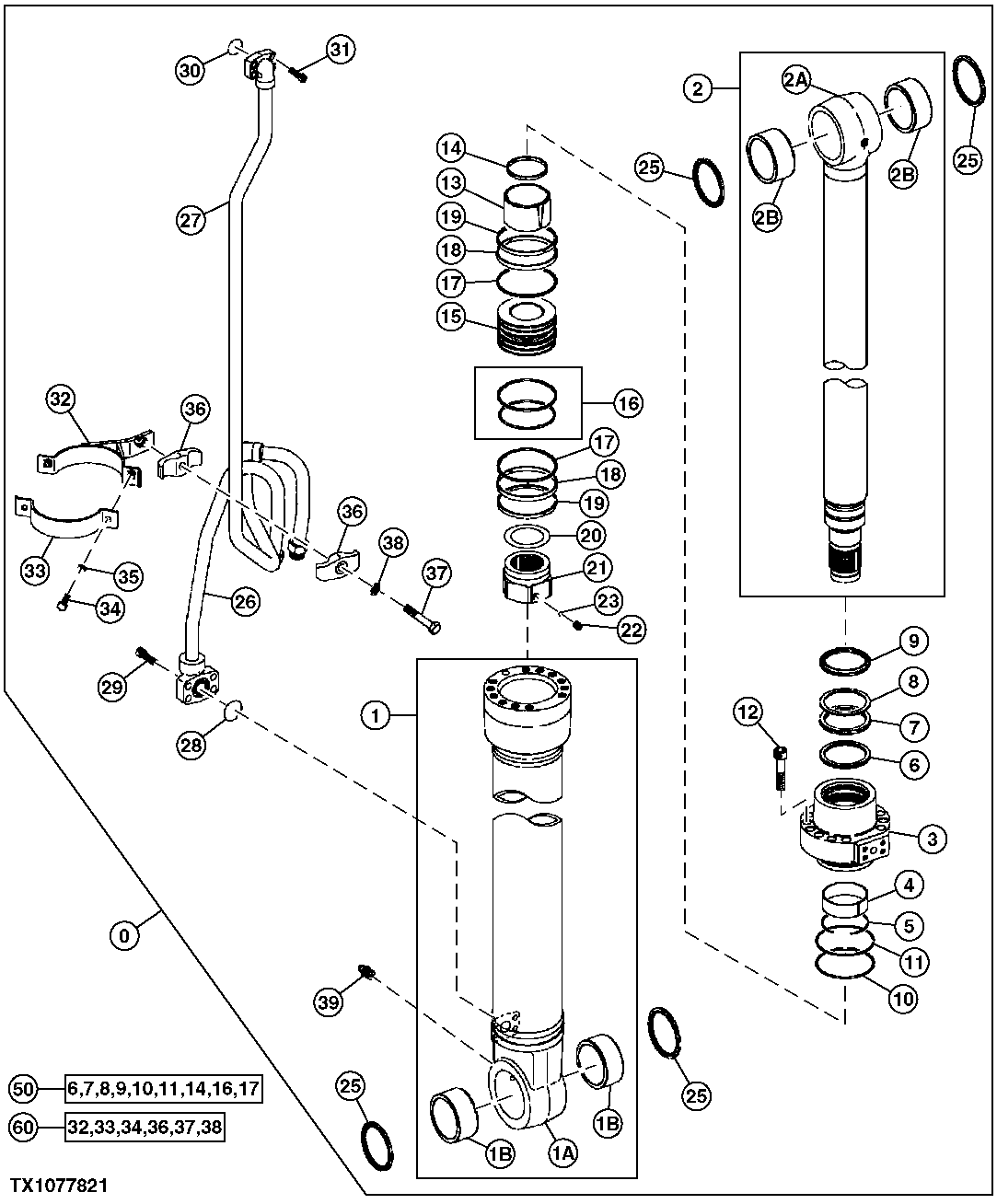

Запчасти John Deere 30CLC 234 - Left Boom Cylinder Components, Units Built After August 2003 3360 HYDRAULIC SYSTEM

0

9234730J

Hydraulic Cylinder

SUB FOR 4613893

1шт.

1

0926609

Tube

1шт.

PG201334

Hyd Cylinder Barrel Reman

1шт.

1A

Tube

0926601 NLA

1шт.

1B

4355875

Bushing

2шт.

2

0926610

Rod

1шт.

0926610

Rod

SUB FOR PG201336

1шт.

2A

Rod

0926602 NLA

1шт.

2B

4355875

Bushing

2шт.

3

0926603

Cylinder Head

1шт.

4

AT264321

Bushing

SUB FOR 0325904

1шт.

5

0237407

Ring

1шт.

6

1119303

Ring

SUB FOR 4469112, 0927507 OR 4S00706

1шт.

7

1119304

Packing

SUB FOR 0105301, 0927508 OR 4S00707

1шт.

8

AT264351

Back-Up Ring

SUB FOR 0237419

1шт.

9

4428492

Ring

1шт.

10

AT264339

O-Ring

SUB FOR A811120

1шт.

11

AT264363

Back-Up Ring

SUB FOR 0223704

1шт.

12

19M8931

Screw

M16 X 75 SUB FOR 0409705

12шт.

13

0829306

Packing

1шт.

14

4469113

Seal

SUB FOR 4S00776

1шт.

15

0737505

Piston

1шт.

16

AT264361

Seal

SUB FOR 0223706

1шт.

17

0496706

Back-Up Ring

SUB FOR 4S00778

2шт.

18

0926604

O-Ring

SUB FOR 4S00708

2шт.

19

AT264362

Piston Ring

SUB FOR 0223713

2шт.

20

0400909

Shim

1шт.

21

0776406

Nut

1шт.

22

22M6684

Set Screw

M12 X 12 SUB FOR 0309011

1шт.

23

T13624

Ball

SUB FOR 0111707

1шт.

25

TH102445

Seal

SUB FOR 0400902 AND 4067901

4шт.

26

0926605

Pipe

1шт.

27

Pipe

SUB (1) 0926608 AND (1) 0927505; 092 6606 NLA Units Built Before July 2004

1шт.

0926608

Pipe

Units Built After July 2004

1шт.

28

AT264348

O-Ring

SUB FOR 984614

1шт.

29

19M8448

Screw

M12 X 35 SUB FOR M341236

4шт.

30

4506430

O-Ring

1шт.

31

19M8337

Screw

M10 X 30 SUB FOR 4486953 AND M341030

4шт.

32

0926607

Band

Units Built Before July 2004

1шт.

0927504

Band

Units Built After July 2004

1шт.

33

0309017

Clamp

Units Built Before July 2004

1шт.

0927506

Band

Units Built After July 2004

1шт.

34

Screw With Washer

J021035 NLA

2шт.

19M7550

Cap Screw

M10 X 35

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

35

12M7066

Lock Washer

10 mm SUB FOR A590910

2шт.

36

0236915J

Half Clamp

SUB FOR (1) 0236915 Unit s Built Before July 2004

2шт.

H238070

Clamp

SUB FOR (1) 0309021 Uni ts Built After July 2004

2шт.

37

19M4789

Cap Screw

M14 X 80 SUB FOR (1) 0254312 Units Built Before July 2004

1шт.

19M7362

Cap Screw

M12 X 55 SUB FOR (1) 0667013 Units Built After July 2004

2шт.

38

12H317

Lock Washer

9/16" SUB FOR (1) A590914 U nits Built Before July 2004

1шт.

12M7058

Lock Washer

12 mm SUB FOR (1) 0208516 Units Built After July 2004

2шт.

39

TH100074

Lubrication Fitting

SUB FOR J75481

1шт.

50

4S00715

Seal Kit

SUB FOR 4662069

1шт.

60

Band Kit

0926611 NLA) Furnish Componen ts Units Built Before July 2004

1шт.

0927505

Band Kit

Units Built After July 2004

1шт.
