Запчасти John Deere 30CLC 233 - Left Boom Cylinder Components, Units Built Before August 2003 3360 HYDRAULIC SYSTEM

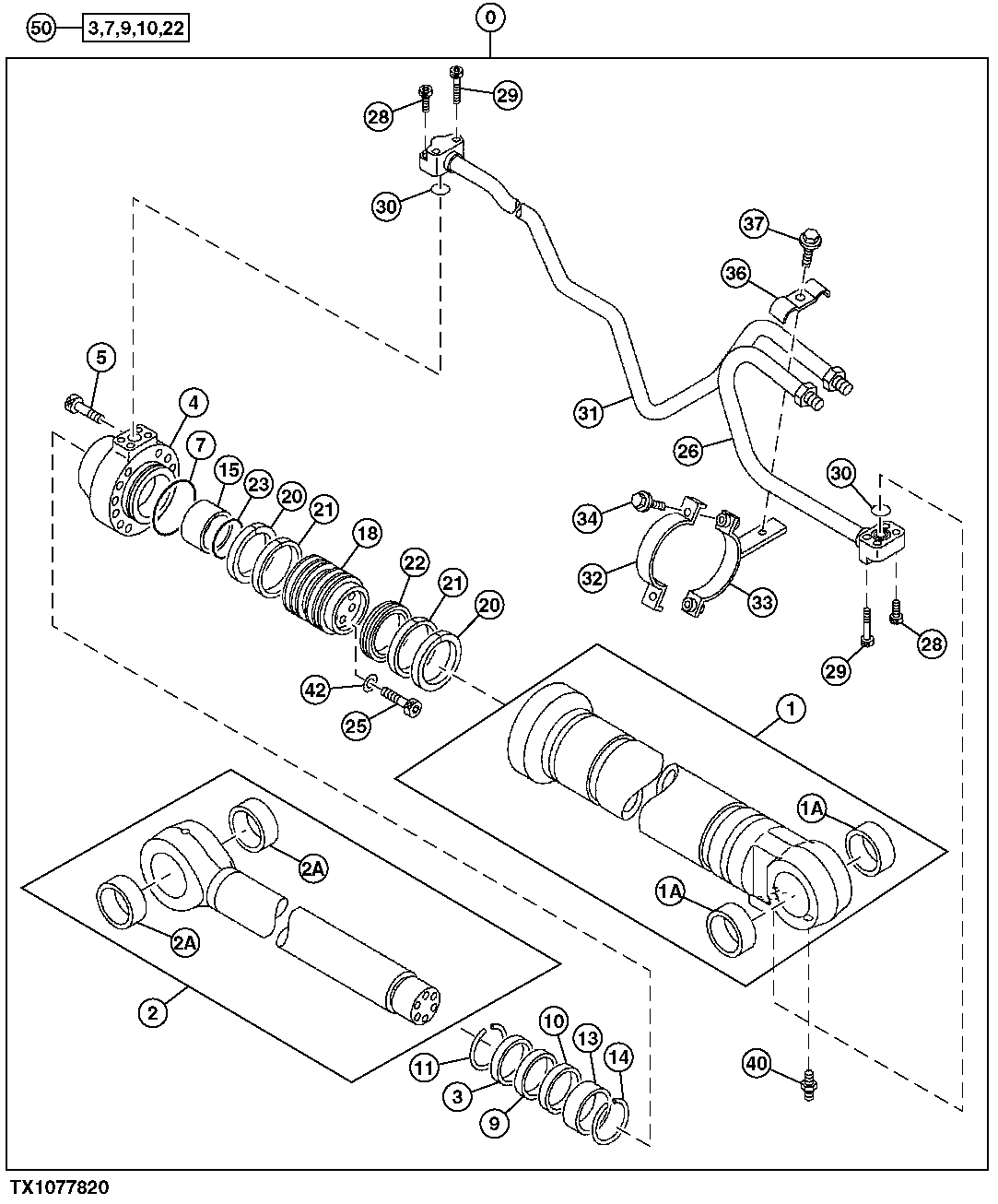

Схема запчастей John Deere 30CLC - 233 - Left Boom Cylinder Components, Units Built Before August 2003 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

Cylinder

SUB 9234730J; 9205253 NLA

1шт.

1

4645988

Hydraulic Cylinder Barrel

SUB FOR 7037626 OR 9207055

1шт.

4645988

Hydraulic Cylinder Barrel

SUB FOR PG201331

1шт.

1A

4355875

Bushing

2шт.

2

4645891

Hydraulic Cylinder Rod

SUB FOR 7037629

1шт.

4645891

Hydraulic Cylinder Rod

SUB FOR PG201333

1шт.

2A

4355875

Bushing

2шт.

3

T204375

Seal

SUB FOR 4348202

1шт.

4

1027960

Cylinder Head

1шт.

5

19M8913

Screw

M18 X 80 SUB FOR M341880

12шт.

7

4438622

O-Ring

For Heat Problems Contact DTAC

1шт.

4641827

O-Ring

Heat Resistant

1шт.

9

AT264395

Seal

SUB FOR 4414047

1шт.

10

4412693

Seal

1шт.

11

4369507

Ring

1шт.

13

AT264321

Bushing

SUB FOR 4272961 OR AT264273

1шт.

14

4264983

Snap Ring

1шт.

15

3090718

Ring

1шт.

18

3090804

Piston

1шт.

20

4431271

Ring

2шт.

21

AT264270

Wear Ring

SUB FOR 4253562

2шт.

22

AT264296

Seal

SUB FOR 4375665

1шт.

23

CH17854

Packing

SUB FOR A811085

1шт.

25

4440216

Bolt

6шт.

26

8046950

Line

1шт.

28

19M8341

Screw

M12 X 45 SUB FOR M341245

4шт.

29

19M8444

Screw

M12 X 60 SUB FOR M341260

4шт.

30

AT264324

O-Ring

SUB FOR A811035

2шт.

31

8083815

Line

1шт.

32

3088453

Clamp

1шт.

33

8079052

Clamp

1шт.

34

19M7550

Cap Screw

M10 X 35 SUB FOR (1) J011035 Units Built Before May 2003

2шт.

Screw With Washer

J271035 NLA Units Built After May 2003

2шт.

19M7550

Cap Screw

M10 X 35 SUB FOR (1) J90103 5 Units Built After May 2003

2шт.

24M7346

Washer

11 X 20 X 2 mm SUB FOR (1) J22 2010 Units Built After May 2003

2шт.

37

19M8348

Cap Screw

M12 X 65 SUB FOR (1) J011265 Units Built Before May 2003

1шт.

Screw With Washer

J271265 NLA Units Built After May 2003

1шт.

19M8348

Cap Screw

M12 X 65 SUB FOR (1) J90126 5 Units Built After May 2003

1шт.

24M7345

Washer

13.500 X 24 X 2.500 mm SUB FOR (1) J222012 Units Built After May 2003

1шт.

40

TH100074

Lubrication Fitting

SUB FOR J75481

1шт.

42

TH4451000

Washer

6шт.

50

4485612

Seal Kit

For Heat Problems Contact DTAC

1шт.

9257531

Seal Kit

NLA Heat Resistant

1шт.

Выбрано товаров: 43
