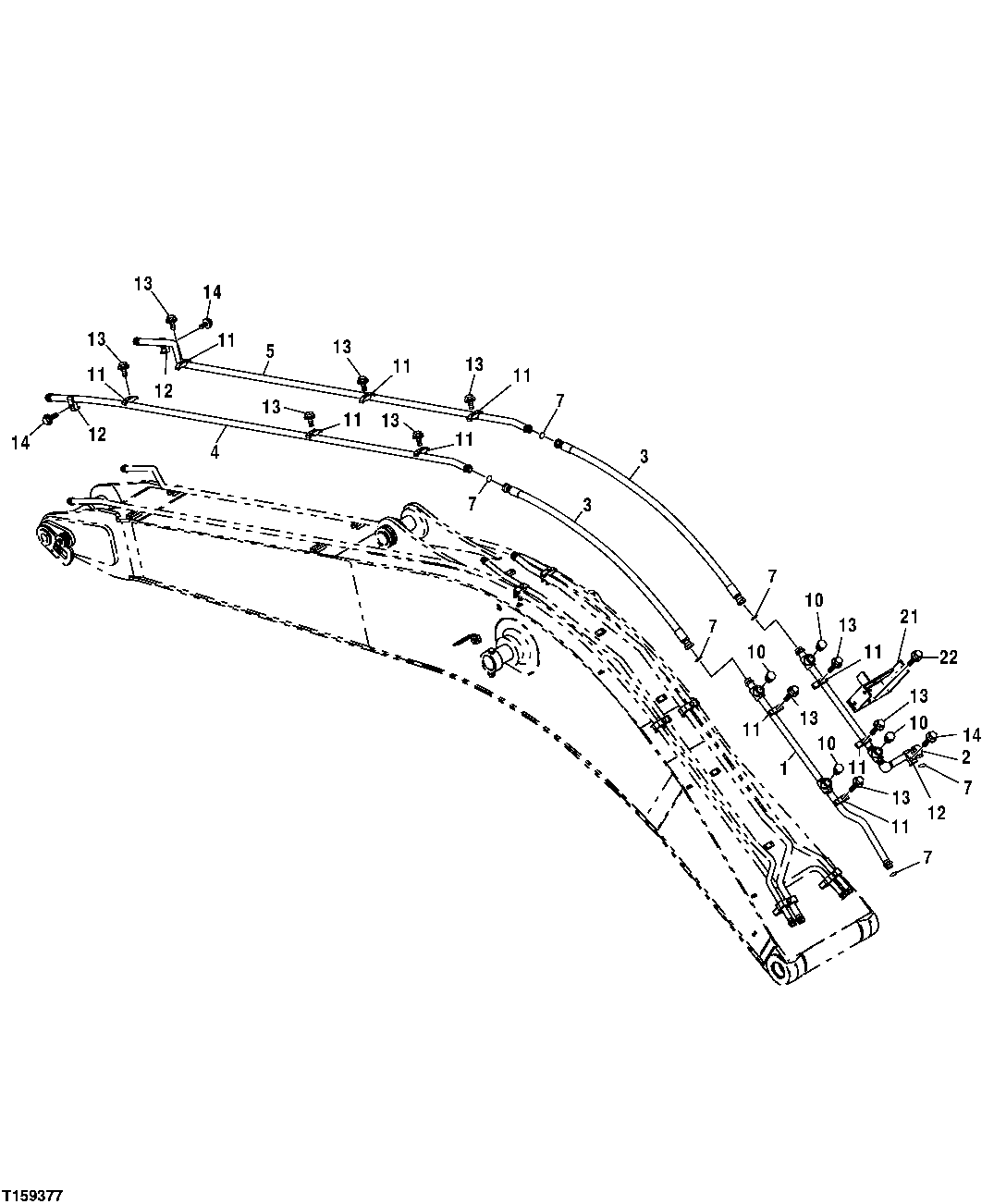

Запчасти John Deere 30CLC 228 - Boom Auxiliary Hoses And Lines, Factory Installed 3360 HYDRAULIC SYSTEM

1

8080415J

Oil Line

1шт.

2

8080416J

Oil Line

1шт.

3

4380583

Hydraulic Hose

2шт.

4

DH800083J

Oil Line

8053188 NA

1шт.

5

DH800084J

Oil Line

8083189 NA

1шт.

7

T76938

O-Ring

SUB FOR 4187328

6шт.

10

A885008

Pipe Plug

SUB FOR 4113926

4шт.

TH101926

O-Ring

SUB FOR 4506429

4шт.

11

4153488

Clamp

10шт.

12

4190127

Clamp

3шт.

13

19M8348

Cap Screw

M12 X 65 SUB FOR J011265

10шт.

14

19M8088

Cap Screw

M12 X 75 SUB FOR J011275

3шт.

21

8080436J

Bracket

1шт.

22

19M7403

Cap Screw

M12 X 35 SUB FOR J021235

4шт.
