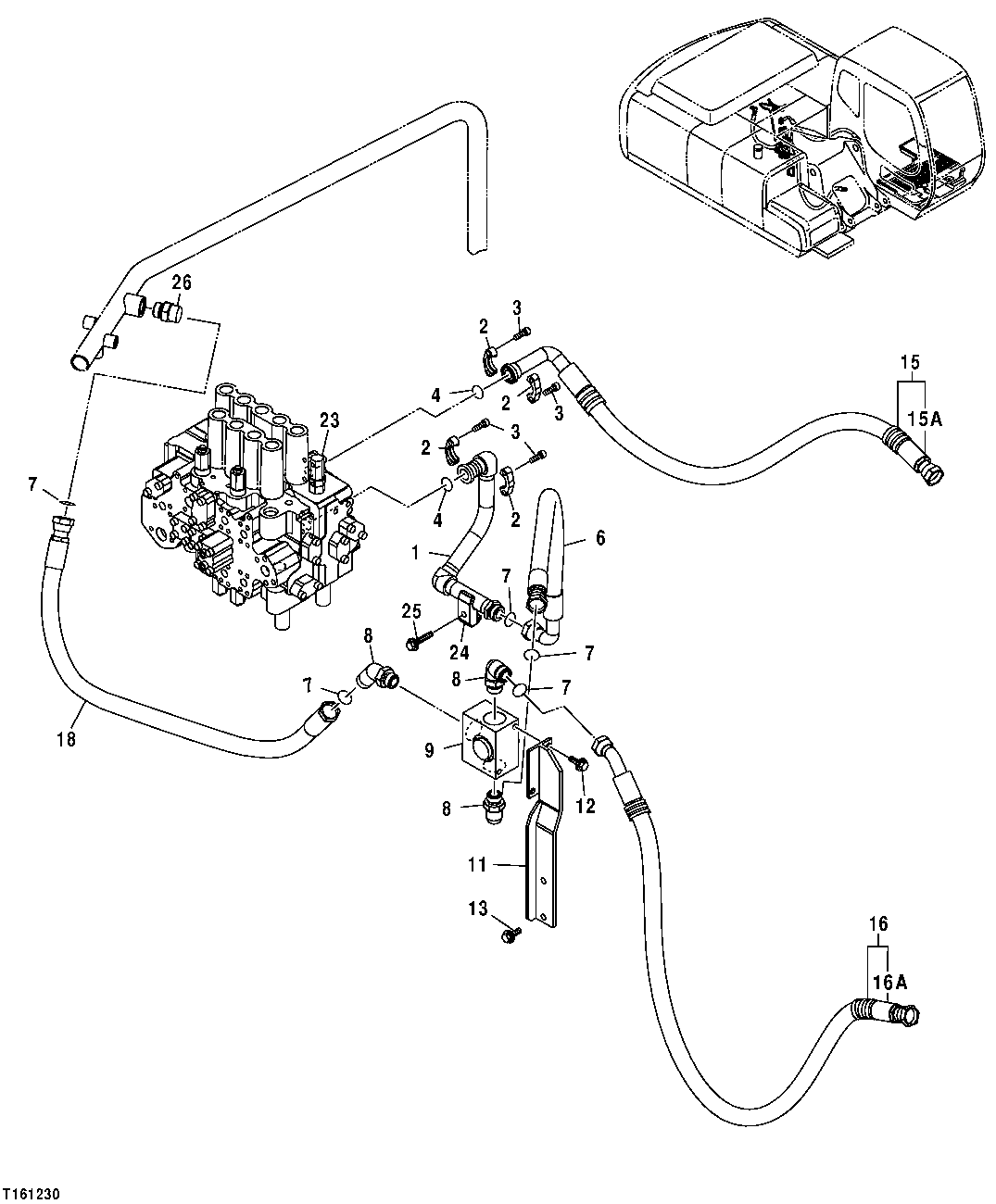

Запчасти John Deere 30CLC 227 - CONTROL VALVE PRESSURE AND RETURN AUXILIARY PLUMBING (FACTORY) 3360 HYDRAULIC SYSTEM

1

8079794

Oil Line

1шт.

2

H61354

Flange Fitting

(SUB FOR Z962453)

4шт.

3

19M7576

Screw

M10 X 30 (SUB FOR J781030)

8шт.

4

T78313

O-Ring

2шт.

6

4457290

Hydraulic Hose

1шт.

7

T76938

O-Ring

(SUB FOR 4187328)

5шт.

8

A853388

Elbow Fitting

3шт.

9

4455599

Valve

1шт.

11

8079166

Bracket

1шт.

12

19M8011

Cap Screw

M12 X 30 (SUB FOR J011230)

2шт.

13

19M7403

Cap Screw

M12 X 35 (SUB FOR J021235)

2шт.

15

Hose Kit

( 9214462 NLA)

1шт.

15A

4457285

Hydraulic Hose

1шт.

Hose Guard

(MAKE FROM XHG-075 , CTL) ( 4327294 NLA)

1шт.

16

9214463

Hydraulic Hose

1шт.

16A

4457289

Hydraulic Hose

1шт.

18

4457286

Hydraulic Hose

1шт.

23

4282718

Pressure Relief Valve

2шт.

24

4190127

Clamp

1шт.

25

19M8088

Cap Screw

M12 X 75 (SUB FOR J011275)

1шт.

26

A853188

Adapter Fitting

1шт.
