217 - CONTROL VALVE (SUPER LONG FRONT)

Запчасти John Deere 30CLC 217 - CONTROL VALVE (SUPER LONG FRONT) 3360 HYDRAULIC SYSTEM

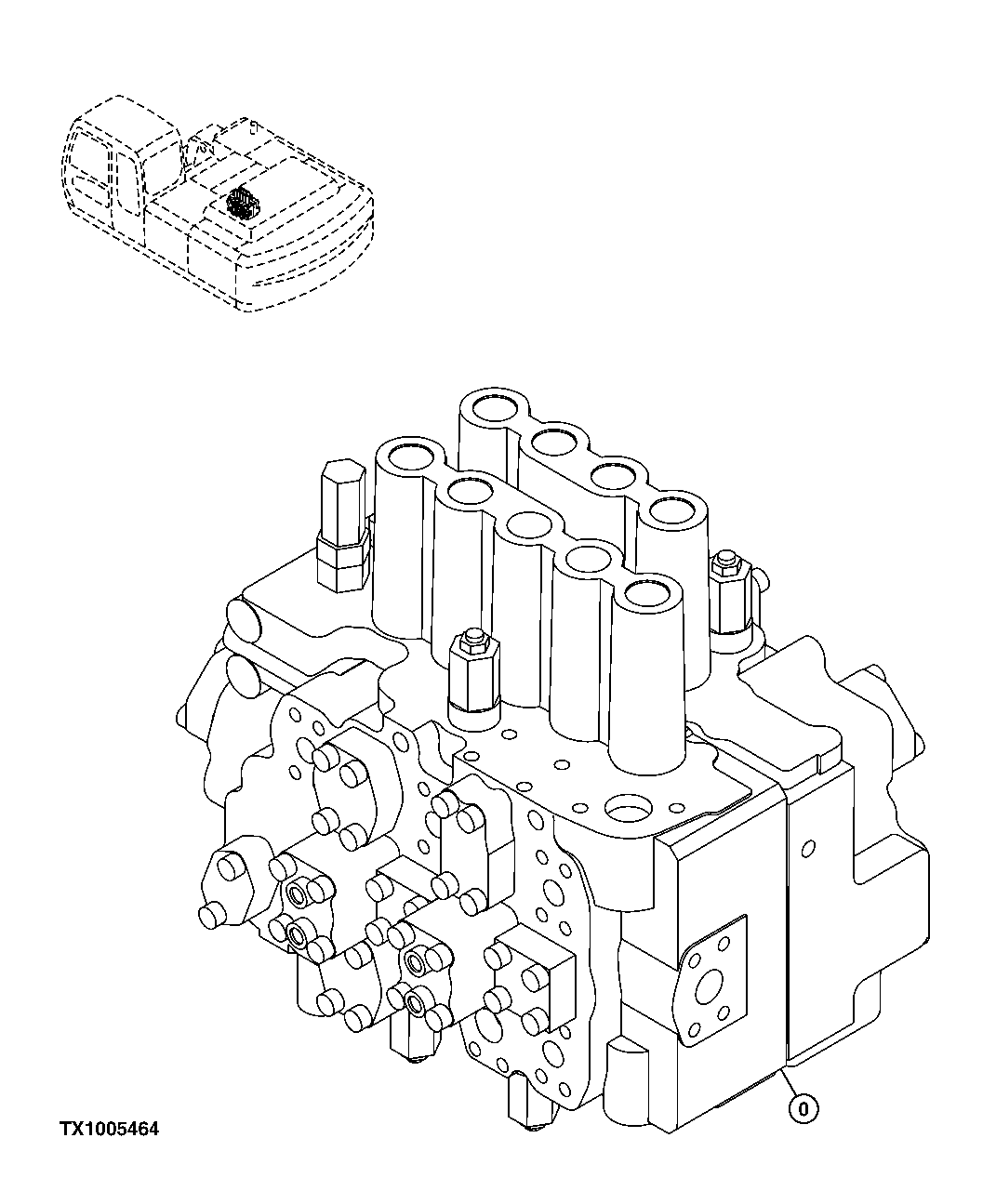

Схема запчастей John Deere 30CLC - 217 - CONTROL VALVE (SUPER LONG FRONT) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Control Valve

( 4475226 CONTROL VALVE NOT INCLU DED IN SUPER LONG FRONT FIELD KIT)

1шт.

0A

4469510

Spool Valve

(ARM I SPOOL) (NOT ILLUSTRATED)

1шт.

0B

4469506

Spool Valve

(BOOM I SPOOL) (NOT ILLUSTRATED)

1шт.

0C

4354622

Pressure Relief Valve

(BUCKET RELIEF VALVE) (NOT ILLUSTRATED)

1шт.

0D

4282718

Pressure Relief Valve

(ARM RELIEF VALVE) (NOT ILLUSTRATED)

1шт.

50

Kit

( AT314802 NLA) Not Illustrated

1шт.
