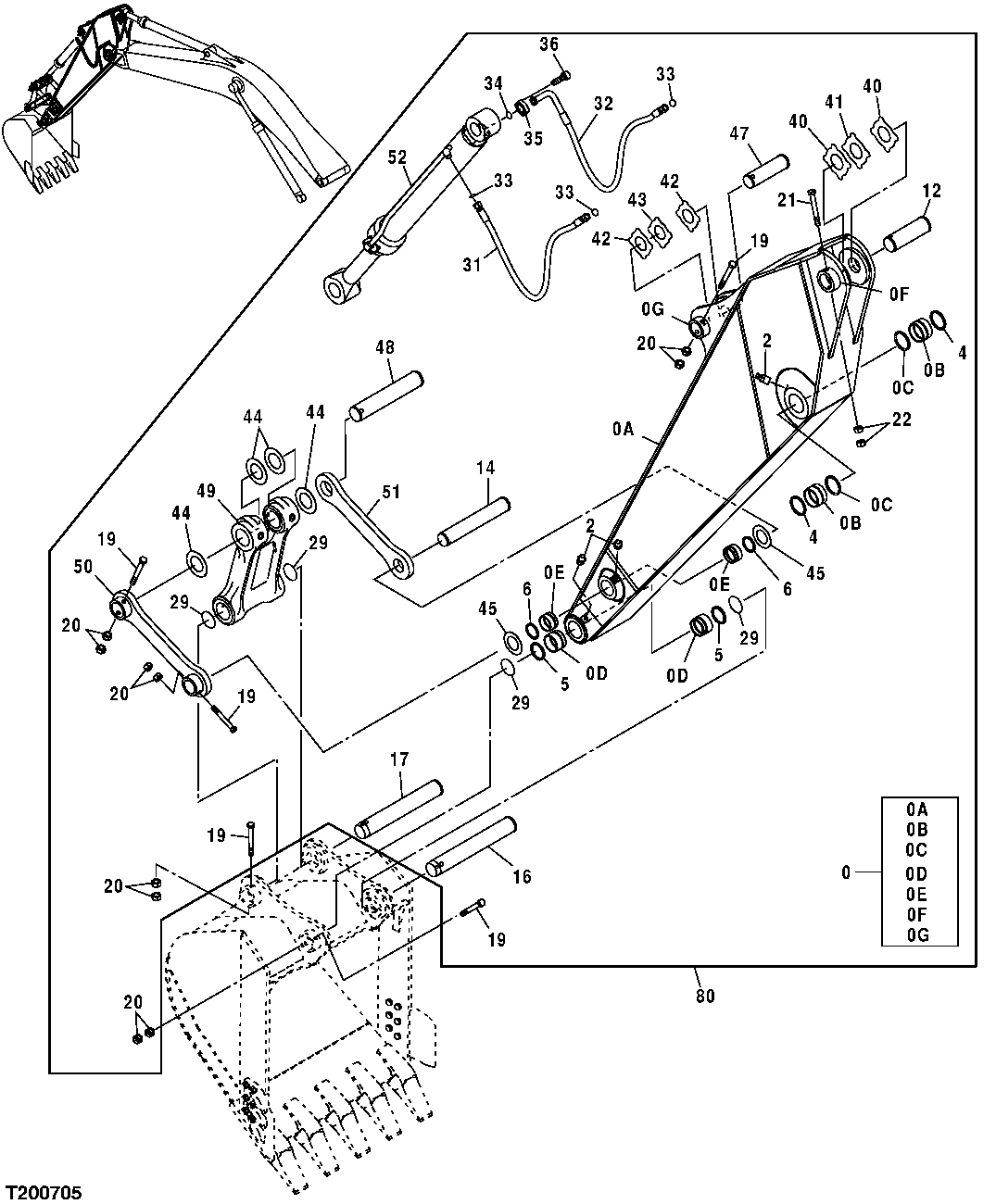

Запчасти John Deere 30CLC 210 - STANDARD ARM 2.96 M 3340 BACKHOE AND EXCAVATOR FRAMES

0

7038099

Arm

(SUB FOR TH7038099)(ARM ASSE MBLY WITH SHIMS AND WASHERS)

1шт.

0A

Arm

(ORDER 7038099)( 5007435 NLA)

1шт.

0B

4443883

Bushing

(SUB FOR TH4443883)

2шт.

0C

TH102411

Seal

(SUB FOR 4074008)

2шт.

0D

4443880

Bushing

(SUB FOR TH4443880)

2шт.

0E

4434036

Bushing

(SUB FOR TH4434036)

2шт.

0F

4434956

Stop

(SUB FOR TH4434956)

1шт.

0G

4434953

Stop

(SUB FOR TH4434953)

1шт.

0H

8079962

Boss

Replacement Arm End Parts Not Illustrated

1шт.

2

TH100074

Lubrication Fitting

(SUB FOR J75481)

6шт.

4

TH102411

Seal

(SUB FOR 4074008)

2шт.

5

TH102445

Seal

(SUB FOR 4067901)

2шт.

6

TH102446

Seal

(SUB FOR 4067902)

2шт.

12

3088751

Pin

(SUB FOR TH3088751)

1шт.

14

3088752

Pin

(SUB FOR TH3088752)

1шт.

16

3088753

Pin

(SUB FOR TH3088753)

1шт.

17

3088754

Pin

(SUB FOR TH3088754)

1шт.

19

4435126

Pin Fastener

(SUB FOR TH4435126)

5шт.

20

14M7277

Nut

M20 (SUB FOR J950020 ) (SUB FOR 3063826)

10шт.

21

4435128

Pin Fastener

(SUB FOR TH4435128)

1шт.

22

R114125

Nut

(SUB FOR THJ950022 OR J950022)

2шт.

29

4089028

O-Ring

(STANDARD O-RING)

4шт.

AT349466

Seal

(SPLIT O-RING)

4шт.

31

AT155741

Hydraulic Hose

(SUB FOR 4303122)

1шт.

32

AT155740

Hydraulic Hose

(SUB FOR 4303123)

1шт.

33

T77858

O-Ring

(SUB FOR 4187308)

3шт.

34

966993

O-Ring

1шт.

35

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

36

19M9163

Screw

M12 X 40 (SUB FOR J781240)

4шт.

40

4470743

Thrust Washer

(SUB FOR 4444284)

2шт.

41

4444285

Thrust Washer

(SUB FOR TH4444285)

1шт.

42

4444286

Thrust Washer

(SUB FOR TH4444286)

2шт.

43

4444287

Thrust Washer

(SUB FOR TH4444287)

1шт.

44

4476062

Thrust Washer

(SUB FOR 4450013, TH4450013)

4шт.

45

4450012

Thrust Washer

(SUB FOR TH4450012)

2шт.

47

AT217742

Pin

(SUB FOR 3076627)

1шт.

48

T138885

Pin

(SUB FOR 3038448 OR TH109813 ) (ALSO ORDER T138902 AND 19M8029)

1шт.

T138902

Bushing

1шт.

19M8029

Cap Screw

M16 X 30 (SUB FOR 19M7608)

1шт.

49

Link

(SEE SEPARATE PAGE FOR DETAIL OF BUCKET LINK)

1шт.

50

8082552G

Link

(SUB FOR 8082552J, 8082552 OR TH8082552J)

1шт.

51

3056355J

Link

(SUB FOR TH3056355J)

1шт.

52

Cylinder

(SEE SEPARATE PAGE FOR D ETAL OF BUCKET CYLINDER)

1шт.

80

AT195090

Arm

(ASSY) (INCLUDES STANDARD ARM, BU CKET CYLINDER, HOSES, AND LINKAGE)

1шт.
