Запчасти John Deere 30CLC 205 - PILOT VALVE COMPONENTS 3315 CONTROL LINKAGE

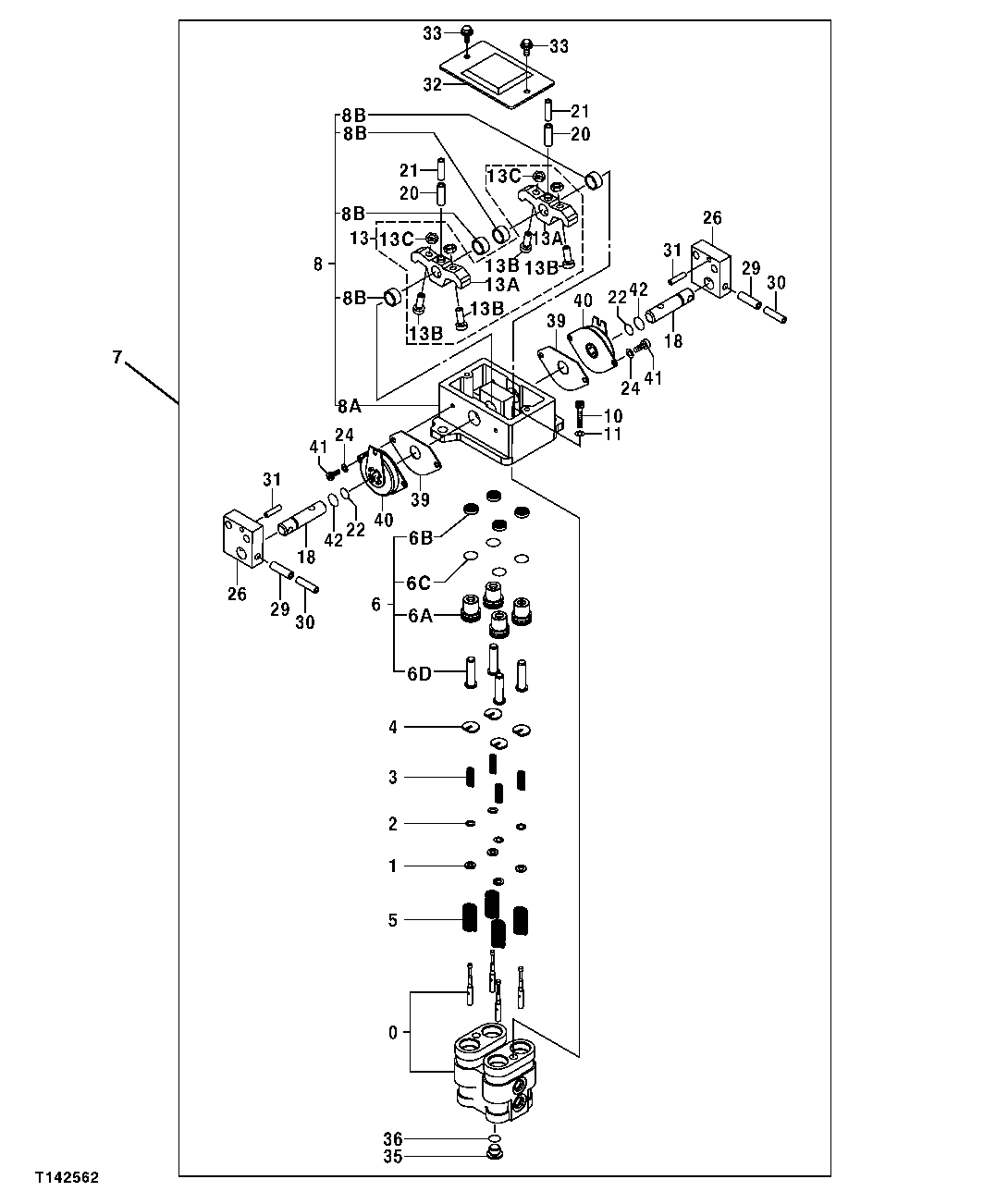

Схема запчастей John Deere 30CLC - 205 - PILOT VALVE COMPONENTS 3315 CONTROL LINKAGE

Артикул

Название

Примечание

Количество

0

Housing

(SUB FOR (1) AT216001) ( 8063718 NLA)

1шт.

1

4319299

Spacer

(SUB FOR AT215885)

4шт.

2

4662206

Shim

(SUB FOR 4437106)

12шт.

3

4368629

Compression Spring

(SUB FOR AT215954)

4шт.

4

4364970

Guide

(SUB FOR AT215948)

4шт.

5

4368630

Compression Spring

(SUB FOR AT215955)

4шт.

6

9151724

Plunger

41 mm OD, (SUB FOR AT216016)

4шт.

6A

Bushing

( AT217942 NLA)

1шт.

6B

4447050

Seal

(SUB FOR TH4447050)

1шт.

6C

CH11562

O-Ring

1шт.

6D

3072517

Plunger

(SUB FOR AT215869)

1шт.

7

9195307

Hydr./Pilot Control Valve

(SUB FOR TH9195307)

1шт.

8

Holder

(SUB FOR (1) TH9184275) ( 9184275 NLA

1шт.

8A

Holder

( TH2044332 NLA)

1шт.

8B

4437433

Bushing

(SUB FOR TH4437433)

4шт.

10

19M7576

Screw

M10 X 30 (SUB FOR J781030)

2шт.

11

12M7066

Lock Washer

10 mm

2шт.

13

9199146

Cam Kit

(SUB FOR TH9199146)

2шт.

13A

Cam

TH3087264 NLA)

1шт.

13B

4425290

Screw

(SUB FOR TH4425290)

2шт.

13C

14M7254

Nut

M8 (SUB FOR TH108364 OR 4122395)

2шт.

18

4425305

Pin Fastener

(SUB FOR TH4425305)

2шт.

20

34M7225

Spring Pin

8 X 28 mm (SUB FOR 34M6402)

2шт.

21

4213419

Spring Pin

(SUB FOR TH111654)

2шт.

22

4185600

O-Ring

(SUB FOR TH4185600)

2шт.

24

12M7006

Lock Washer

6 mm

4шт.

26

3087987

Bracket

(SUB FOR TH3087987)

2шт.

29

34M7124

Spring Pin

8 X 30 mm

2шт.

30

34M7062

Spring Pin

5 X 32 mm

2шт.

31

4051262

Spring Pin

(SUB FOR AT213796)

2шт.

32

8077903

Cover

(SUB FOR TH8077903)

1шт.

33

19M7923

Cap Screw

M6 X 12

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

35

4208977

Drain Plug

(SUB FOR TH111351)

1шт.

36

CH11561

Packing

1шт.

39

4437432

Gasket

(SUB FOR TH4437432)

2шт.

40

4428902

Torsional Damper

2шт.

41

0209423

Bolt

(SUB FOR TH100738)

4шт.

42

4447067

O-Ring

(SUB FOR TH4447067)

2шт.

Выбрано товаров: 40
