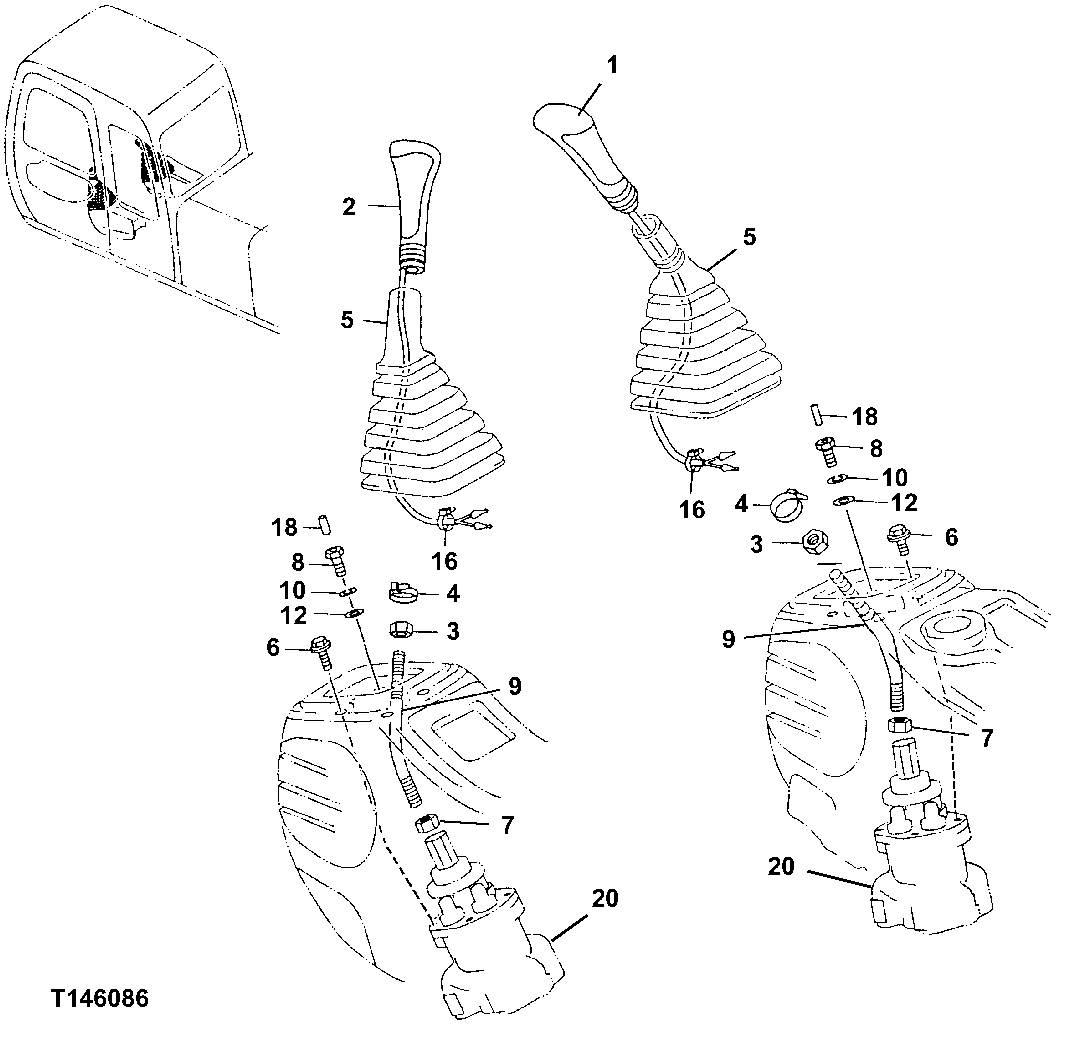

Запчасти John Deere 30CLC 200 - CONTROL LEVER (FRONT AND SWING) 3315 CONTROL LINKAGE

1

2045471

Grip

(SUB FOR TH2045471)(INC LUDES POWER LIFT SWITCH)

1шт.

2

2045472

Grip

(SUB FOR TH2045472)(INCLUDES HORN BUTTON)

1шт.

3

14M7357

Nut

M12

2шт.

4

H77698

Tie Band

SUB FOR M88199

2шт.

5

2045470

Boot

SUB FOR TH2045470

2шт.

6

Washer

12M7065 NLA

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

19M7163

Cap Screw

M8 X 25

6шт.

19M7139

Cap Screw

M8 X 20 SUB FOR J260820 OR J900820

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

6шт.

7

14M7141

Nut

M14

2шт.

8

4438279

Bolt

SUB FOR TH4438279

2шт.

4609956

Bolt

2шт.

9

4445322

Lever

SUB FOR TH4445322

2шт.

10

Washer

12M7065 NLA

2шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

16

H77698

Tie Band

2шт.

18

34M7086

Spring Pin

3 X 32 mm

2шт.

20

Hydr./Pilot Control Valve

( 9195304 NLA)

2шт.

9239583

Hydr./Pilot Control Valve

2шт.
