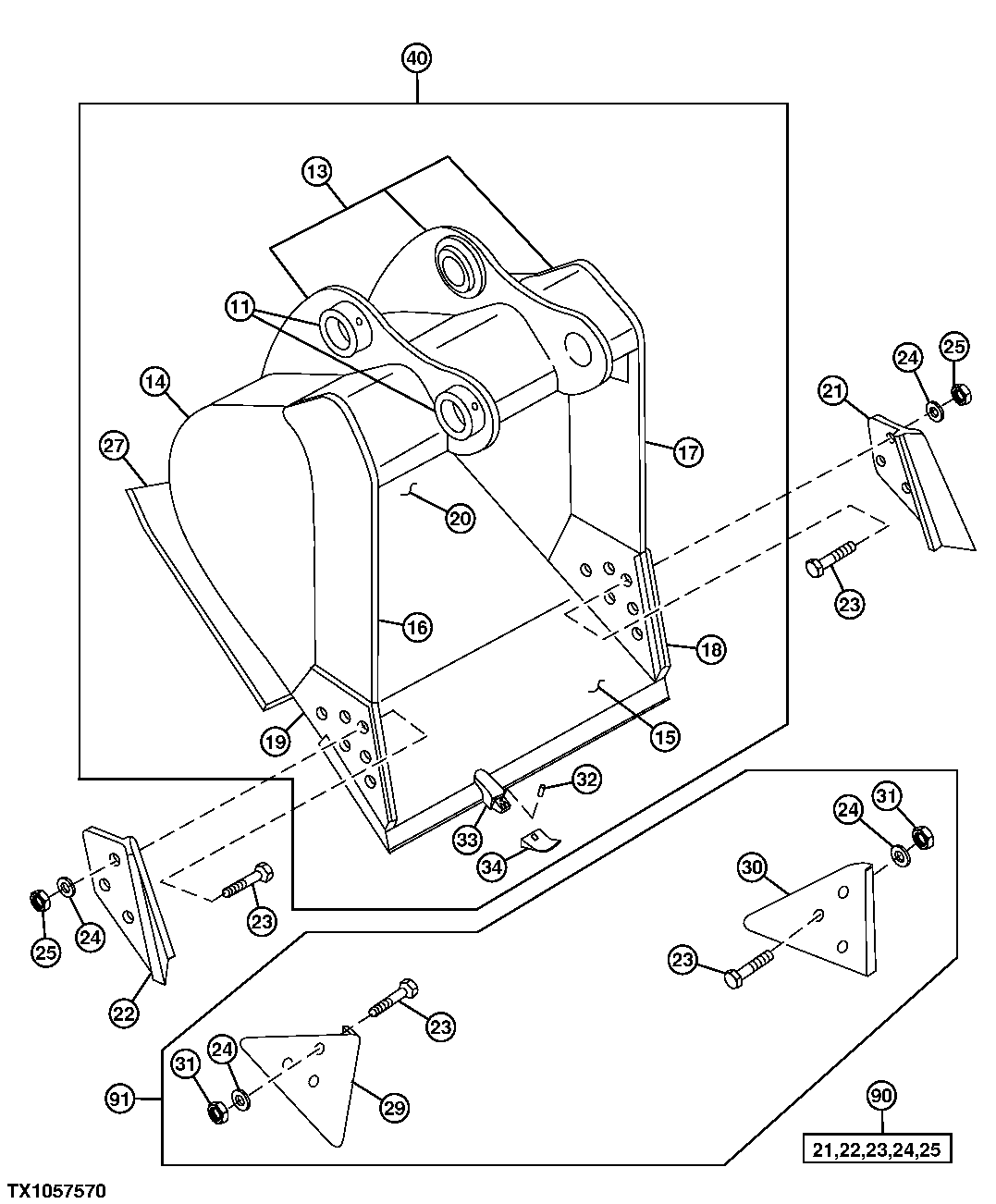

Запчасти John Deere 30CLC 182 - SEVERE DUTY PLATE LIP BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

11

TH102409

Bushing

2шт.

13

C603692

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

304371

Plate

(A) (RH/LH)

2шт.

15

AT131097

Cutting Edge

(CTL)

ARшт.

16

304368

Vertical Cutter

(A) (UPPER) (RH)

1шт.

17

304367

Vertical Cutter

(A) (UPPER) (LH)

1шт.

18

304369

Vertical Cutter

(A) (INSERT) (LH)

1шт.

19

304370

Vertical Cutter

(A) (INSERT) (RH)

1шт.

20

603868

Moldboard

(A) (30 INCH)

1шт.

603869

Moldboard

(A) (36 INCH)

1шт.

603870

Moldboard

(A) (42 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

603873

Bar

(A) (30 INCH BUCKET)

1шт.

603874

Bar

(A) (36 INCH BUCKET)

1шт.

603875

Bar

(A) (42 INCH BUCKET)

1шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

1шт.

32

TP400HD

Pin

ARшт.

33

T130X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

Excavator Bucket

(B) ( AT332714 NLA) (30 INCH/0.95 CUB IC YARD) (SUB FOR AT131046 OR AT131166)

1шт.

Excavator Bucket

(B) ( AT332715 NLA) (36 INCH/1.16 CUB IC YARD) (SUB FOR AT131047 OR AT131167)

1шт.

Excavator Bucket

(B) ( AT332716 NLA) (42 INCH/1.38 CUB IC YARD) (SUB FOR AT131048 OR AT131168)

1шт.

90

AT131085

End Bit

Side Cutter Kit (WHOLE GOODS)

1шт.

91

AT167876

Kit

Edge Protector (WHOLE GOODS)

1шт.
