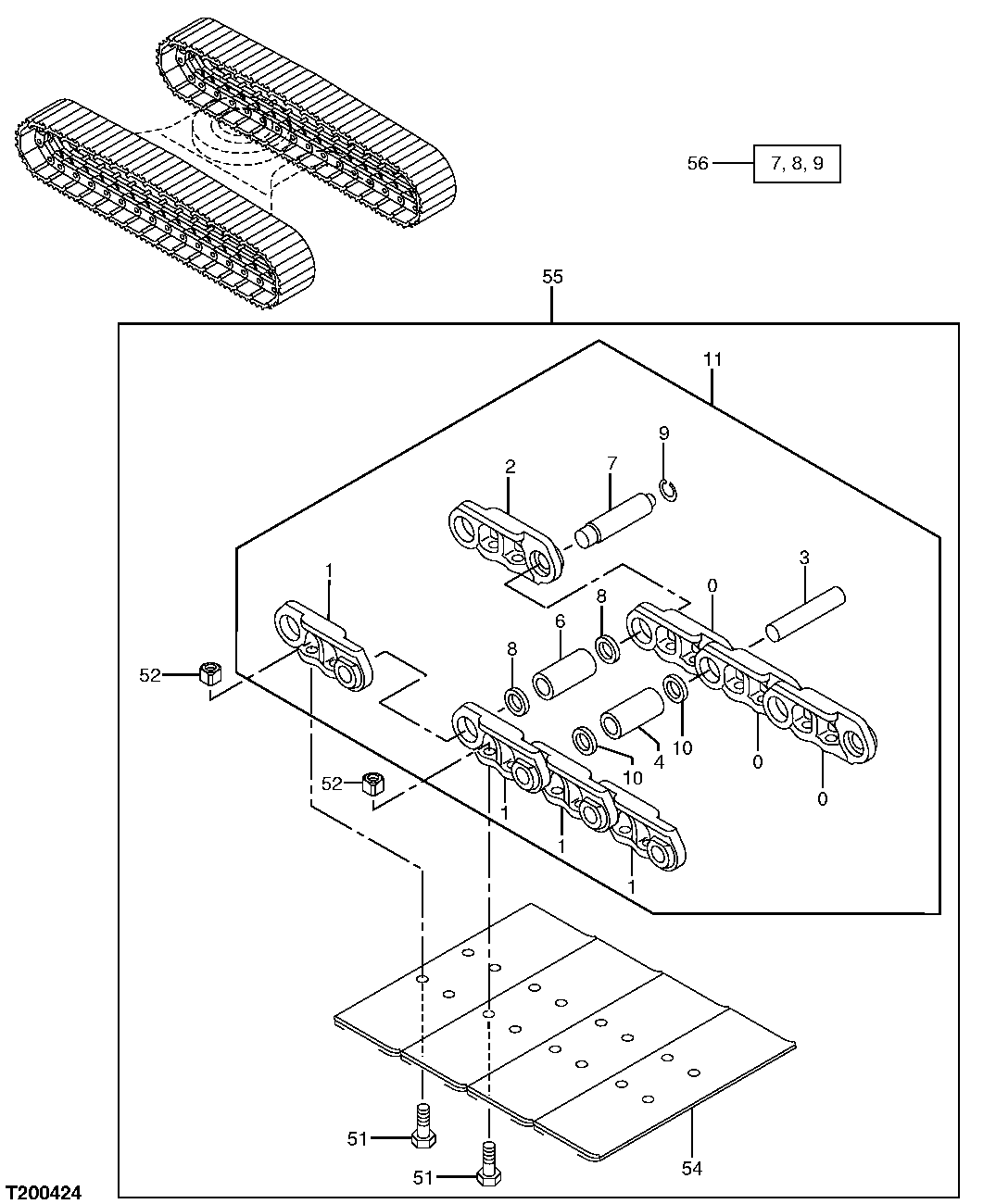

Запчасти John Deere 30CLC 9 - TRACK CHAINS, SNAP RING MASTER (SN 603367-) 0130 TRACK SYSTEMS

0

AT219480

Strutted LINK-RH

NLA, SUB 0005251R, RH

50шт.

0005251R

Track Link

RH

50шт.

1

AT219481

Strutted LINK-LH

NLA, SUB 0005252R, LH

51шт.

0005252R

Track Link

LH

50шт.

2

T209262

Master Track LINK-RH

1шт.

3

AT180028

Pin Fastener

50шт.

4

AT186162

Bushing

50шт.

6

AT219468

Bushing

1шт.

7

T209260

Master Track Pin

1шт.

8

AT219471

Spacer

Master

2шт.

9

T209259

Snap Ring

2шт.

10

AT186161

Seal

98шт.

11

9250497R

Track Chain W/O Shoes

SUB FOR AT311624

1шт.

51

T139614

Bolt

M20 X 55

204шт.

52

T139615

Nut

M20

204шт.

54

AT219482

Open Center 3 Bar Shoe

600 mm, Wide

51шт.

AT219483

Open Center 3 Bar Shoe

700 mm, Wide

51шт.

AT219484

Open Center 3 Bar Shoe

800 mm, Wide

51шт.

T142593

Single Bar Shoe

650 mm, Heavy Duty

51шт.

T186385

Open Center 2 Bar Shoe

700 mm, Heavy Duty

51шт.

55

AT311625

Track Assembly With Shoes

600 mm

1шт.

AT311626

Track Assembly With Shoes

700 mm

1шт.

AT311627

Track Assembly With Shoes

800 mm

1шт.

56

AT313621

Chain Kit

Master Pin Kit

1шт.
