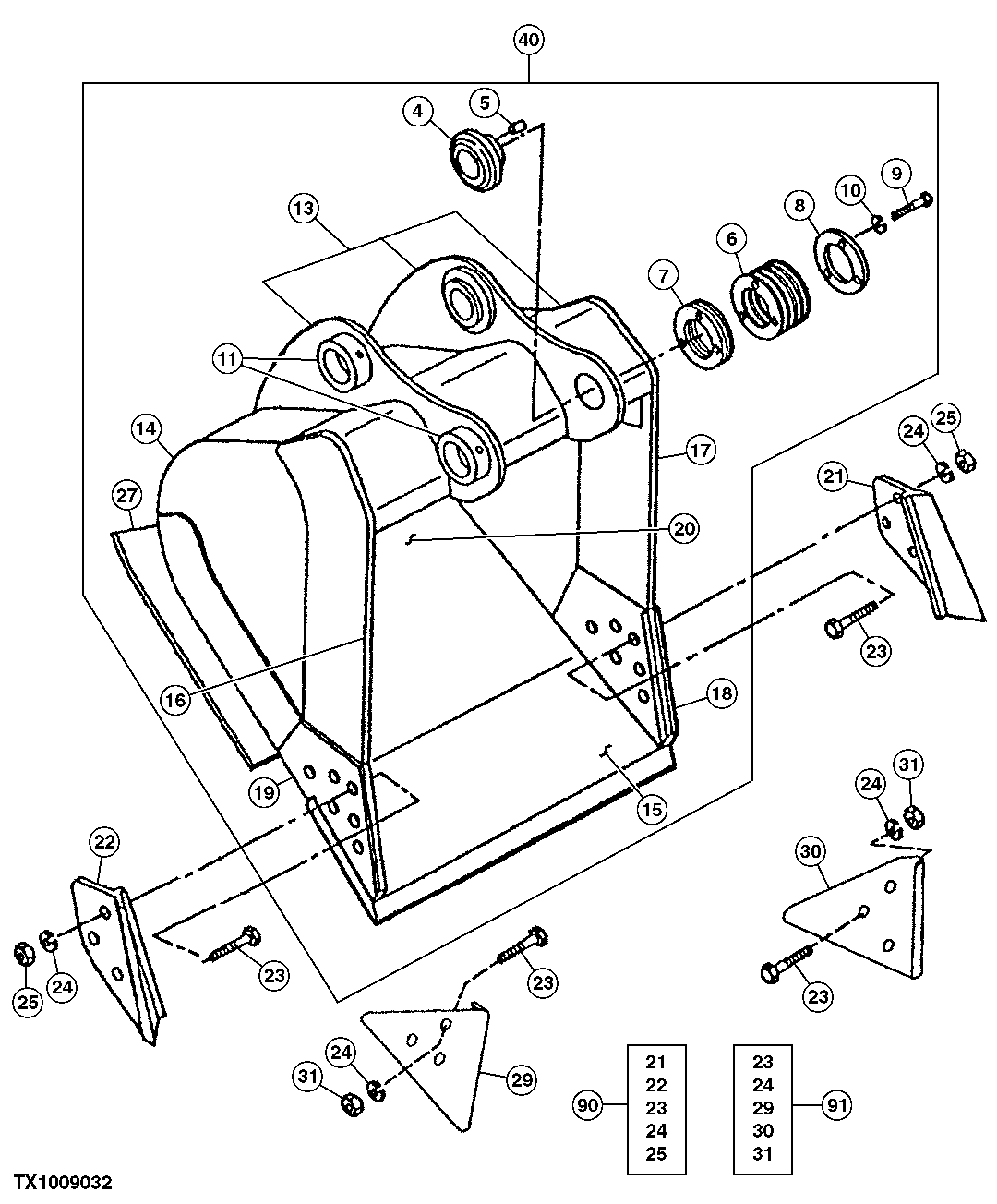

Запчасти John Deere 30CLC 181 - SEVERE DUTY PLATE LIP BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

4

AT131084

Bushing

1шт.

5

R48685

Dowel Pin

1шт.

6

TH102460

Washer

1 MM

9шт.

7

TH102461

Shim

1шт.

8

Plate

( TH102463 NLA)

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH102409

Bushing

2шт.

13

C603692

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

304371

Plate

(A) (RH/LH)

2шт.

15

AT131097

Cutting Edge

(CTL)

ARшт.

16

304368

Vertical Cutter

(A) (UPPER) (RH)

1шт.

17

304367

Vertical Cutter

(A) (UPPER) (LH)

1шт.

18

304369

Vertical Cutter

(A) (INSERT) (LH)

1шт.

19

304370

Vertical Cutter

(A) (INSERT) (RH)

1шт.

20

603868

Moldboard

(A) (30 INCH)

1шт.

603869

Moldboard

(A) (36 INCH)

1шт.

603870

Moldboard

(A) (42 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

603873

Bar

(A) (30 INCH BUCKET)

1шт.

603874

Bar

(A) (36 INCH BUCKET)

1шт.

603875

Bar

(A) (42 INCH BUCKET)

1шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

1шт.

40

Excavator Bucket

(B) ( AT163645 NLA) (30 INCH/0.95 CUBIC YARD) (WHOLE GOODS) (SUB AT332 714 ) (SUB FOR AT131046 OR AT131166)

1шт.

Excavator Bucket

(B) ( AT163646 NLA) (36 INCH/1.16 CUBIC YARD) (WHOLE GOODS) (SUB AT332 715 ) (SUB FOR AT131047 OR AT131167)

1шт.

Excavator Bucket

(B) ( AT163647 NLA) (42 INCH/1.38 CUBIC YARD) (WHOLE GOODS) (SUB AT332 716 ) (SUB FOR AT131048 OR AT131168)

1шт.

90

AT131085

End Bit

Side Cutter Kit (WHOLE GOODS)

1шт.

91

AT167876

Kit

Edge Protector (WHOLE GOODS)

1шт.
