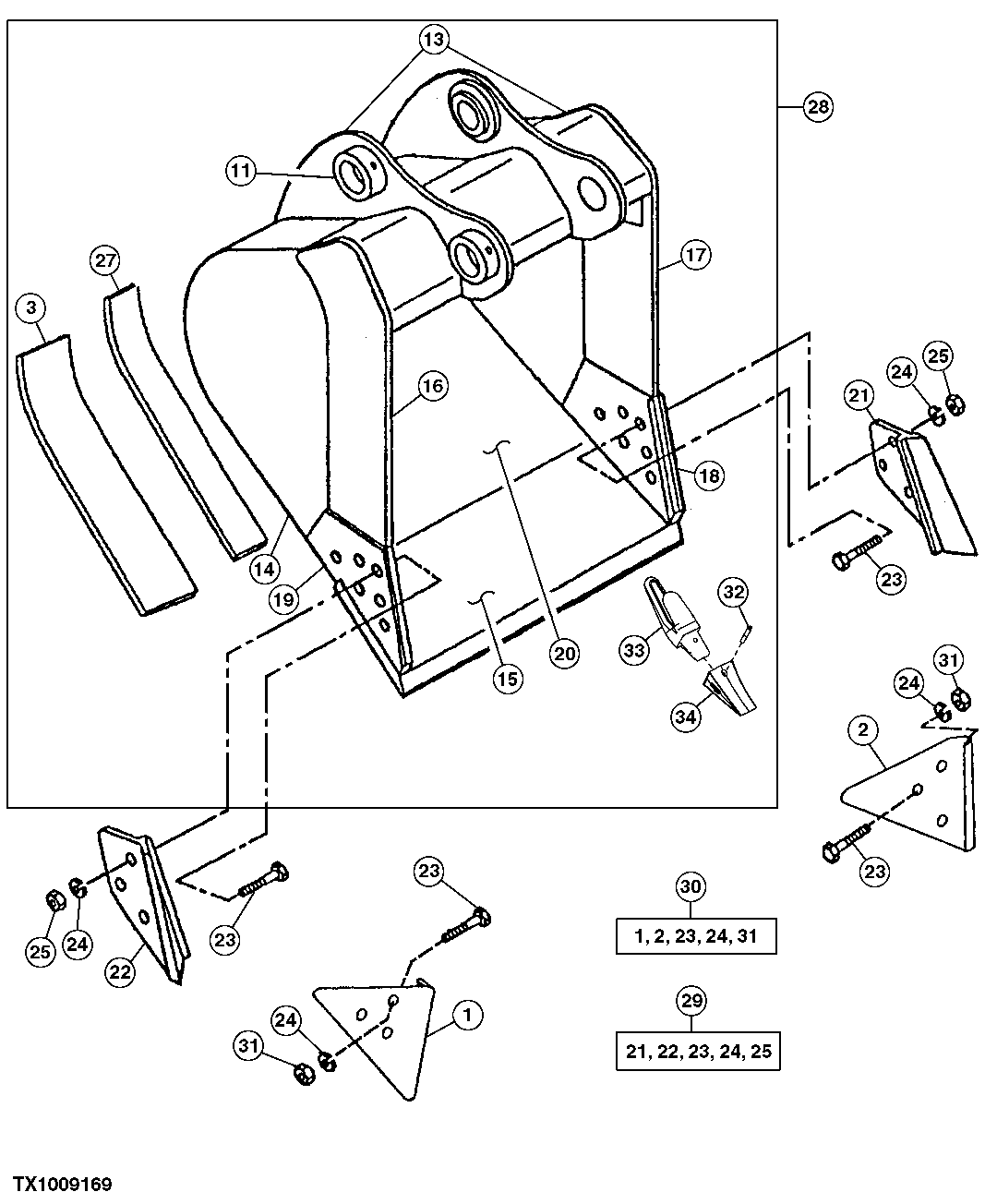

Запчасти John Deere 30CLC 178 - HEAVY DUTY HIGH CAPACITY BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

1

Shroud

RH

1шт.

2

Shroud

LH

1шт.

3

304559

Bar

Wear; Outer

2шт.

11

TH102409

Bushing

2шт.

13

C603692

Pivot

Bucket Ear Blank Assembly

1шт.

14

306995

Plate

RH/LH

2шт.

15

AT131097

Dura-Max Cutting Edge

CUT TO LENGTH; 72"

1шт.

T154189

Dura-Max Cutting Edge

CUT TO LENGTH; 42"

1шт.

T154188

Dura-Max Cutting Edge

CUT TO LENGTH; 36"

1шт.

16

300283

Vertical Cutter

UPPER RH

1шт.

17

300284

Vertical Cutter

UPPER LH

1шт.

18

304568

Vertical Cutter

LH

1шт.

19

304567

Vertical Cutter

RH

1шт.

20

600171

Moldboard

UPPER; 20 INCH

1шт.

600172

Moldboard

UPPER; 36 INCH

1шт.

600173

Moldboard

UPPER; 42 INCH

1шт.

600166

Moldboard

LOWER; 30 INCH

1шт.

600167

Moldboard

LOWER; 36 INCH

1шт.

600168

Moldboard

LOWER; 42 INCH

1шт.

21

Cutting Edge

LH

1шт.

22

Cutting Edge

RH

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300291

Bar

Wear; Inner

2шт.

28

AT339182

Excavator Bucket

24 INCH/0.92 CUBIC YARD; AT332709 NLA

1шт.

AT339186

Excavator Bucket

30 INCH/1.20 CUBIC YARD; AT332710 NLA

1шт.

AT339189

Excavator Bucket

36 INCH/1.48 CUBIC YARD; AT332711 NLA

1шт.

AT339191

Excavator Bucket

42 INCH/1.75 CUBIC YARD; AT332712 NLA

1шт.

29

AT131085

End Bit

Side Cutter Kit

1шт.

30

AT167876

Kit

Edge Protector

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.
