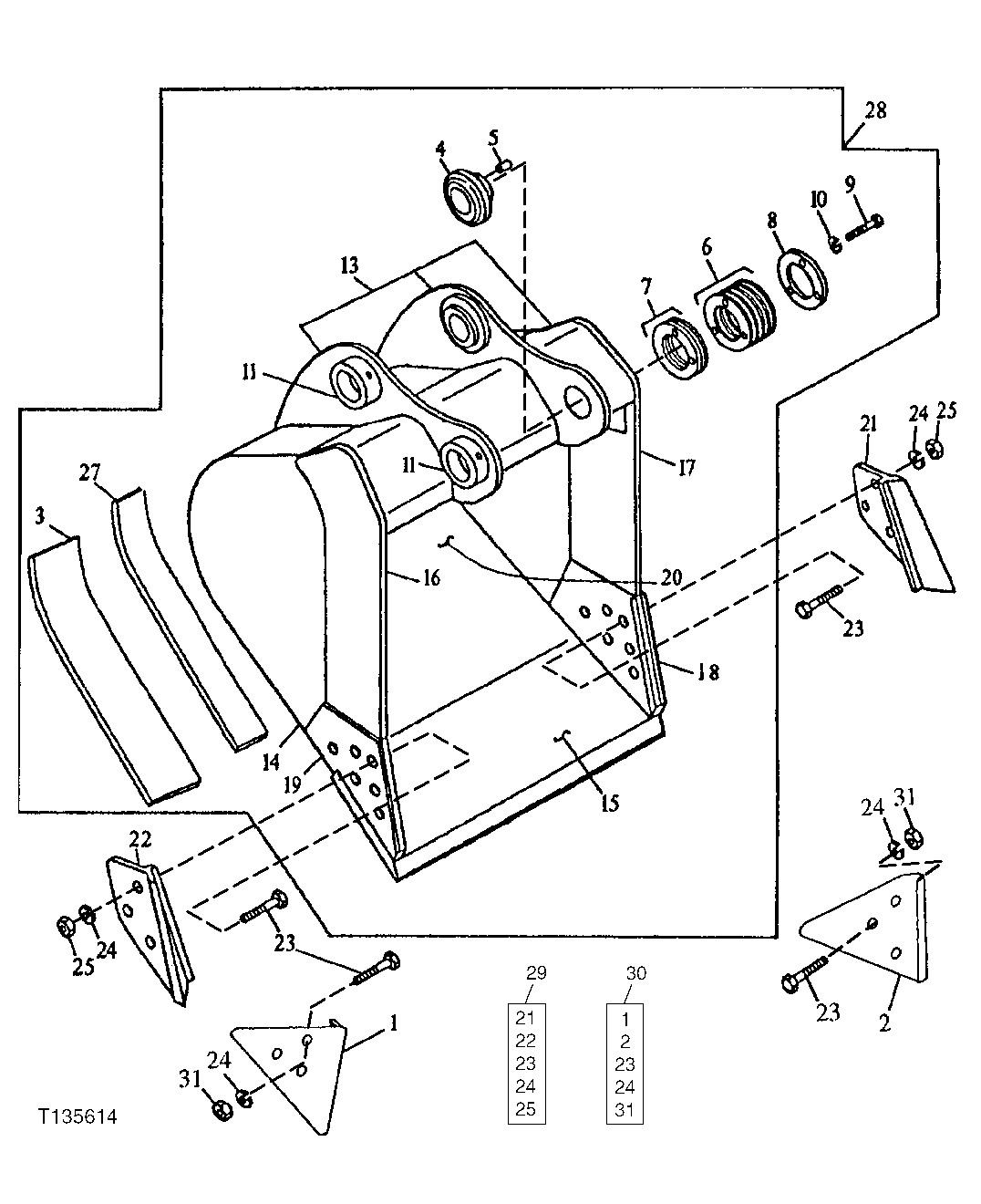

Запчасти John Deere 30CLC 177 - HEAVY DUTY HIGH CAPACITY BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH
№
Артикул
Название
Примечание
Количество
1
Shroud
(RH)
1шт.
2
Shroud
(LH)
1шт.
3
304559
Bar
(B) (WEAR) (OUTER)
2шт.
4
AT131084
Bushing
1шт.
5
R48685
Dowel Pin
1шт.
6
TH102460
Washer
1 MM
6шт.
7
TH102461
Shim
2шт.
8
Plate
( TH102463 NLA)
1шт.
9
19H2706
Cap Screw
5/8" X 2"
3шт.
10
12H294
Lock Washer
5/8"
3шт.
11
TH102409
Bushing
2шт.
13
C603692
Pivot
(B) Bucket Ear Blank Assembly
1шт.
14
306995
Plate
(B) (RH/LH)
2шт.
15
AT131097
Dura-Max Cutting Edge
(CUT TO LENGTH) (72")
1шт.
T154189
Dura-Max Cutting Edge
(CUT TO LENGTH) (42")
1шт.
T154188
Dura-Max Cutting Edge
(CUT TO LENGTH) (36")
1шт.
16
300283
Vertical Cutter
(B) (UPPER RH)
1шт.
17
300284
Vertical Cutter
(B) (UPPER LH)
1шт.
18
304568
Vertical Cutter
(B) (LH)
1шт.
19
304567
Vertical Cutter
(B) (RH)
1шт.
20
600171
Moldboard
(B) (UPPER) (20 INCH)
1шт.
600172
Moldboard
(B) (UPPER) (36 INCH)
1шт.
600173
Moldboard
(B) (UPPER) (42 INCH)
1шт.
600166
Moldboard
(B) (LOWER) (30 INCH)
1шт.
600167
Moldboard
(B) (LOWER) (36 INCH)
1шт.
600168
Moldboard
(B) (LOWER) (42 INCH)
1шт.
21
Cutting Edge
(LH)
1шт.
22
Cutting Edge
(RH)
1шт.
23
09H1771
Bolt
7/8" X 3"
6шт.
24
12H245
Lock Washer
7/8"
6шт.
25
14H1077
Nut
7/8"
6шт.
27
300291
Bar
(B) (WEAR) (INNER)
2шт.
28
Excavator Bucket
(A) (24 INCH/0.92 CUBIC YARD) (W HOLE GOODS) (SUB AT332709 ) (SUB F OR AT163638, AT160743 OR AT160744)
1шт.
Excavator Bucket
(A) (30 INCH/1.20 CUBIC YARD) (W HOLE GOODS) (SUB AT332710 ) (SUB F OR AT163639, AT131041 OR AT131161)
1шт.
Excavator Bucket
(A) (36 INCH/1.48 CUBIC YARD) (W HOLE GOODS) (SUB AT332711 ) (SUB F OR AT163640, AT131042 OR AT131162)
1шт.
Excavator Bucket
(A) (42 INCH/1.75 CUBIC YARD) (W HOLE GOODS) (SUB AT332712 ) (SUB F OR AT163641, AT131043 OR AT131163)
1шт.
29
AT131085
Kit
Side Cutter Kit (WHOLE GOODS)
1шт.
30
AT167876
Kit
Edge Protector (WHOLE GOODS)
1шт.
31
14H1044
Nut
7/8"
6шт.
Выбрано товаров: 39
