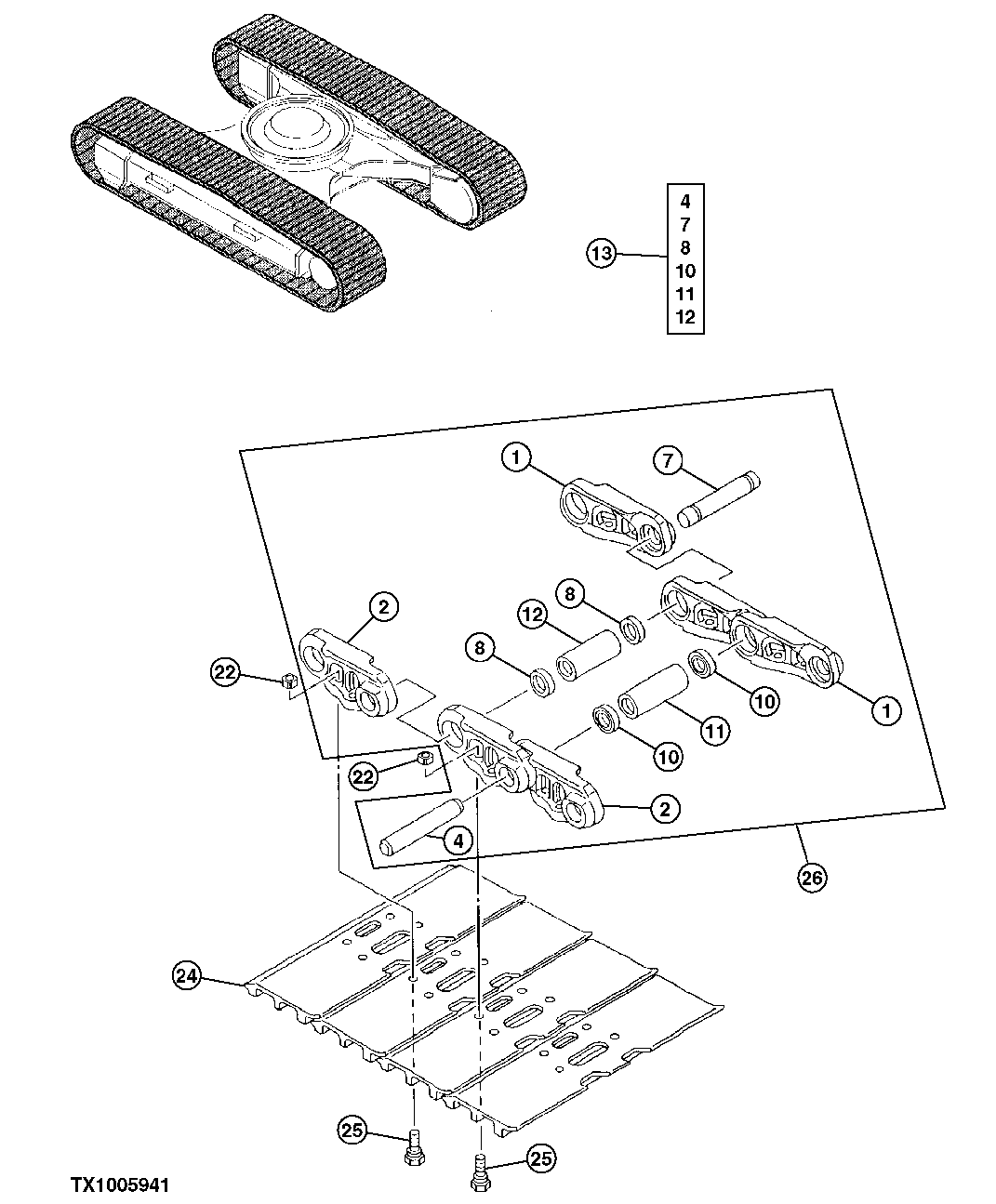

Запчасти John Deere 30CLC 8 - Track Chains, Press in Master ( - 603366) 0130 TRACK SYSTEMS

1

AT219480

Strutted LINK-RH

AT180025, AT219480 NLA, SUB 0005251R, RH

51шт.

0005251R

Track Link

RH

51шт.

2

AT219481

Strutted LINK-LH

AT180027, AT219481 NLA, SUB 0005252R, LH

51шт.

0005252R

Track Link

LH

51шт.

4

AT180030

Pin Fastener

37.720 X 212 mm (1.485" X 8.346") A LSO ORDER (2) AT219471 AND AT219468

1шт.

7

AT180028

Pin Fastener

50шт.

8

AT180029

Seal

Dual Spring Washer

200шт.

AT186161

Seal

M Seal

100шт.

10

AT219471

Spacer

Master ALSO ORDER AT180030 AN D AT219468, SUB FOR FFSB113387

2шт.

11

AT219468

Bushing

Master FFSB113387 NLA, ALSO ORDER AT180 030 AND (2) AT219471, SUB FOR FFSB113386

1шт.

12

AT186162

Bushing

SUB FOR AT180032, ALSO ORDER AT186161

50шт.

13

AT187185

Pin & Bushing Kit

1шт.

22

T139615

Nut

M20

204шт.

24

AT219482

Open Center 3 Bar Shoe

600 mm, Each Side Of Unit

51шт.

AT219483

Open Center 3 Bar Shoe

700 mm, Each Side Of Unit

51шт.

AT219484

Open Center 3 Bar Shoe

800 mm, Each Side Of Unit

51шт.

T142593

Single Bar Shoe

650 mm, Heavy Duty Each Side Of Unit

51шт.

T186385

Open Center 2 Bar Shoe

700 mm, Heavy Duty Each Side Of Unit

51шт.

25

T139614

Bolt

M20 X 55

204шт.

26

9250497R

Track Chain W/O Shoes

SUB FOR AT280815 AND AT311624 Snap Rin g Style Quantity of 1 Each Side of Unit

2шт.
