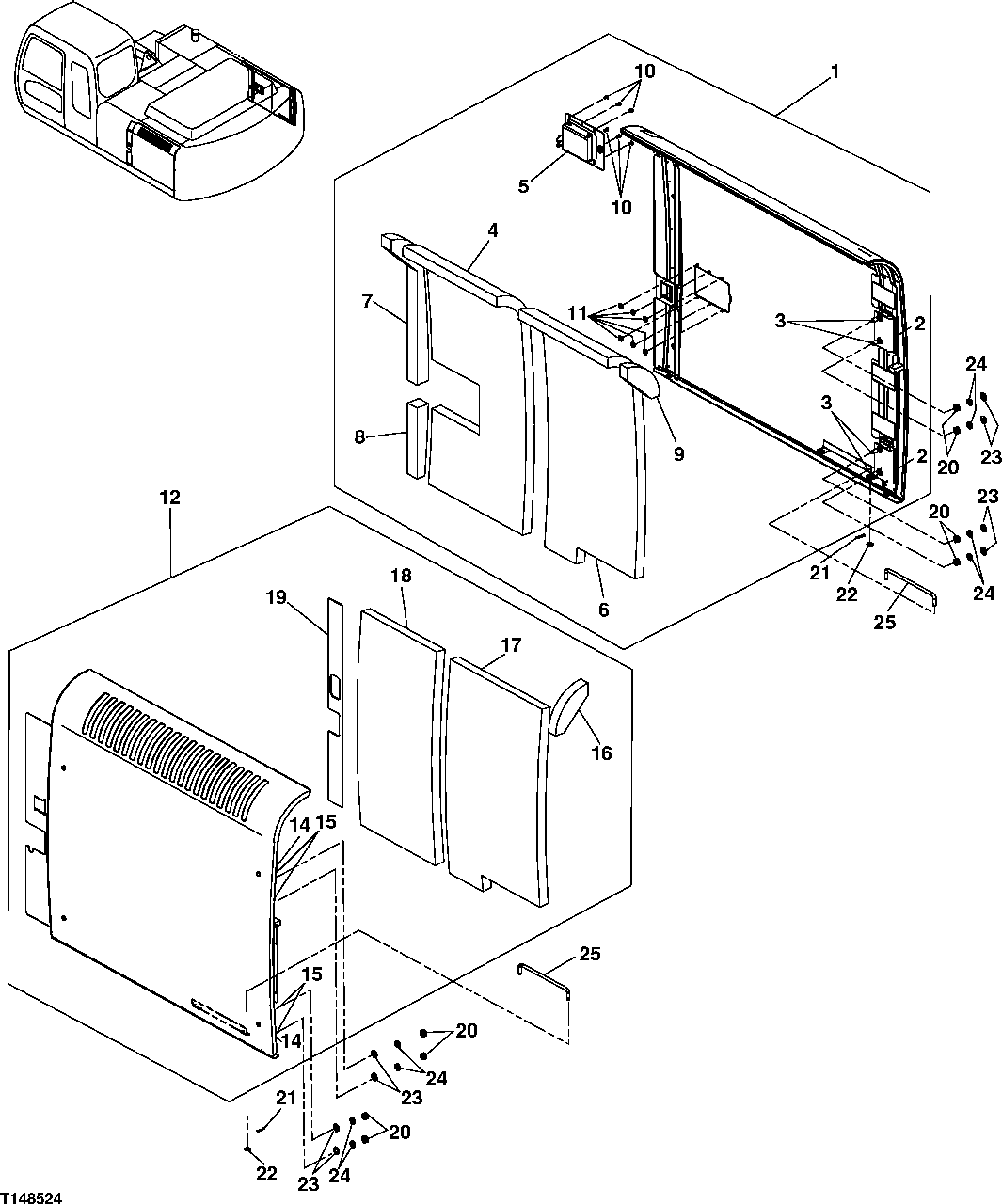

Запчасти John Deere 30CLC 158 - COVER 1910 HOOD OR ENGINE ENCLOSURE

1

DH700049J

Door

1шт.

2

Hinge

2шт.

3

19M7402

Cap Screw

M10 X 25

4шт.

4

4429472

Isolator

(SUB FOR TH4429472)

1шт.

5

DH400030

Latch

(SUB FOR THDH400030)

1шт.

6

DH400372

Isolator

(SUB FOR THDH400372)

1шт.

7

DH400341

Isolator

(SUB FOR THDH400341)

1шт.

8

DH400347

Isolator

(SUB FOR THDH400347)

1шт.

9

DH400332

Isolator

(SUB FOR THDH400332)

1шт.

10

M63200

Rivet

4.775 mm (3/16")

6шт.

11

24M7138

Washer

5.300 X 15 X 1 mm

6шт.

12

DH700050J

Door

STD

1шт.

DH700128

Door

Vented

1шт.

14

Hinge

2шт.

15

19M7402

Cap Screw

M10 X 25

4шт.

16

DH400332

Isolator

(SUB FOR THDH400332)

1шт.

17

DH400373

Isolator

(SUB FOR THDH400373)

1шт.

18

DH400374

Isolator

(SUB FOR THDH400374)

1шт.

19

DH400350

Isolator

(SUB FOR THDH400350)

1шт.

20

14M7274

Nut

M10

8шт.

21

H132922

Cotter Pin

2шт.

22

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

23

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

24

12M7066

Lock Washer

10 mm

8шт.

25

4341788

Rod

(SUB FOR AT213884 OR 4341788J)

2шт.
