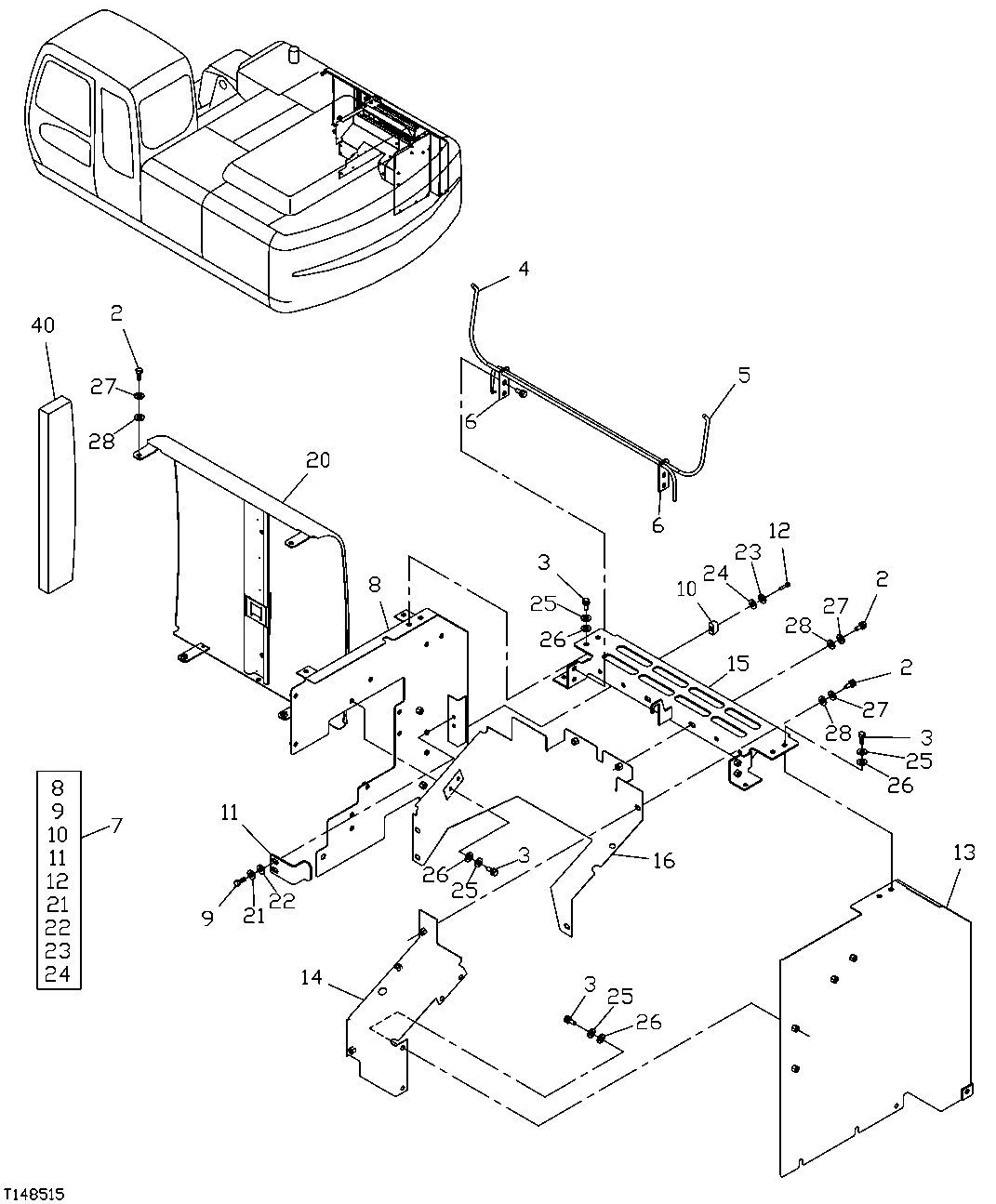

Запчасти John Deere 30CLC 157 - COVER 1910 HOOD OR ENGINE ENCLOSURE

2

19M7662

Cap Screw

M10 X 30

9шт.

3

19M7662

Cap Screw

M10 X 30

18шт.

4

DH300075

Bracket

(SUB FOR THDH300075)

1шт.

5

DH300076

Bracket

(SUB FOR THDH300076)

1шт.

6

DH400498

Bracket

(SUB FOR AT155284)( 4261669 NA)

2шт.

7

Cover

( DH900139 NLA)

1шт.

8

DH600003

Cover

(SUB FOR THDH600003)

1шт.

9

19M7662

Cap Screw

M10 X 30

2шт.

10

4609950

Stop

(SUB FOR TH4424157, 4424157)

1шт.

11

4431357

Stop

(SUB FOR TH4431357)

1шт.

12

19M7177

Cap Screw

M6 X 35

1шт.

13

DH700016

Cover

(SUB FOR THDH700016)

1шт.

14

DH800032

Cover

MUFFLER (SUB FOR THDH800032)

1шт.

15

DH800035

Cover

Pump (SUB FOR THDH800035)

1шт.

16

DH700025

Cover

MUFFLER (SUB FOR THDH700025)

1шт.

20

DH700073J

Cover

(INCLUDES DH600009J AND DH400422)

1шт.

Cover

( DH600009J NLA)

1шт.

DH400422

Isolator

1шт.

21

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

22

24M7346

Washer

11 X 20 X 2 mm

2шт.

23

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

24

12M7012

Lock Washer

6 mm

1шт.

25

12M7066

Lock Washer

10 mm

18шт.

26

24M7028

Washer

10.500 X 20 X 2 mm

18шт.

27

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

9шт.

28

24M7346

Washer

11 X 20 X 2 mm

9шт.

40

DH400422

Isolator

(SUB FOR THDH400422)

1шт.
