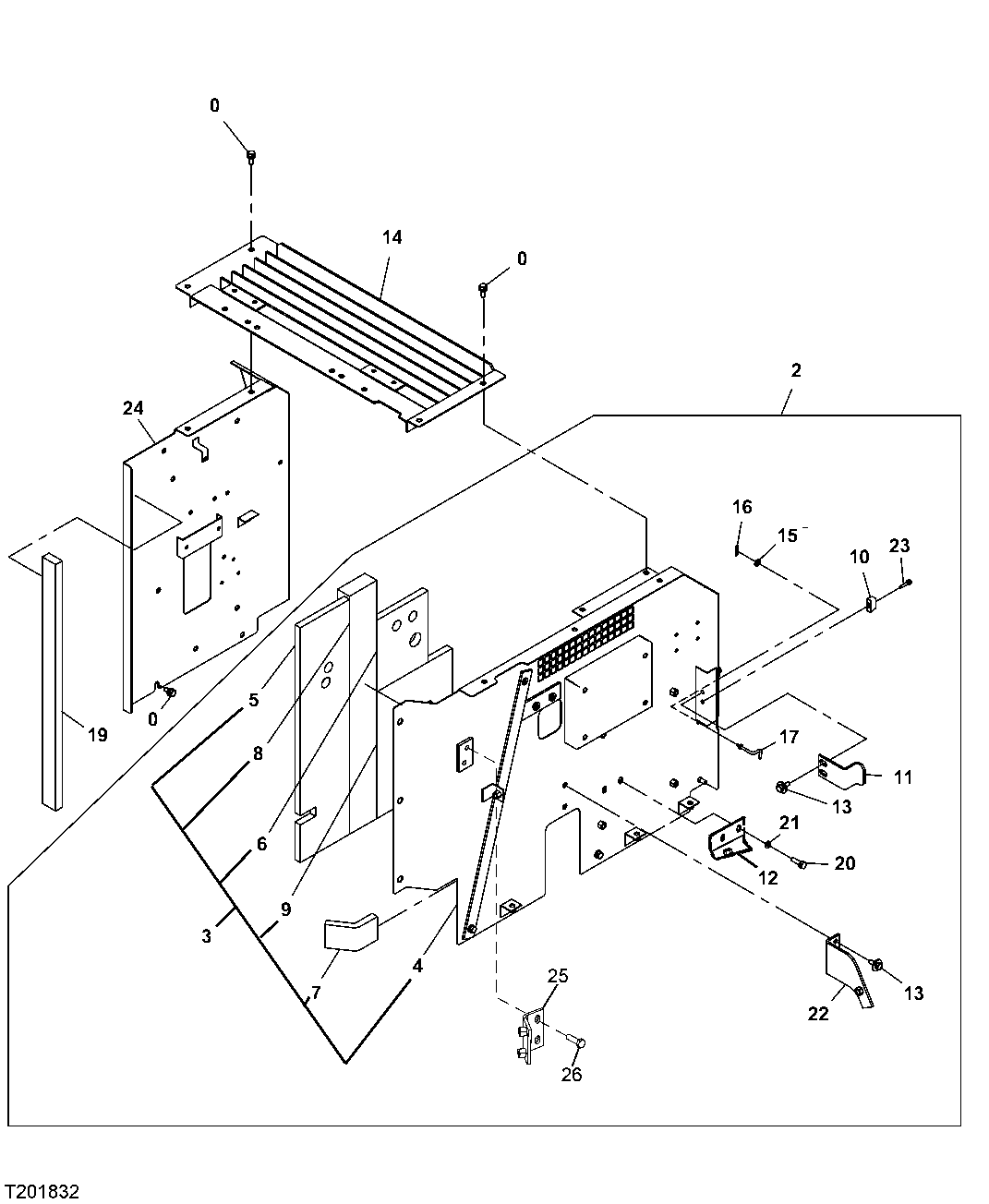

Запчасти John Deere 30CLC 156 - COVER 1910 HOOD OR ENGINE ENCLOSURE

0

19M7662

Cap Screw

M10 X 30

8шт.

12M7066

Lock Washer

10 mm

8шт.

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

2

Cover

( DH900156 NLA)

1шт.

3

DH700018

Cover

1шт.

4

DH600005

Cover

(SUB FOR THDH600005)

1шт.

5

DH400345

Isolator

(SUB FOR THDH400345)

1шт.

6

DH400346

Isolator

(SUB FOR THDH400346)

1шт.

7

DH400342

Isolator

(SUB FOR THDH400342)

1шт.

8

DH400344

Isolator

(SUB FOR THDH400344)

1шт.

9

DH400343

Isolator

(SUB FOR THDH400343)

1шт.

10

4609950

Stop

(SUB FOR TH4424157, 4424157)

2шт.

11

4431357

Stop

(SUB FOR TH4431357)

1шт.

12

DH800062

Bracket

(SUB FOR THDH800062)

1шт.

13

19M7662

Cap Screw

M10 X 30

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

14

DH700017

Cover

(SUB FOR THDH700017)

1шт.

15

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

16

M800051

Pin

(SUB FOR CH10542)

1шт.

17

DH900300

Latch

1шт.

19

DH400351

Isolator

(SUB FOR THDH400351)

1шт.

20

19M7550

Cap Screw

M10 X 35

2шт.

21

24M7346

Washer

11 X 20 X 2 mm

2шт.

22

DH800064

Bracket

1шт.

23

19M7177

Cap Screw

M6 X 35

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

12M7012

Lock Washer

6 mm

1шт.

24

DH800079

Cover

(SUB FOR THDH700019)( DH700019 NA)

1шт.

25

DH800063

Bracket

1шт.

26

19M7550

Cap Screw

M10 X 35

1шт.
