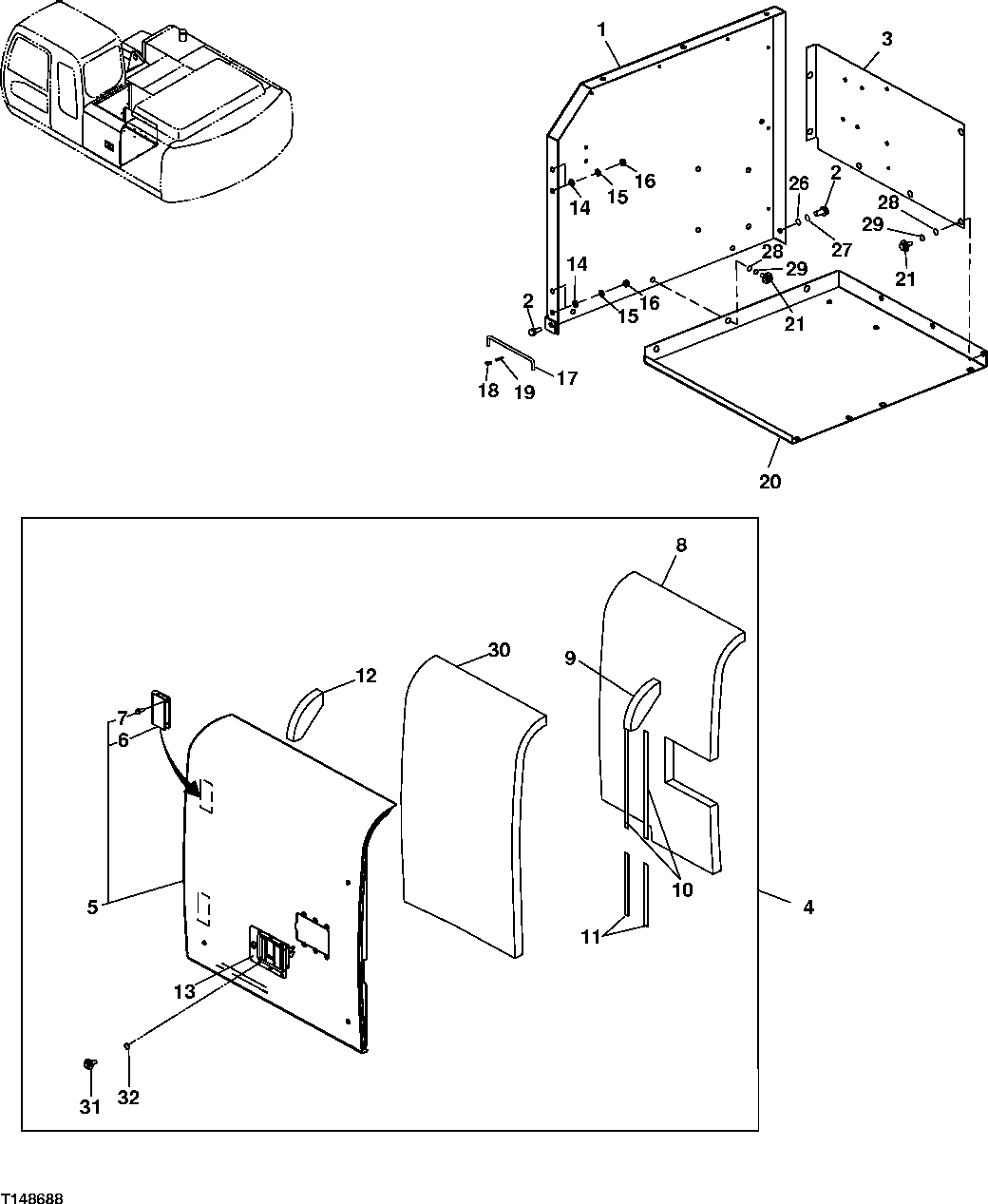

Запчасти John Deere 30CLC 152 - COVER 1910 HOOD OR ENGINE ENCLOSURE

1

7035539

Cover

(SUB FOR TH7035539)

1шт.

2

19M7662

Cap Screw

M10 X 30

2шт.

3

8083393

Cover

(SUB FOR TH8083393)

1шт.

4

DH700048J

Door

(SUB FOR THDH700048J)

1шт.

5

Door

( THDH500023J NOT AVAILABLE)

1шт.

6

Hinge

( TH3072015 NOT AVAILABLE)

2шт.

7

19M7402

Cap Screw

M10 X 25

4шт.

8

4436648

Isolator

(SUB FOR TH4436648)

1шт.

9

DH400331

Isolator

(SUB FOR THDH400331)

1шт.

10

DH400348

Isolator

(SUB FOR THDH400348)

2шт.

11

DH400349

Isolator

(SUB FOR THDH400349)

2шт.

12

DH400332

Isolator

(SUB FOR THDH400332)

1шт.

13

DH400030

Latch

(SUB FOR THDH400030)

1шт.

14

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

15

12M7066

Lock Washer

10 mm

4шт.

16

14M7274

Nut

M10

4шт.

17

4341788

Rod

(SUB FOR AT213884 OR 4341788)

1шт.

18

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

19

H132922

Cotter Pin

1шт.

20

DH400332

Isolator

(SUB FOR THDH400332)

1шт.

21

19M7662

Cap Screw

M10 X 30

6шт.

26

12M7066

Lock Washer

10 mm

2шт.

27

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

28

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

29

24M7346

Washer

11 X 20 X 2 mm

6шт.

30

4438027

Isolator

(SUB FOR TH4438027)

1шт.

31

M63200

Rivet

4.775 mm (3/16")

6шт.

32

24M7138

Washer

5.300 X 15 X 1 mm

6шт.
