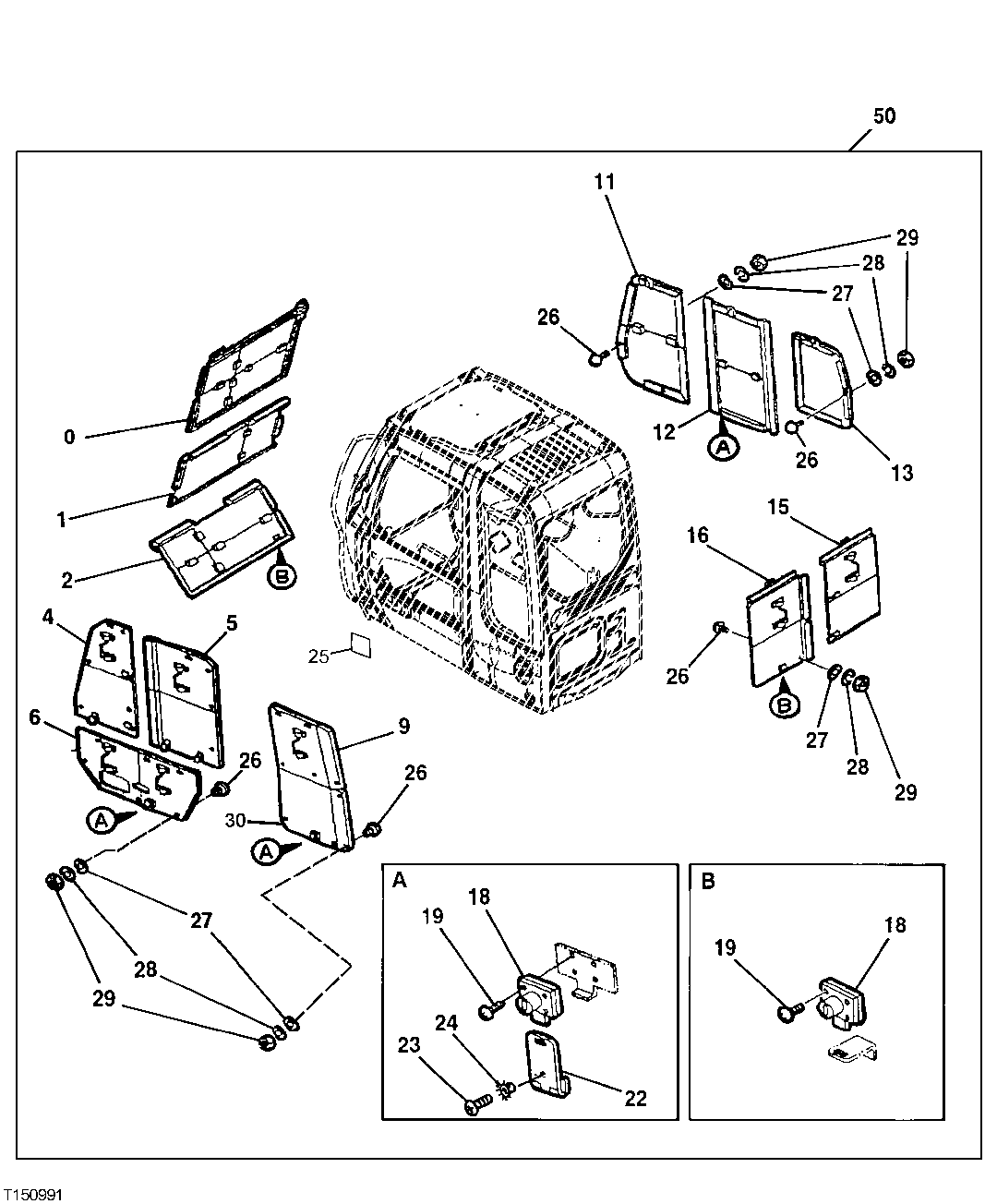

Запчасти John Deere 30CLC 137 - WINDOW GUARDS 1810 OPERATOR ENCLOSURE

0

AP38748

Cover

1шт.

1

AP38749

Cover

1шт.

2

AP38750

Cover

1шт.

4

7041828

Cover

(SUB FOR AP38751)

1шт.

5

AP38752

Cover

1шт.

6

AP38753

Cover

1шт.

9

AP38754

Cover

1шт.

11

AP38756

Cover

1шт.

12

AP38757

Cover

1шт.

13

8086966

Cover

(SUB FOR AP38758)

1шт.

15

AP38760

Cover

1шт.

16

AP38759

Cover

1шт.

18

4361601

Lock

(SUB FOR AT176636)

5шт.

18A

AT194969

Key

(H800) Not Illustrated (SUB FOR AT147803)

1шт.

19

21M7022

Screw

M5 X 20

20шт.

12M7064

Lock Washer

5 mm

20шт.

22

TH108983

Hinge

3шт.

23

21M7249

Screw

M5 X 10

6шт.

24

T205218

Washer

(SUB FOR TH111908, 4107762)

6шт.

25

T188737

Label

1шт.

26

9738682

Bumper

(SUB FOR AT155189)

33шт.

27

24M7027

Washer

5.300 X 10 X 1 mm

33шт.

28

12M7064

Lock Washer

5 mm

33шт.

29

14M7297

Nut

M5

33шт.

30

AP38755

Cover

1шт.

50

Field Installation Kit

(WHOLEGOODS) (VANDAL PR OTECTION) ( AP38763 NLA)

1шт.
