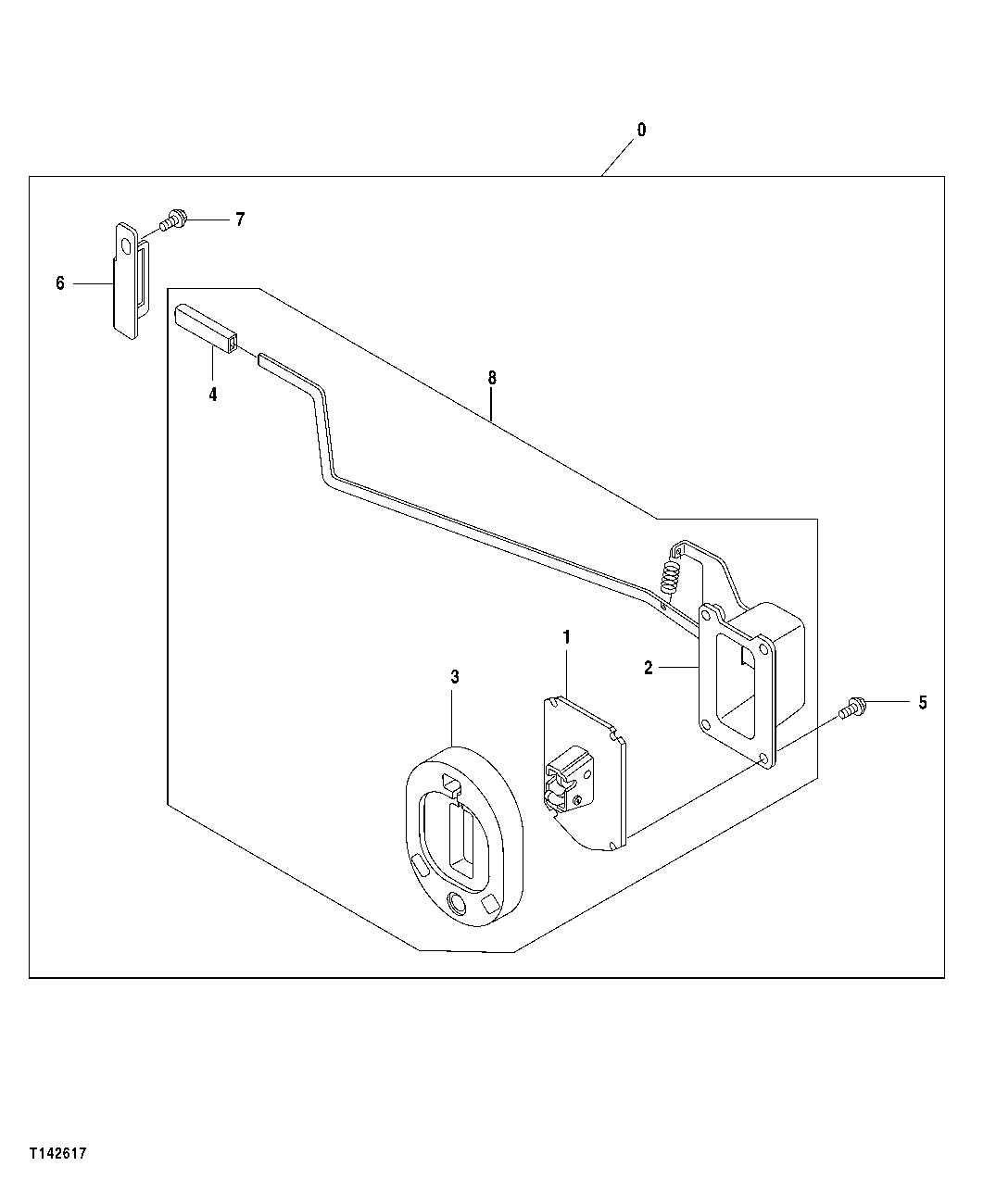

Запчасти John Deere 30CLC 128 - CAB COMPONENTS (DOOR LATCH) 1810 OPERATOR ENCLOSURE

0

9202944

Cab

Contains All Items On This Page - A dditional Components Listed On Separ ate Pages SUB FOR 4474296 OR 4602549

1шт.

1

4456245

Catch

ALSO ORDER 4456246, 4456247, 4089012

1шт.

2

4456246

Case

SUB FOR TH4456246

1шт.

3

4456247

Stop

SUB FOR TH4456247

1шт.

4

4089012

Cap

SUB FOR TH101184

4шт.

5

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

6

4456248

Stop

SUB FOR TH4456248

1шт.

7

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

8

Catch

4456244 NLA

1шт.
