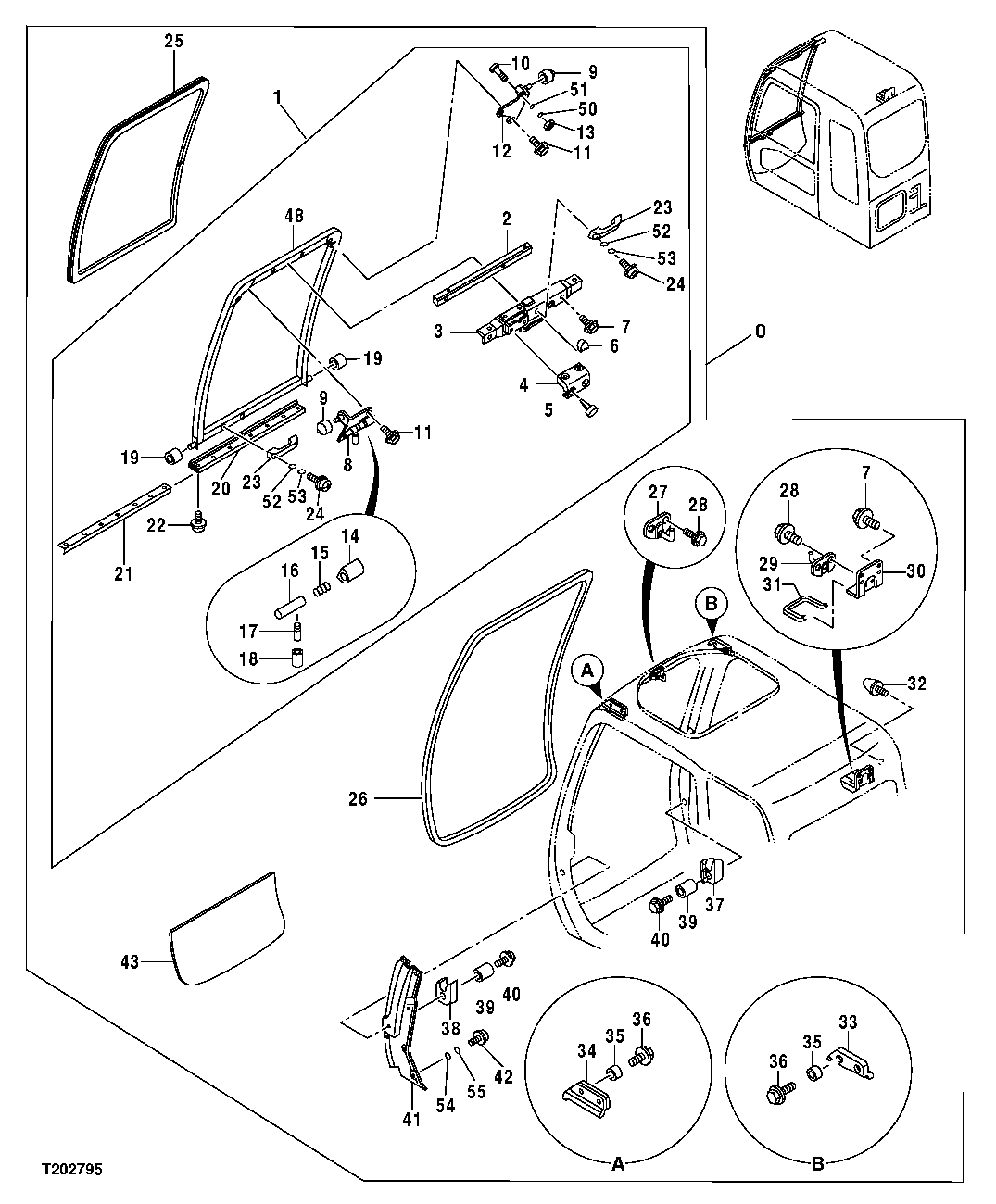

Запчасти John Deere 30CLC 124 - CAB COMPONENTS 1810 OPERATOR ENCLOSURE

0

9202944

Cab

(SUB FOR 4474296 OR 4602549)(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENT S LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

Window

( 4624730 NLA) (SUB 4637257 ) (ALSO ORDER 4448306 AND 4602562 ) (SUB FOR 4453689, TH4453689)

1шт.

4637257

Window

1шт.

2

4456218

Weld Nut

(SUB FOR TH4456218)

1шт.

3

4456219

Lock

(SUB FOR TH4456219)

1шт.

4

4456220

Cover

(SUB FOR TH4456220)

1шт.

5

4456221

Clip

(SUB FOR TH4456221)

4шт.

6

4456222

Cover

(SUB FOR TH4456222)

1шт.

7

4372225

Screw With Washer

(SUB FOR AT214311)

4шт.

8

Bracket

( 4456223 NLA) (SUB 4633401 ) (ALSO ORDER 4633400 ) (SUB FOR TH4456223)

1шт.

4633401

Bracket

1шт.

9

4456224

Roller

(SUB FOR TH4456224)

2шт.

10

4456225

Screw

(SUB FOR TH4456225)

1шт.

11

Screw With Washer

( AT214305 OR 4372219 NLA)

4шт.

19M7662

Cap Screw

M10 X 30 (SUB FOR J901030)

4шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J922010)

4шт.

12

Bracket

( 4456226 NLA) (ORDER 4633400 A ND 4633401 ) (SUB FOR TH4456226)

1шт.

4633400

Bracket

1шт.

13

19M7361

Cap Screw

M12 X 50

1шт.

14

4456227

Cover

(SUB FOR TH4456227)

1шт.

15

494918

Spring

(SUB FOR TH106783)

1шт.

16

4403327

Universal Driveshaft

(SUB FOR AT214104, 4369599)

1шт.

17

4295480

Lever

(SUB FOR AT156993)

1шт.

18

4295876

Cover

(SUB FOR AT156994)

1шт.

19

4204558

Roller

(SUB FOR TH108638)

2шт.

20

4456228

Isolator

(SUB FOR TH4456228)

1шт.

21

4456229

Plate

(SUB FOR TH4456229)

1шт.

22

4372214

Screw

(SUB FOR AT214301)

4шт.

23

4204579

Handle

(SUB FOR TH108661)

2шт.

24

19M8425

Cap Screw

M6 X 16

4шт.

25

4448306

Windowpane

Bronze (SUB FOR 4474531)

1шт.

4602562

Windowpane

Green

1шт.

26

4456230

Isolator

(SUB FOR TH4456230)

1шт.

27

4456231

Striker

(SUB FOR TH4456231)

1шт.

28

4372210

Screw With Washer

(SUB FOR AT214297)

4шт.

29

4456232

Striker

(SUB FOR TH4456232)

1шт.

30

4456233

Bracket

(SUB FOR TH4456233)

1шт.

31

4456234

Isolator

(SUB FOR TH4456234)

1шт.

32

4204586

Bumper

(SUB FOR TH108668)

1шт.

33

4456235

Isolator

(SUB FOR TH4456235)

1шт.

34

4456236

Isolator

(SUB FOR TH4456236)

1шт.

35

4456237

Bushing

(SUB FOR TH4456237)

4шт.

36

4456238

Bolt

(SUB FOR TH4456238)

4шт.

37

4456239

Stop

(SUB FOR TH4456239)

1шт.

38

4456240

Stop

(SUB FOR TH4456240)

1шт.

39

4456241

Bushing

(SUB FOR TH4456241)

2шт.

40

4456242

Bolt

(SUB FOR TH4456242)

2шт.

41

4474532

Cover

1шт.

42

21M7246

Screw

M6 X 16

6шт.

43

Windowpane

Bronze (SUB FOR TH4448307 ) (SUB 4602563R ( 4448307 NLA))

1шт.

4602563R

Windowpane

Green (SUB FOR 4602563)

1шт.

48

4456217

Frame

1шт.

50

12M7068

Lock Washer

14 mm

1шт.

51

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

52

12M7006

Lock Washer

6 mm

4шт.

53

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

54

12M7006

Lock Washer

6 mm

6шт.

55

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.
