Запчасти John Deere 30CLC 116 - SWING BEARING 1740 FRAME INSTALLATION

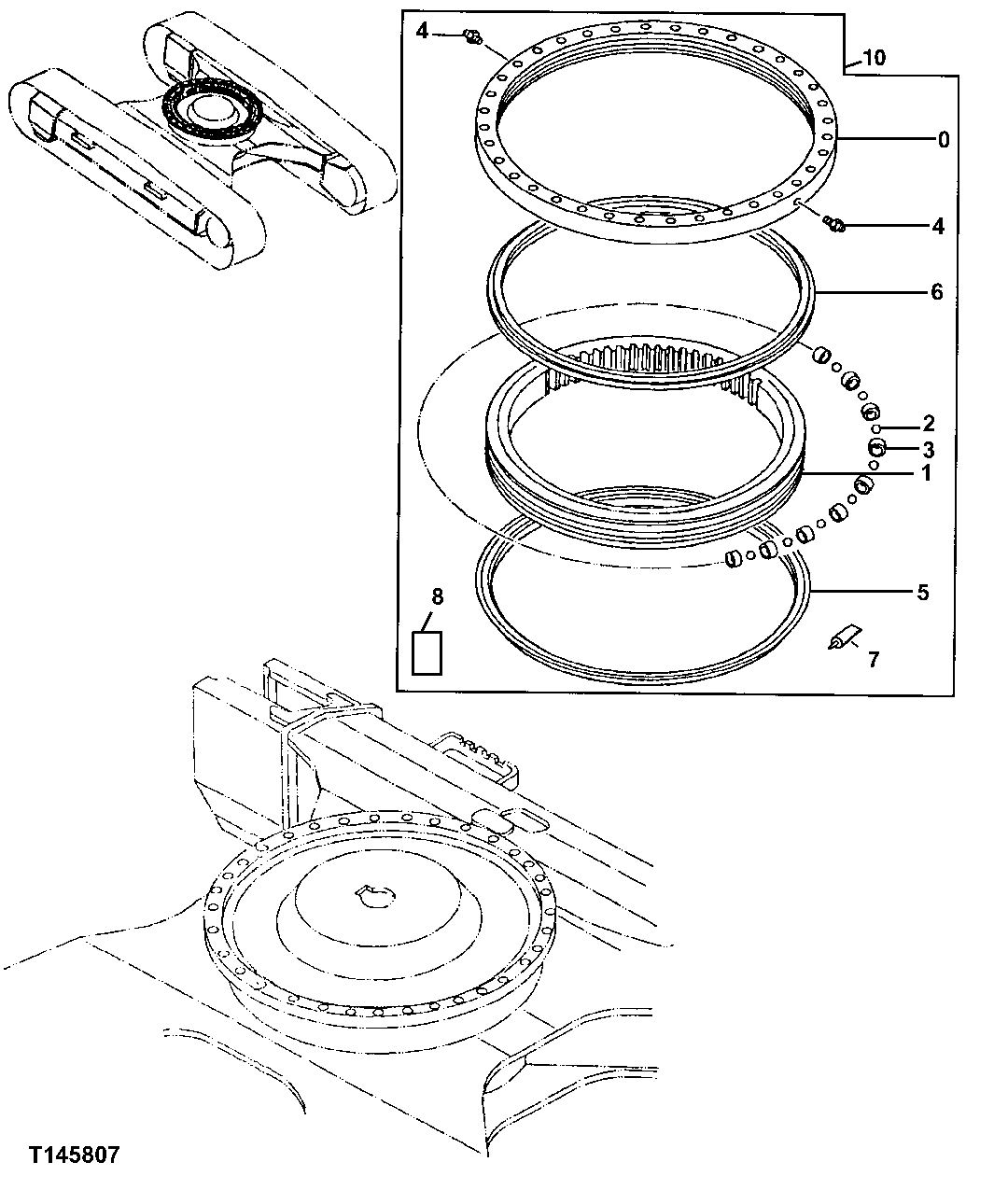

Схема запчастей John Deere 30CLC - 116 - SWING BEARING 1740 FRAME INSTALLATION

Артикул

Название

Примечание

Количество

0

Bearing Race

1шт.

1

Bearing Race

1шт.

2

4428919

Ball

SUB FOR AT174888

90шт.

3

4127708

Spacer

SUB FOR TH104232

79шт.

4

TH100074

Lubrication Fitting

2шт.

5

T203958

Seal

4631753 NLA, SUB FOR (1) 4634010; A LSO ORDER PM37391 AND AT66866; ALSO O RDER T216880 Installation Instruction

1шт.

6

T203958

Seal

4631753 NLA, SUB FOR (1) 4634010; A LSO ORDER PM37391 AND AT66866; ALSO O RDER T216880 Installation Instruction

1шт.

7

TY21517

Adhesive

1шт.

8

AT66866

Fluid

1шт.

10

AT190770

Roller

NLA; ORDER 9154037EX

1шт.

9154037EX

Swing Bearing

REMAN FOR AT190770; SUB FOR AT178566

1шт.

Выбрано товаров: 11
