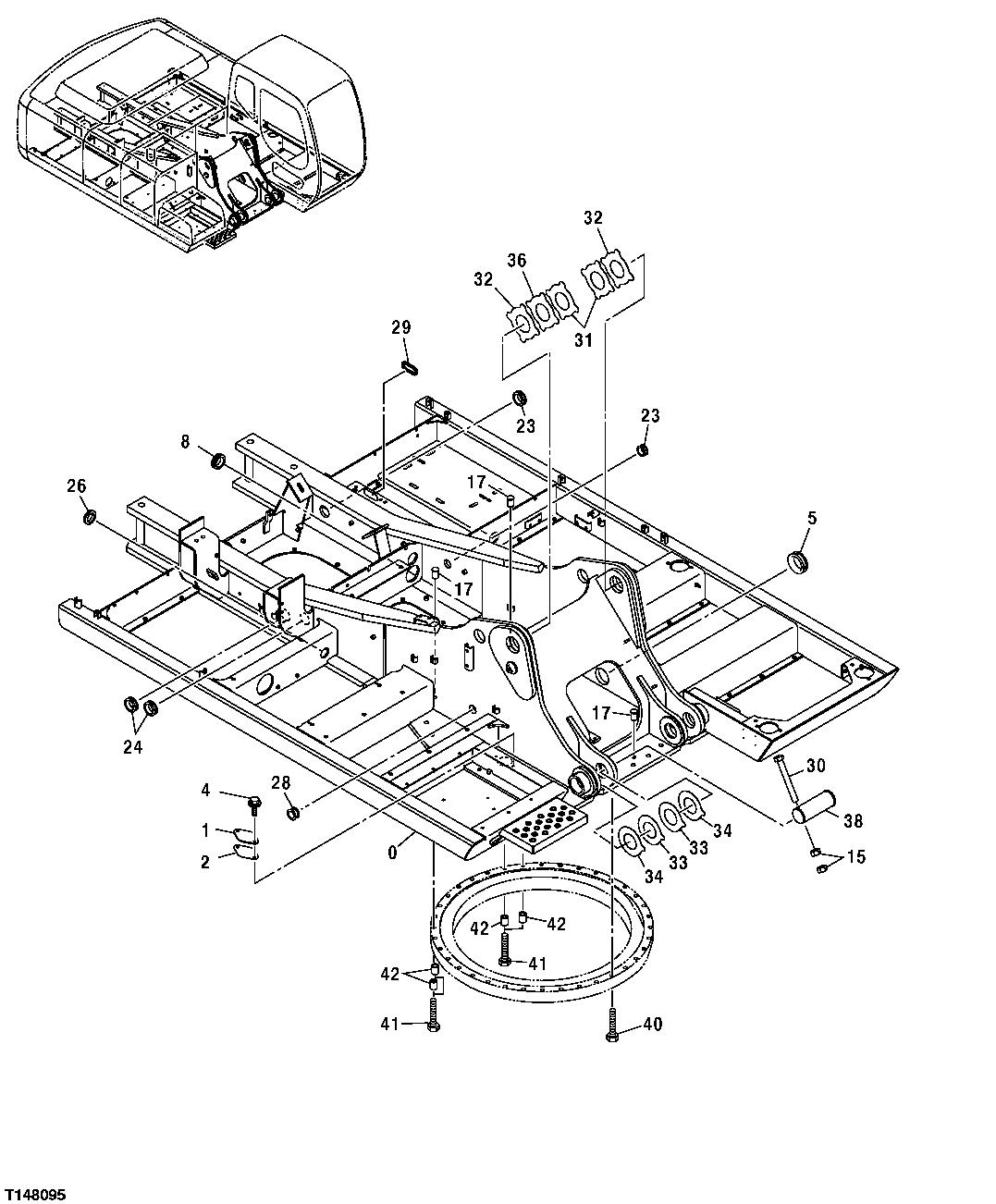

Запчасти John Deere 30CLC 113 - MAIN FRAME 1740 FRAME INSTALLATION

0

DH500011

Frame

(SUB FOR THDH500011)

1шт.

1

4255799

Cover

(SUB FOR AT154929)

1шт.

2

4161735

Gasket

(SUB FOR AT130379)

1шт.

4

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

5

4191977

Grommet

(SUB FOR TH109399)

1шт.

8

4208279

Grommet

(SUB FOR AT131854)

1шт.

15

14M7277

Nut

M20

4шт.

17

4355382

Pin Fastener

22 X 32 mm (0.866" X 1. 260") (SUB FOR AT217769)

3шт.

23

4200176

Grommet

1шт.

24

4255567

Bushing

(SUB FOR 4255530)

3шт.

26

4509404

Grommet

1шт.

28

4257181

Grommet

1шт.

29

4430658

Bushing

1шт.

30

4435126

Pin Fastener

2шт.

31

4445638

Thrust Washer

(1.0MM)

ARшт.

32

4445639

Thrust Washer

(2.0MM)

ARшт.

33

4444284

Thrust Washer

(1.0MM)

ARшт.

34

4444285

Thrust Washer

(2.0MM)

ARшт.

36

4460372

Thrust Washer

(1.5MM) (SUB FOR TH4460372)

ARшт.

38

AT217788

Pin Fastener

2шт.

40

J922203R

Cap Screw

(SUB FOR J922203)

30шт.

41

J922212

Bolt

4шт.

42

4381637

Spacer

23.500 X 44 X 55 mm (0.925" X 1. 732" X 2.165") (SUB FOR AT217991)

4шт.
