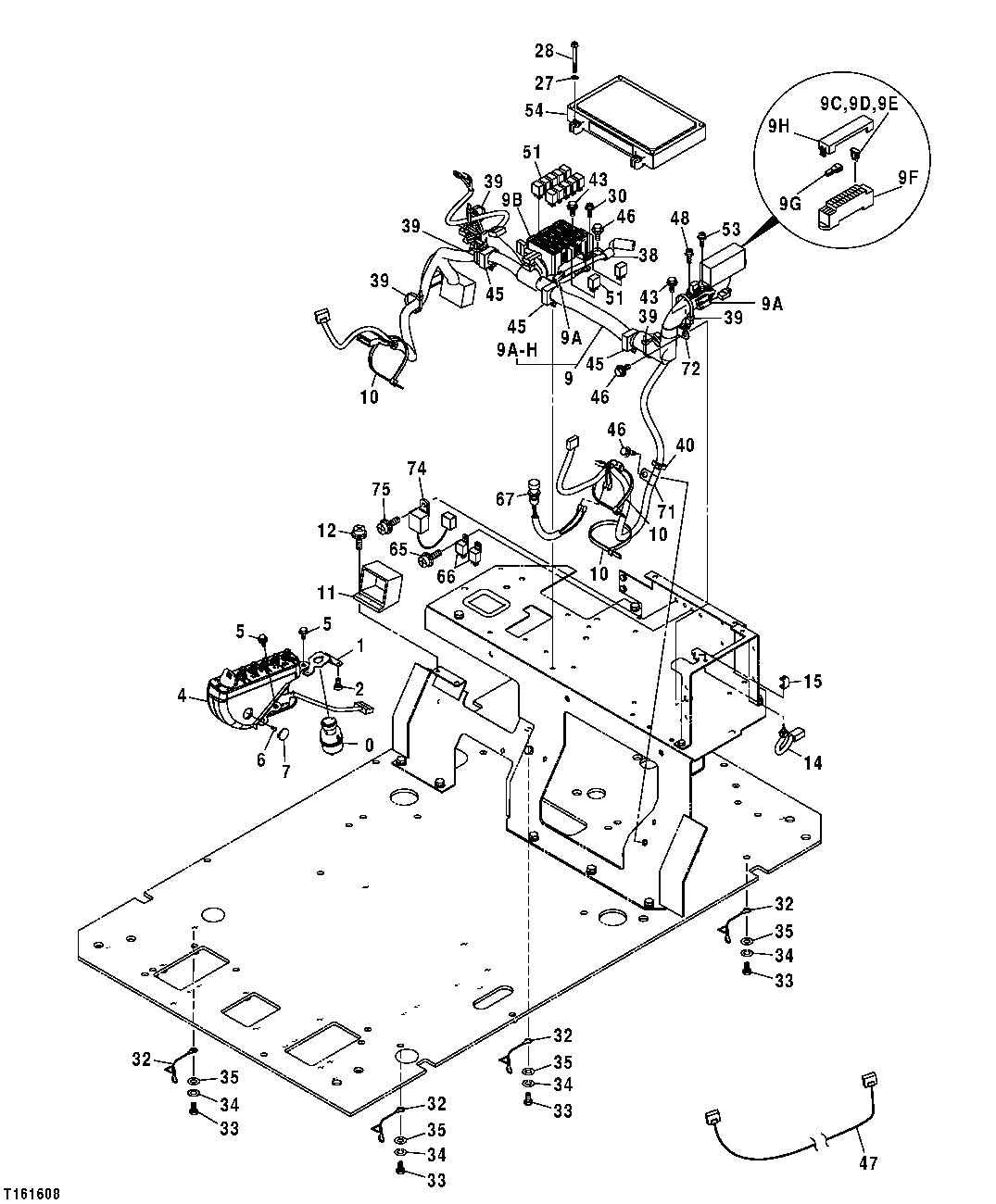

Запчасти John Deere 30CLC 100 - ELECTRICAL COMPONENTS (CAB) 1674 WIRING HARNESS AND SWITCHES

32

4281293

Ground Cable

SUB FOR AT154961

4шт.

33

19M8324

Cap Screw

M10 X 16

4шт.

34

12M7066

Lock Washer

10 mm

4шт.

35

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

38

R73384

Clamp

SUB FOR TH108597 OR 4190253

1шт.

39

H77698

Tie Band

5шт.

40

H77698

Tie Band

1шт.

43

19M7932

Cap Screw

M8 X 16

2шт.

Washer

12M7065 NLA

2шт.

45

4449019

Clip

SUB FOR TH4449019

3шт.

46

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

47

2048203

Wiring Harness

2.75M EXTENSION SUB FOR TH2048203

1шт.

2048184

Wiring Harness

4.6M EXTENSION SUB FOR TH2048184

1шт.

48

Screw

SUB FOR AT156974

2шт.

21M7394

Screw

M3 X 10

2шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

2шт.

12H233

Lock Washer

1/8"

2шт.

51

4436534

Relay

SUB FOR TH4436534

11шт.

53

Screw With Washer

J460620 NLA SUB FOR AT200012

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

54

4487162

Vehicle Controller

SUB FOR 4449505

1шт.

9226761

Vehicle Controller

1шт.

65

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

66

4414207

Relay

SUB FOR AT186647

2шт.

67

4384758

Switch

Travel Alarm SUB FOR AT215573

1шт.

71

4190275

Clamp

SUB FOR TH108598

1шт.

72

AT121321

Hose Clamp

1шт.

74

AT195741

Relay

WITH RELAY, ALTERNATOR

1шт.

75

Cap Screw

( THM460616 NLA)

1шт.
