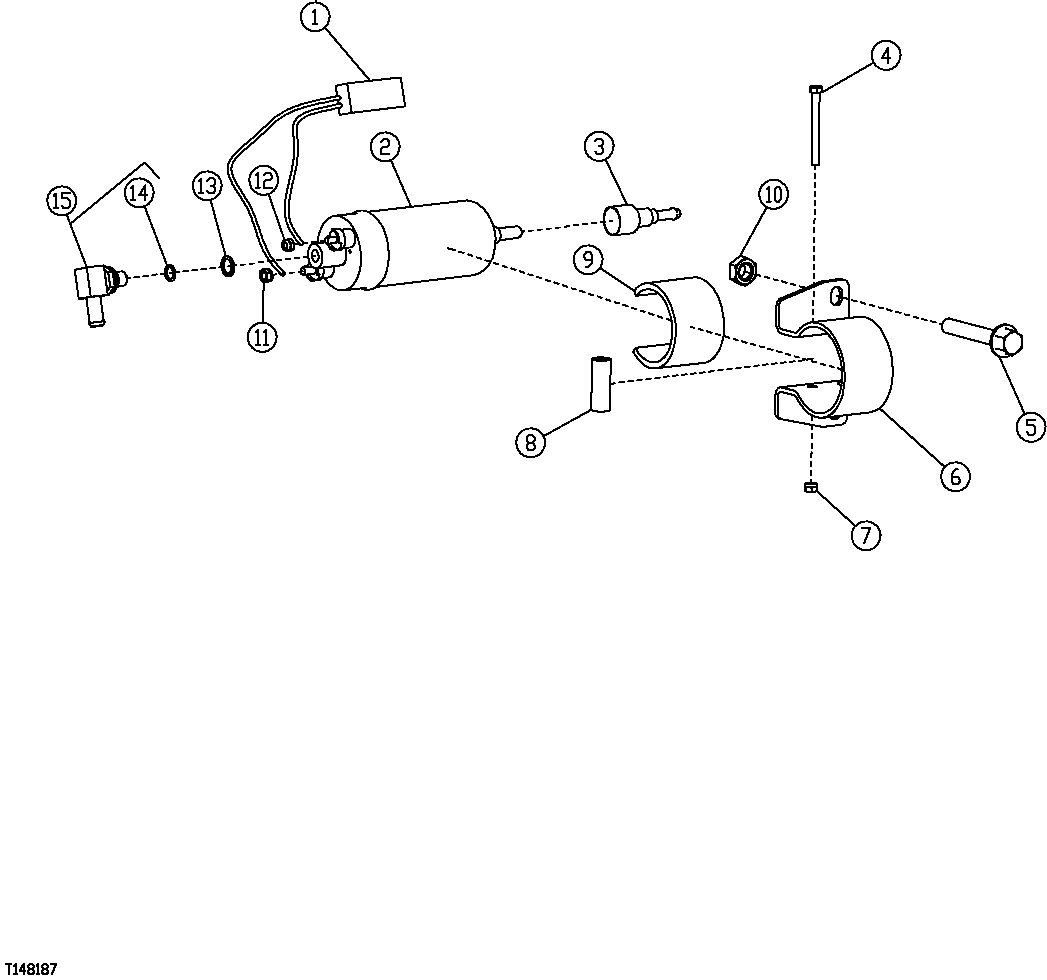

Запчасти John Deere 30CLC 89 - FUEL TRANSFER PUMP, WIRING HARNESS AND FITTINGS 0560 EXTERNAL FUEL SUPPLY SYSTEMS

1

RE515326

Wiring Harness

1шт.

2

RE515718

Pump

1шт.

3

RE515341

Adapter Fitting

(ORDER RE518804 AND RE518732)

1шт.

4

19M7986

Cap Screw

M5 X 50

1шт.

5

19M7139

Cap Screw

M8 X 20

2шт.

6

R515460

Filter Head

1шт.

7

14M7265

Lock Nut

M5

1шт.

8

R515736

Spacer

1шт.

9

R515461

Tool Holder

1шт.

10

Lock Nut

2шт.

11

14M7265

Lock Nut

M5

1шт.

12

14M7264

Lock Nut

M4

1шт.

13

R62107

Washer

1шт.

14

51M7039

O-Ring

8.100 X 1.600 mm

1шт.

15

AT196563

Adapter Fitting

1шт.
